Item #1005 806 120
Model #52139
UL Model #EF200S(V)-52
USE AND CARE GUIDE

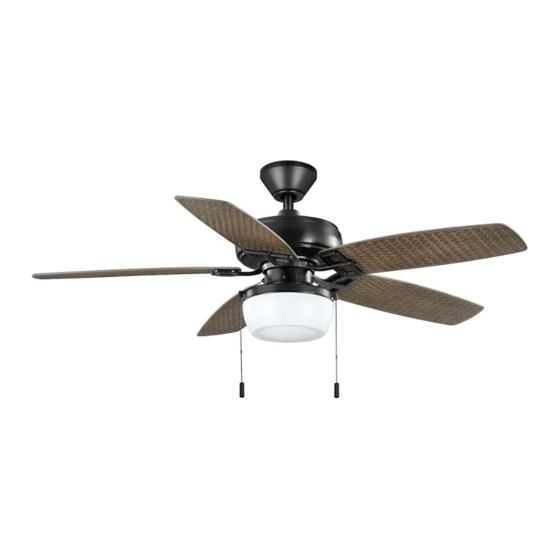

BAYWOOD 52-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m. Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Related Manuals for HAMPTON BAY 52139
Summary of Contents for HAMPTON BAY 52139
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..............2 Assembly ................7 Safety Information ............... 2 Operation ................12 Warranty ................3 Care and Cleaning ............. 13 Pre-Installation ..............3 Troubleshooting ..............13 Installation ................6 Safety Information READ AND SAVE THESE INSTRUCTIONS. WARNING: To reduce the risk of personal injury, do not bend the blade brackets (also referred to as flanges) during assembly or after installation. -
Page 3: Warranty
A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Hampton Bay hereby disclaims any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by law. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Part Description Quantity Pull Chain Extensions Locking Pin Plastic Wire Connector Rubber Plug Hanger Pin Screws for Mounting Blades...
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Slide-on mounting bracket Fan-motor assembly (inside canopy) Light kit fitter assembly Canopy Shatter resistant plastic shade Canopy bottom cover Blade Ball/downrod assembly Blade bracket Coupler cover LED bulb, 8.5-watts IMPORTANT: This product and/or components are governed by one or more of the following U.S.
-
Page 6: Installation
Installation MOUNTING OPTIONS NOTE: You may need a longer downrod to maintain WARNING: To reduce the risk of fire, electric shock proper blade clearance when installing on a steep, sloped or personal injury, mount to outlet box marked ceiling. The maximum angle allowable is 30° away from “Acceptable for fan support of 35 lbs. -
Page 7: Assembly
Assembly - Standard Ceiling Mount Preparing for mounting Routing the wires □ □ Remove the canopy bottom cover (C) from the canopy (B) by Route the wires exiting the top of the fan motor assembly (F) turning the bottom cover counterclockwise until it unlocks. through the center of the canopy bottom cover (C). - Page 8 Assembly - Hanging the Fan Attaching the fan to the electrical WARNING: To reduce the risk of fire, electric shock or personal injury, mount to outlet box marked “Acceptable for fan support of 35 lbs. (15.9 Kg) or less”, and use screws provided with the outlet box.
- Page 9 Assembly - Hanging the Fan (continued) Making the electrical connection Wrapping the extra wire WARNING: Remove the rubber motor stops on the bottom of the NOTE: Follow this step ONLY if you did not cut the extra length off fan before installing the blades or testing the motor. from the wires coming from the ceiling fan.
- Page 10 Assembly - Hanging the Fan (continued) Mounting the fan WARNING: When using the standard ball/downrod mounting, the tab in the ring at the bottom of the mounting bracket must rest in the groove of the hanger ball. Failure to properly seat the tab in the groove could cause damage to the wiring.
- Page 11 Assembly - Attaching the Fan Blades (continued) Attaching the blade brackets IMPORTANT: Insert the rubber plug (EE) to prevent water from entering the switch housing and to reduce the risk of fire, electric shock, or other personal injury. □ Remove and save the rubber plug (EE) from the switch cup (HH) to allow screw driver access when attaching blade arms.
-
Page 12: Operation
Assembly - Attaching the Light Kit Installing the bulbs and attaching the shatter resistant plastic bowl WARNING: Allow the shatter resistant plastic bowl (H) to cool completely before removing. CAUTION: Make sure the power is off before attaching or removing the shatter resistant plastic bowl (H). CAUTION: Over lamping the fan will result in the fan lights shutting down until the proper wattage bulbs are installed. -
Page 13: Care And Cleaning
Care and Cleaning WARNING: Make sure the power is off before cleaning your fan. □ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling. □... - Page 14 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m. Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
