Item #1005 819 972
Model #52151
UL Model #EF600P-52
USE AND CARE GUIDE

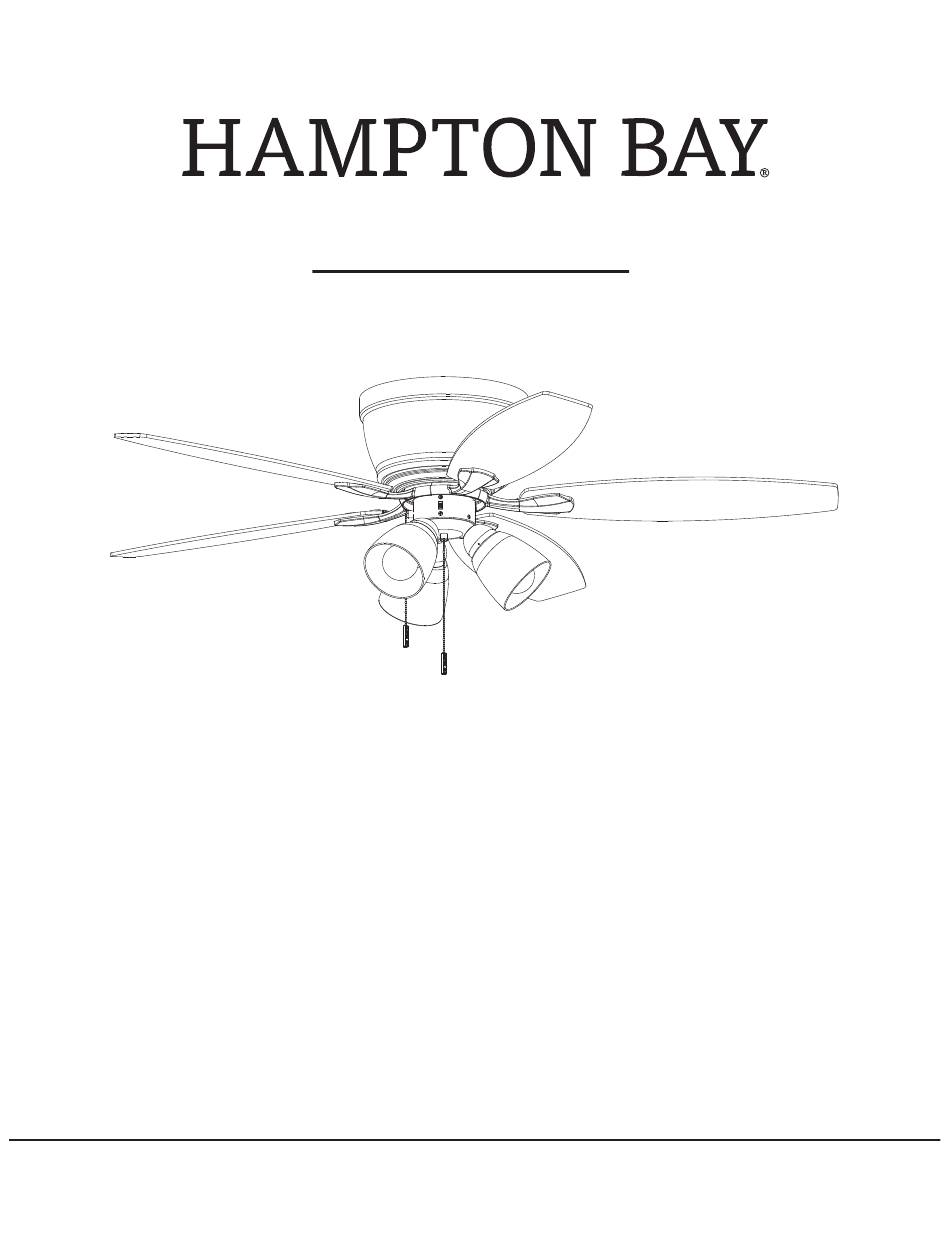

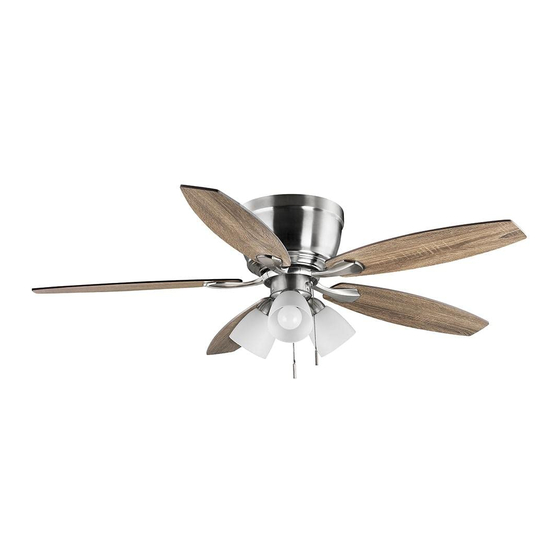

SIDLOW 52-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Related Manuals for HAMPTON BAY SIDLOW 52151
Summary of Contents for HAMPTON BAY SIDLOW 52151
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..............2 Assembly ................7 Safety Information ............... 2 Operation ................11 Warranty ................3 Care and Cleaning ............. 12 Pre-Installation ..............3 Troubleshooting ..............12 Installation ................6 Safety Information READ AND SAVE THESE INSTRUCTIONS 1. -
Page 3: Warranty
A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Hampton Bay hereby disclaims any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by law. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Pull chain Plastic wire connector...
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Mounting plate Blade Fan-motor assembly Blade bracket (flange), screws pre-installed Motor housing LED bulbs (8.5-Watt) Light kit fitter assembly Shatter resistant plastic shade IMPORTANT: This product and/or components are governed by one or more of the following U.S. Patents: 5,947,436;...
-
Page 6: Installation
Installation MOUNTING OPTIONS Hanger Bar WARNING: To reduce the risk of fire, electric shock or personal injury, mount to outlet box marked “Acceptable for fan support of 35 lbs (15.9 kg) or less”, and use screws provided with the outlet box. An outlet box commonly used for the support of lighting fixtures may not be acceptable for fan support and may need to be replaced. -
Page 7: Assembly
Assembly - Hanging the Fan Attaching the fan to the electrical Hanging the fan-motor assembly □ Carefully lift the fan-motor assembly (B) and engage the NOTE: For better fan performance, make sure the slot in the motor bracket on the top of the fan- motor mounting plate is level. - Page 8 Assembly - Hanging the Fan (continued) Making the electrical connection Completing the fan assembly WARNING: Each plastic wire connector (BB) supplied with this □ Remove the two screws (YY) on two diagonal sides from fan is designed to accept up to one 12-gauge house wire and the top of the mounting plate (A) and loosen the other two two wires from the fan.
- Page 9 Assembly - Attaching the Blade Brackets and Fan Blades Fastening the blade brackets to the motor WARNING: Remove the rubber motor stops on the bottom of the fan before installing the blades or testing the motor. NOTE: Your fan features revolutionary advancements for quick and easy blade installation, including an alignment post and captive blade bracket screws.
- Page 10 Assembly - Attaching the Light Kit Fitter Assembly Attaching the light kit fitter assembly CAUTION: To reduce the risk of electric shock, disconnect the electrical supply circuit to the fan before installing the light kit. □ Remove the three screws (QQ) from the light kit fitter assembly (D).
-
Page 11: Operation
Operation Turn on the power and check the operation of the fan. The pull chain Warm weather controls the fan speeds as follows: 1 pull - High, 2 pulls - Medium, 3 pulls - Low, 4 pulls - Off The appropriate speed settings for warm or cool weather depends on factors such as the room size, ceiling height, and number of fans. -
Page 12: Care And Cleaning
Care and Cleaning WARNING: Make sure the power is off before cleaning your fan. □ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling. □... - Page 13 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
