Item #xxxx xxx xxxx, xxxx xxx xxx, xxxx xxx xxx
Model #52196, 52197, 52198
UL Model #52-SPAR
USE AND CARE GUIDE

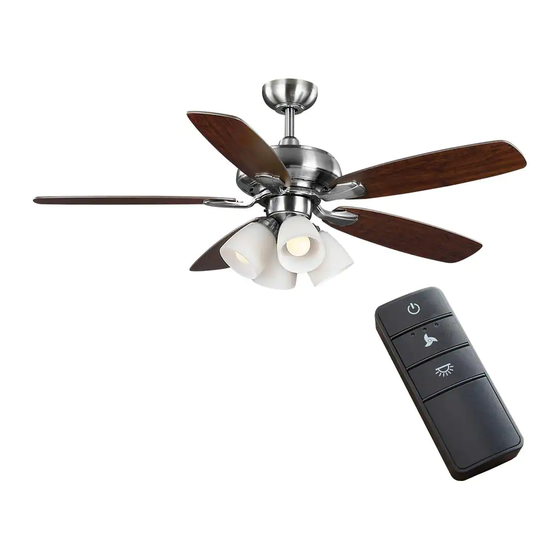

HOLLIS 52-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-855-HD-HAMPTON
HAMPTONBAY.COM
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
"Product Overview" section.
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Related Manuals for HAMPTON BAY HOLLIS 52196
Summary of Contents for HAMPTON BAY HOLLIS 52196
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..............2 Assembly ................7 Safety Information ............... 2 Operation ................15 Warranty ................3 Care and Cleaning ............. 16 Pre-Installation ..............3 Troubleshooting ..............16 Installation ................6 Safety Information To reduce the risk of electric shock, ensure the electricity has been WARNING: To reduce the risk of personal injury, turned off at the circuit breaker or fuse box before you begin. -
Page 3: Warranty
“wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Hampton Bay hereby disclaims any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by law. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Part Description Quantity Plastic wire connector Hanger pin Extra blade bracket screw Locking pin...
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Slide-on mounting bracket Light kit fitter assembly (inside canopy) Glass shade Ball/downrod assembly LED bulbs Canopy Receiver Decorative motor collar cover Remote control Fan-motor assembly Extension lead wire Blade Battery Blade bracket (with pre-installed screws) IMPORTANT: This product and/or components are governed by one or more of the following U.S.
-
Page 6: Installation
Installation MOUNTING OPTIONS NOTE: You may need a longer downrod to maintain WARNING: To reduce the risk of fire, electric shock proper blade clearance when installing on a steep, sloped or personal injury, mount to an outlet box marked ceiling. The maximum angle allowable is 20° away from “Acceptable for fan support of 35 lbs. - Page 7 Assembly - Standard Ceiling Mount Preparing for standard mounting Routing the wires □ □ Remove the canopy bottom cover (OO) from the canopy (C) by Route the wires exiting the top of the fan motor assembly (E) turning the bottom cover counterclockwise until it unlocks. through the decorative motor collar cover (D) and then the □...
- Page 8 Assembly - Hanging the Fan Attaching the fan to the electrical box WARNING: To reduce the risk of fire, electric shock or personal injury, mount to an outlet box marked “Acceptable for fan support of 35 lbs. (15.9 kg) or less,” and use the screws provided with the outlet box.
-
Page 9: Assembly
Assembly - Hanging the Fan (continued) Setting the code on the remote control Installing the receiver and receiver WARNING: To reduce the risk of fire or electric shock, NOTE: The frequencies on your receiver and remote remember to disconnect power. The electrical wiring must control have been preset at the factory. - Page 10 Assembly - Hanging the Fan (continued) Wiring the receiver to the Wiring the fan to the receiver household wiring WARNING: To avoid possible electrical shock, turn the NOTE: The fan comes with 12 in. lead wires for use with the provided 6 in.
- Page 11 Assembly - Hanging the Fan (continued) Mounting the fan-motor assembly WARNING: When using the standard ball/downrod mounting, the tab in the ring at the bottom of the mounting bracket must rest in the groove of the hanger ball. Failure to properly seat the tab in the groove could cause damage to the wiring.
- Page 12 Assembly - Attaching the lights Installing the glass shades Attaching the light kit fitter assembly and bulbs CAUTION: To reduce the risk of electric shock, disconnect WARNING: Allow the glass shade to cool completely before the electrical supply circuit to the fan before installing the removing.
- Page 13 Operating Your Fan and Remote Control A. Warm weather Remote control - Your fan is equipped with a remote control to operate the speed and lights of your new ceiling fan. The speed setting for warm or cool weather depends on factors such as the room size, ceiling height, number of fans and so on.
-
Page 14: Care And Cleaning
Repeat for each blade. Any measurement deviation should be within 1/8 in. Run the fan for ten minutes. If the fan continues to wobble please contact Hampton Bay Customer Service and a balancing kit will be sent to you at no charge. - Page 15 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday 1-855-HD-HAMPTON HAMPTONBAY.COM...
