We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
USE AND CARE GUIDE

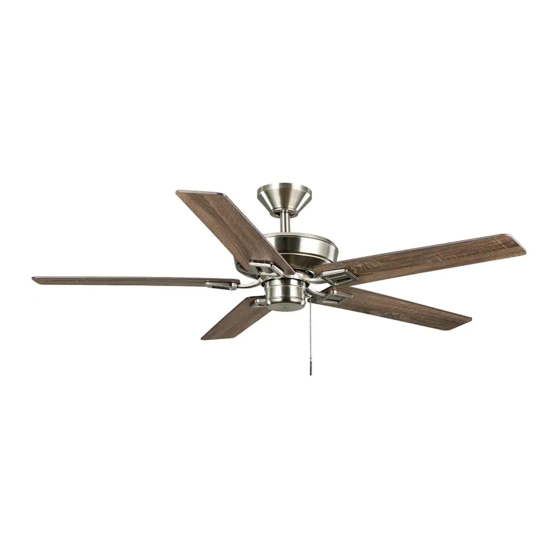

BAYFIELD 52-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
"Product Overview" section.
Thank you for choosing Hampton Bay!
THANK YOU
Item #xxxx xxx xxx
Model #52193, 52195, 52194
UL Model #EF200S(T)-52
Advertisement
Related Manuals for HAMPTON BAY BAYFIELD
Summary of Contents for HAMPTON BAY BAYFIELD
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..............2 Assembly ................7 Safety Information ............... 2 Operation ................12 Warranty ................3 Care and Cleaning ............. 13 Pre-Installation ..............3 Troubleshooting ..............13 Installation ................6 Safety Information READ AND SAVE THESE INSTRUCTIONS. WARNING: To reduce the risk of personal injury, do not bend the blade brackets (also referred to as All wiring must be in accordance with the National Electrical... -
Page 3: Warranty
“wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Hampton Bay hereby disclaims any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by law. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Pull chain Plastic wire connectors Hanger pin Locking pin Blade attachment screws...
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Slide-on mounting bracket Fan-motor assembly (inside canopy) Switch cup Canopy Blade Canopy bottom cover Blade bracket Ball/downrod assembly IMPORTANT: This product and/or components are governed by one or more of the following U.S. Patents: 5,947,436;...
-
Page 6: Installation
Installation MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock NOTE: You may need a longer downrod to maintain or personal injury, mount to outlet box marked proper blade clearance when installing on a steep, sloped “Acceptable for fan support of 35 lbs (15.9 kg) or less”, ceiling. -
Page 7: Assembly
Assembly - Standard Ceiling Mount Preparing for mounting Routing the wires □ □ Remove the canopy cover (C) from the canopy (B) by turning the Route the wires exiting the top of the fan motor (E), through bottom cover (C) counterclockwise until it unlocks. the canopy bottom cover (C). - Page 8 Assembly - Hanging the Fan Attaching the fan to the electrical WARNING: To reduce the risk of fire, electric shock or personal injury, mount to outlet box marked “Acceptable for fan support of 35 lbs (15.9 kg) or less”, and use screws provided with the outlet box.
- Page 9 Assembly - Hanging the Fan (continued) Making the electrical connection WARNING: Remove the rubber motor stops on the bottom of Outletbox in the ceiling the fan before installing the blades or testing the motor. IMPORTANT: Use the wire connecting nuts (BB) supplied with your fan.
- Page 10 Assembly - Hanging the Fan (continued) Wrapping the extra wire Mounting the fan-motor assembly NOTE: Follow this step ONLY if you did not cut the extra length off WARNING: When using the standard ball/downrod mounting, the from the wires coming from the ceiling fan. tab in the ring at the bottom of the mounting bracket must rest in the groove of the hanger ball.
- Page 11 Assembly - Attaching the Fan Blades Attaching the fan blades NOTE: Your fan blades are reversible. Select the blade side finish which best accentuates you decor. □ Attach a blade (G) to a blade bracket (H) using the screws (EE) provided. Please note that the rubber washers are pre-attached to the blade bracket (H).
-
Page 12: Operation
Operation Warm weather Turn on the power and check the operation of the fan. The pull chain controls the fan speeds as follows: 1 pull - High, 2 pulls - Medium, 3 pulls - Low, 4 pulls - Off The appropriate speed settings for warm or cool weather depends on factors such as the room size, ceiling height, and number of fans. -
Page 13: Care And Cleaning
Care and Cleaning WARNING: Make sure the power is off before cleaning your fan. □ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling. □... - Page 14 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
