Item #xxxx xxx xxx
Model #52133
UL model #54-FANE

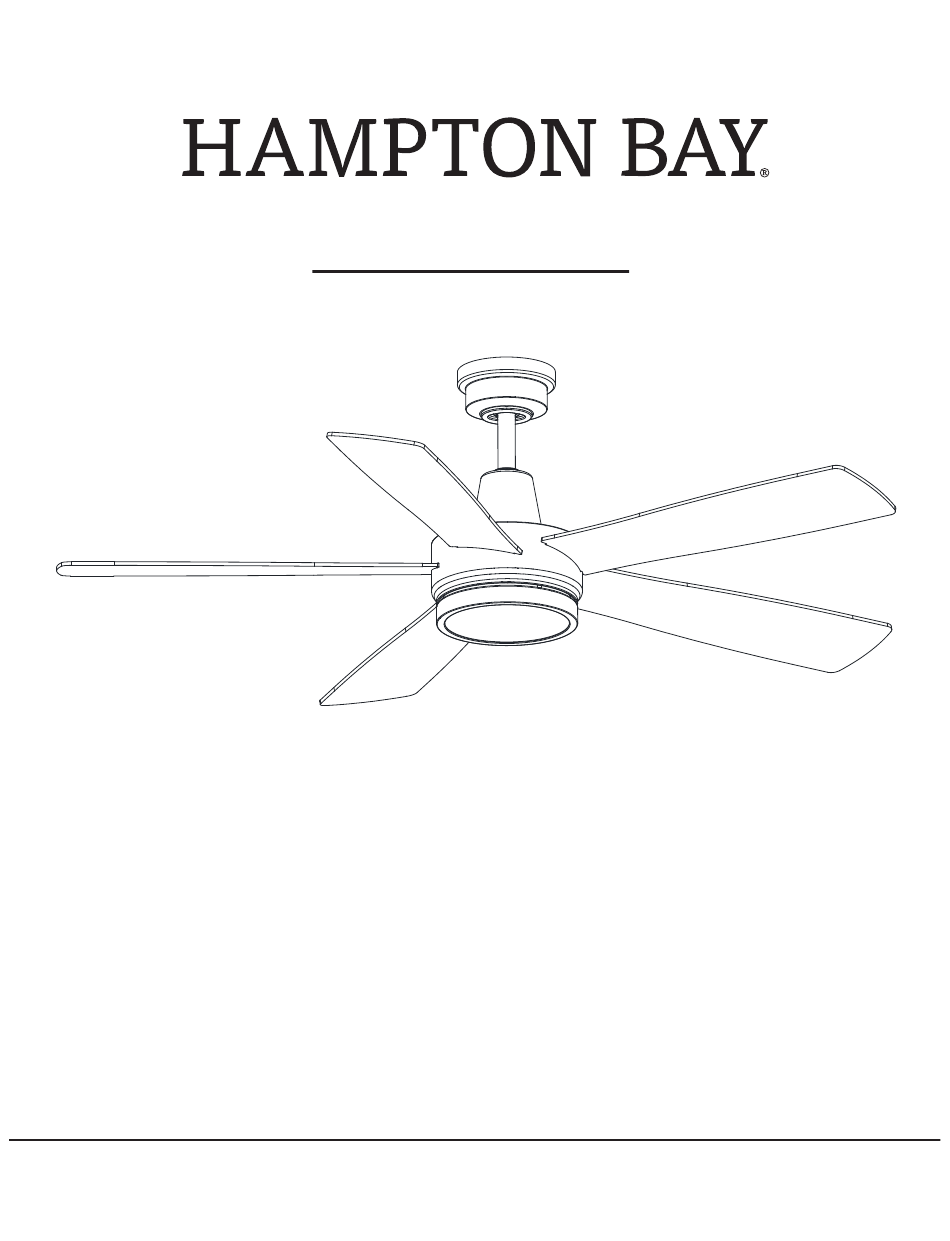

USE AND CARE GUIDE
FANELEE 54-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Related Manuals for HAMPTON BAY FANELEE
Summary of Contents for HAMPTON BAY FANELEE
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..............2 Assembly ................7 Safety Information ............... 2 Operation ................13 Warranty ................3 Care and Cleaning ............. 14 Pre-Installation ..............3 Troubleshooting ..............14 Installation ................6 Safety Information READ AND SAVE THESE INSTRUCTIONS 1. -
Page 3: Warranty
A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Hampton Bay hereby disclaims any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by law. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Blade screws Wire connecting nut...
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Slide-on mounting bracket (inside canopy) Blade Ball/downrod assembly Decorative shade Canopy Receiver Decorative motor collar Remote control Fan-motor assembly Lead Wire Battery IMPORTANT: This product and/or components are governed by one or more of the following U.S.
-
Page 6: Installation
Installation MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock NOTE: You may need a longer downrod to maintain or personal injury, mount to an outlet box marked proper blade clearance when installing on a steep, sloped “Acceptable for fan support of 35 lbs. (15.9 kg) or less,” ceiling. - Page 7 Assembly - Standard Ceiling Mount Remove the hanger Attaching the blades ball from downrod □ □ Remove hanger ball from downrod by loosing the set screw and Attach a blade (F) to the fan motor assembly (E) by inserting removing the pin as shown in illustration. Keep parts. Remove the blade (F) into slots in the side of the fan motor assembly (E) preassembled keeper pin and cross pin from downrod.
-
Page 8: Assembly
Assembly - Standard Ceiling Mount (continued) Routing the wires Assembling the fan NOTE: This fan is equipped with a safety tab. Should the WARNING: Make sure the pin is installed well on hanger setscrew (GG) ever become loose while the fan is running ball with downrod. - Page 9 Assembly - Hanging the Fan Attaching the fan to the electrical WARNING: To reduce the risk of fire, electric shock or personal injury, mount to an outlet box marked “Acceptable for fan support of 35 lbs. (15.9 kg) or less,” and use the screws provided with the outlet box.
- Page 10 Assembly - Hanging the Fan (continued) Setting the code on the remote Installing the receiver control and receiver WARNING: To reduce the risk of fire or electric shock,remember NOTE: The frequencies on your receiver and hand unit have to disconnect power. The electrical wiring must meet all local been preset at the factory.
- Page 11 Assembly - Hanging the Fan (continued) Wiring the receiver to the Wiring the fan to the receiver household wiring WARNING: To avoid possible electrical shock, turn the NOTE: The fan comes with 12 in. lead wires for use with electricity off at the main fuse box before wiring. If you the provided 6 in.
- Page 12 Assembly - Hanging the Fan (continued) Mounting the fan-motor assembly (standard mount) WARNING: When using the standard ball/downrod mounting, the tab in the ring at the bottom of the mounting bracket must rest in the groove of the hanger ball. Failure to properly seat the tab in the groove could cause damage to the wiring.
- Page 13 Assembly - Attaching the Accessories Mounting the remote control holder NOTE: Screw wall anchors are included for extra support. The Screw cover plate included screws are designed to screw easily into the wall. If you would like a more permanent or secure hold, install the wall anchors prior to attaching the wall cradle to the wall.
- Page 14 Operating Your Fan and Remote Control (continued) Power ON/OFF: Press and release the power button to turn the fan and light on or off. Fan speed: LEDs on the fan speed button will illuminate to the corresponding speed. Press and release 1 time: turns the fan speed to 5. Press and release 2 times: turns the fan speed to 4.
-
Page 15: Care And Cleaning
Care and Cleaning WARNING: Make sure the power is off before cleaning your fan. □ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling. □... - Page 16 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
