RFHU Operator's Manual
RFHU OPERATING INSTRUCTIONS - Continued

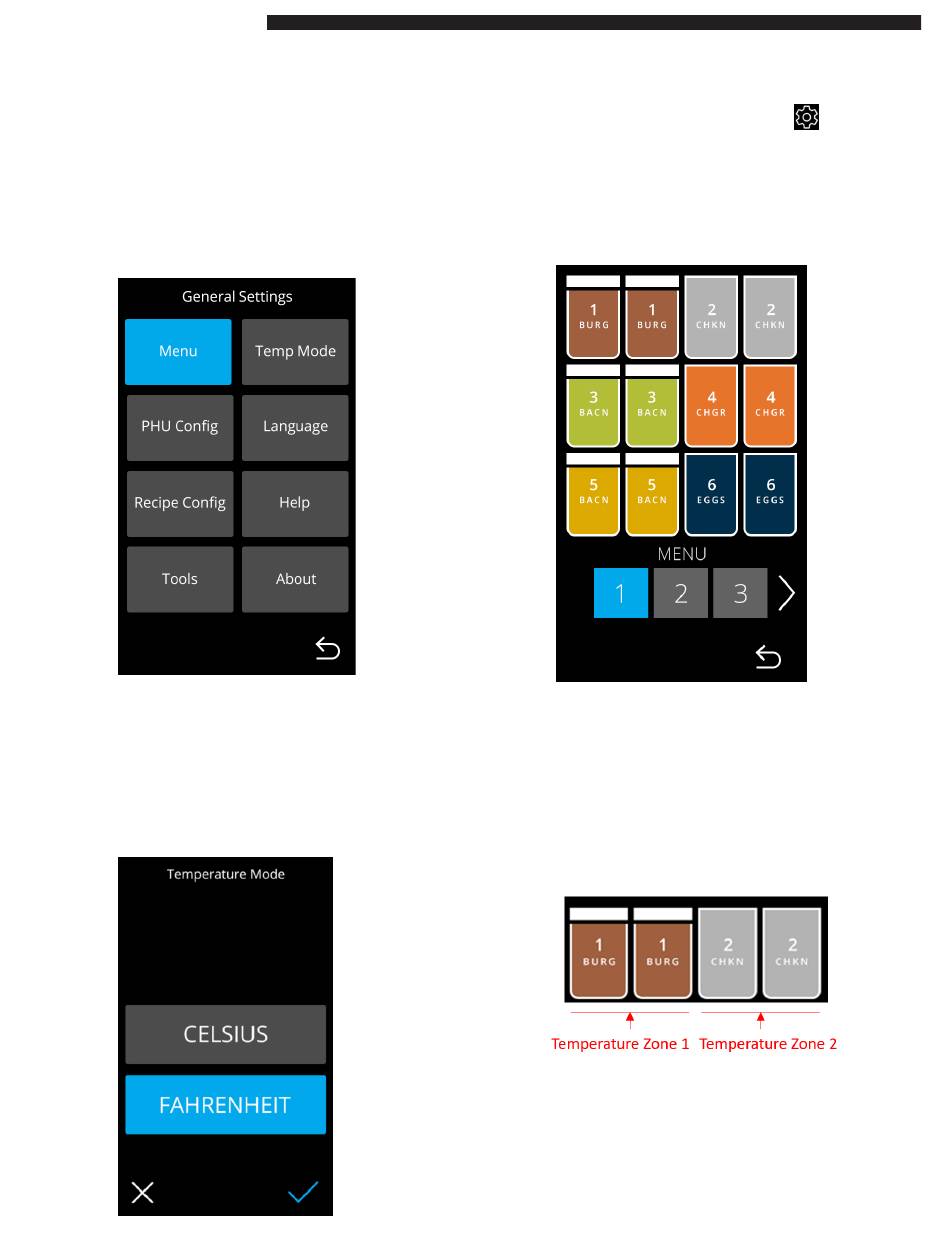

Several Settings are available on the RFHU. To enter the Settings menu click on the cog icon (
found in the lower right hand corner of the runtime screen.
The "Menu" option is allows you to select the
number Menus (or dayparts) you want to be
available (1 to 3).

Temp Mode

"Temp Mode" will display an option where the
temperature mode can be changed from the
default of Fahrenheit to Celsius.
NOTE: Any temperature throughout the control will
display in the selected temperature mode.
14

Menu

SETTINGS

When the user loads the "RFHU Config" menu
option within Settings the following screen will
appear.
In the same way as the runtime screen the unit's
configuration (for example 3X4) will be detected
and displayed.
The PHU config option allows the recipe mapping
of each well to be modified for each menu.
The number in the middle of each zone along with
the color indicates that the individual wells are
within the same temperature zone.
Current well mapping is displayed. For example
"BURG" is selected for both wells in "Zone 1". The
"CHKN" recipe is selected for both wells in "Zone 2".
When programming, only recipes with the same
BOTTOM (and TOP) temperature can be configured
next to each other within the same temperature
zone.

PHU Configurator

) which is
