Input Setting

9.1 Input Setting with Analog Input Option

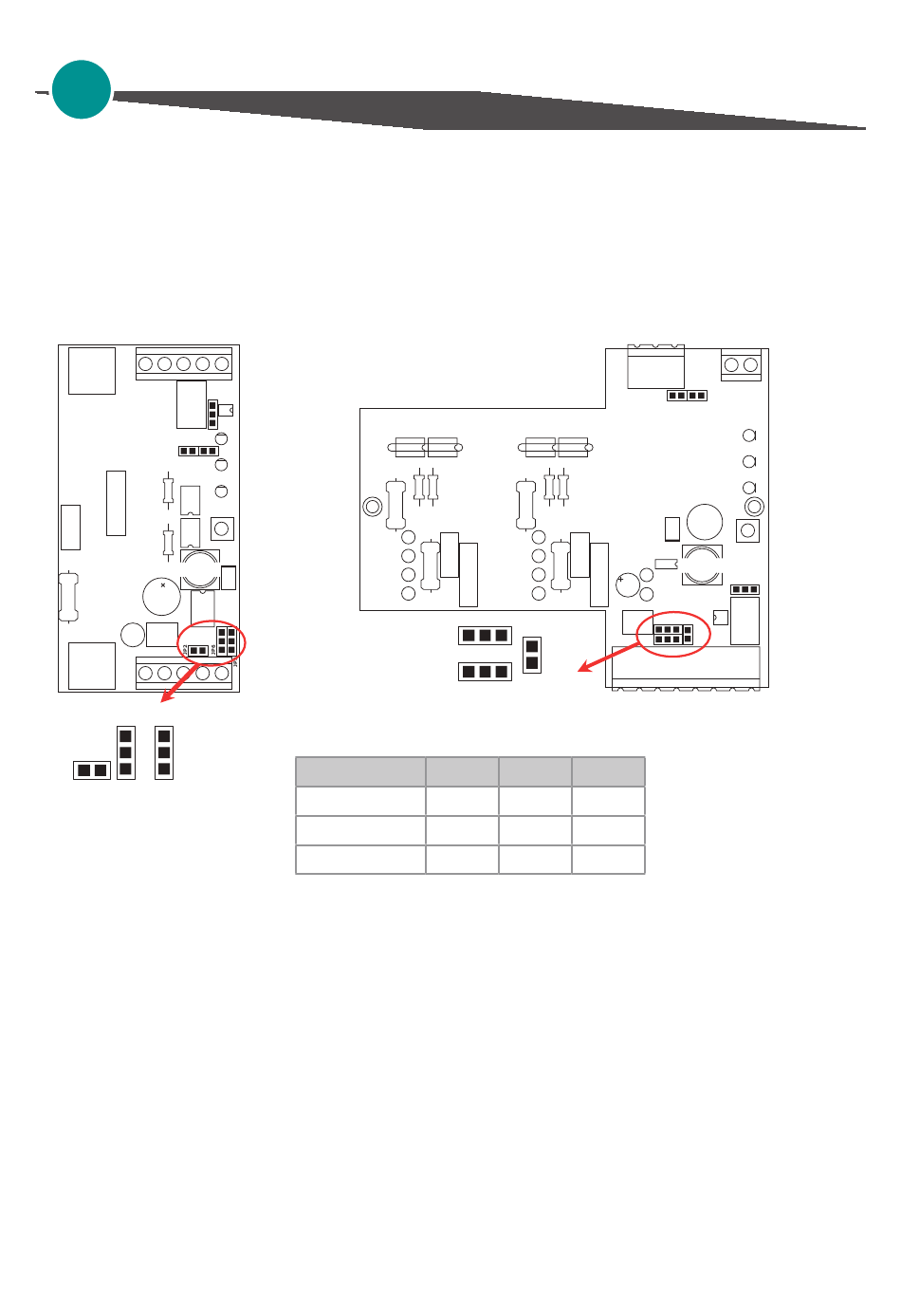

The input type is already configured in line with customer requirements that are defined in the complete
product code. However, if you wish to change the input type (ex. from 0÷10V to 4÷20mA) set the jumpers as
below represented and then do the "Input calibration procedure".
35A-45A
CN1
JP4 JP5
- +
+
CN2
JP3 JP6
C C
JP2
B B
A A
JP1
Input
SSR
0/4-20mA
0-10V
60A-90A
G1
K1 K1
K2 K2
G2 G2
JP3
C B A JP2
JP6
C B A
JP2 JP3
Open B-C
Close A-B
Close B-C
