Input Setting

9.1 Input Setting with Analog Input Option

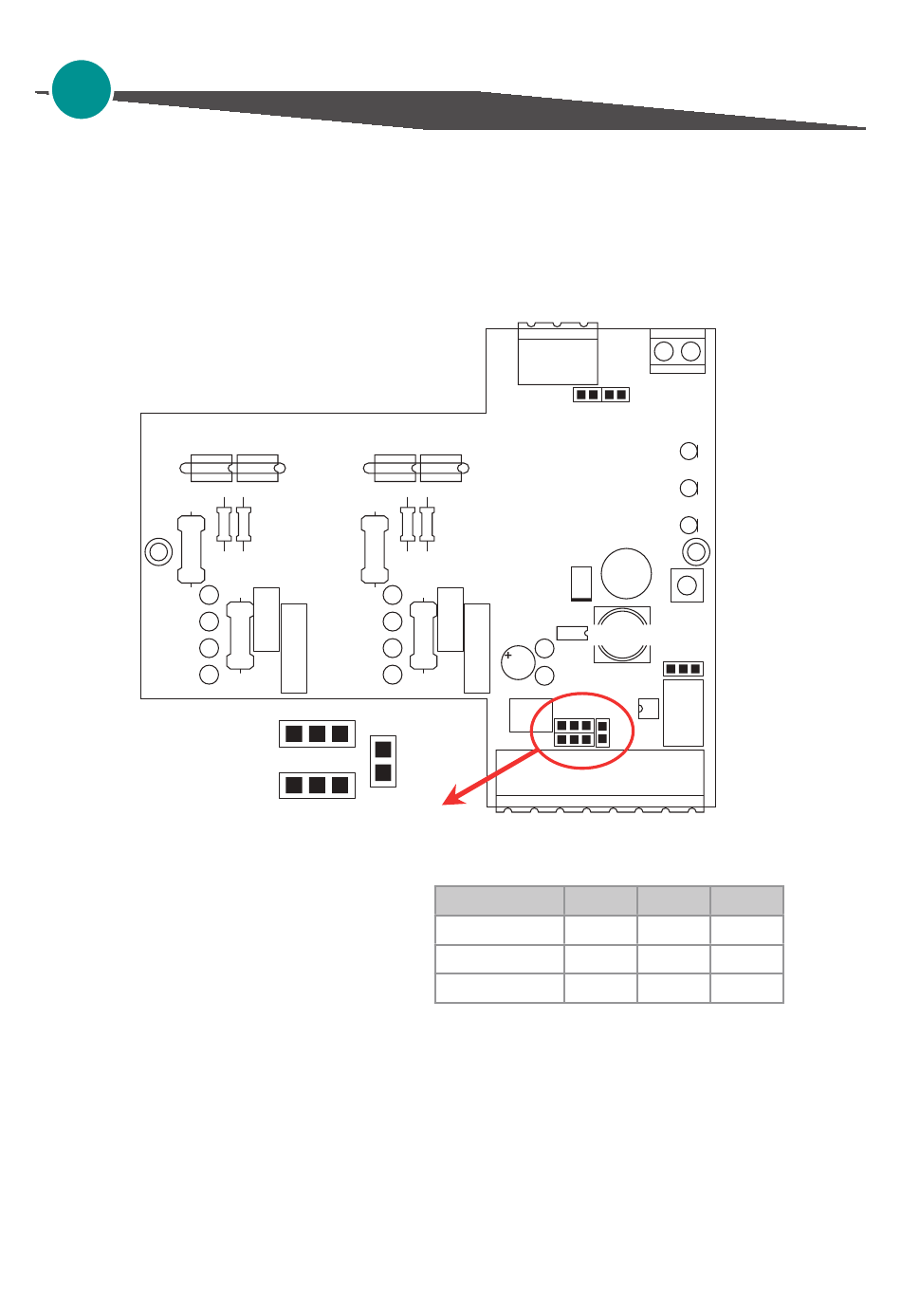

The input type is already configured in line with customer requirements that are defined in the complete
product code. However, if you wish to change the input type (ex. from 0÷10V to 4÷20mA) set the jumpers as
below represented and then do the "Input calibration procedure".
35A-90A
K1
K2
G2
JP3
C B A
JP6
C B A
JP4
G1
K1
K2
G2
- +
JP6
JP2
Input
SSR
0/4-20mA
0-10V
25
User's manual
JP5
+
JP1
JP3
JP2
JP2 JP3 JP6
Open B-C A-B
Close A-B B-C
Close B-C B-C
