Basic Connections and sizing

Wiring with resistive Load
I= P V
V = Nominal voltage of the load
I = Nominal current of the load
P = Nominal power of the load
3

Identification and Order Code

3.1 Identification of the Unit

Caution: Before to install, make sure that the Thyristor unit have not damages. If the product
has a fault, please contact the dealer from which you purchased the product.

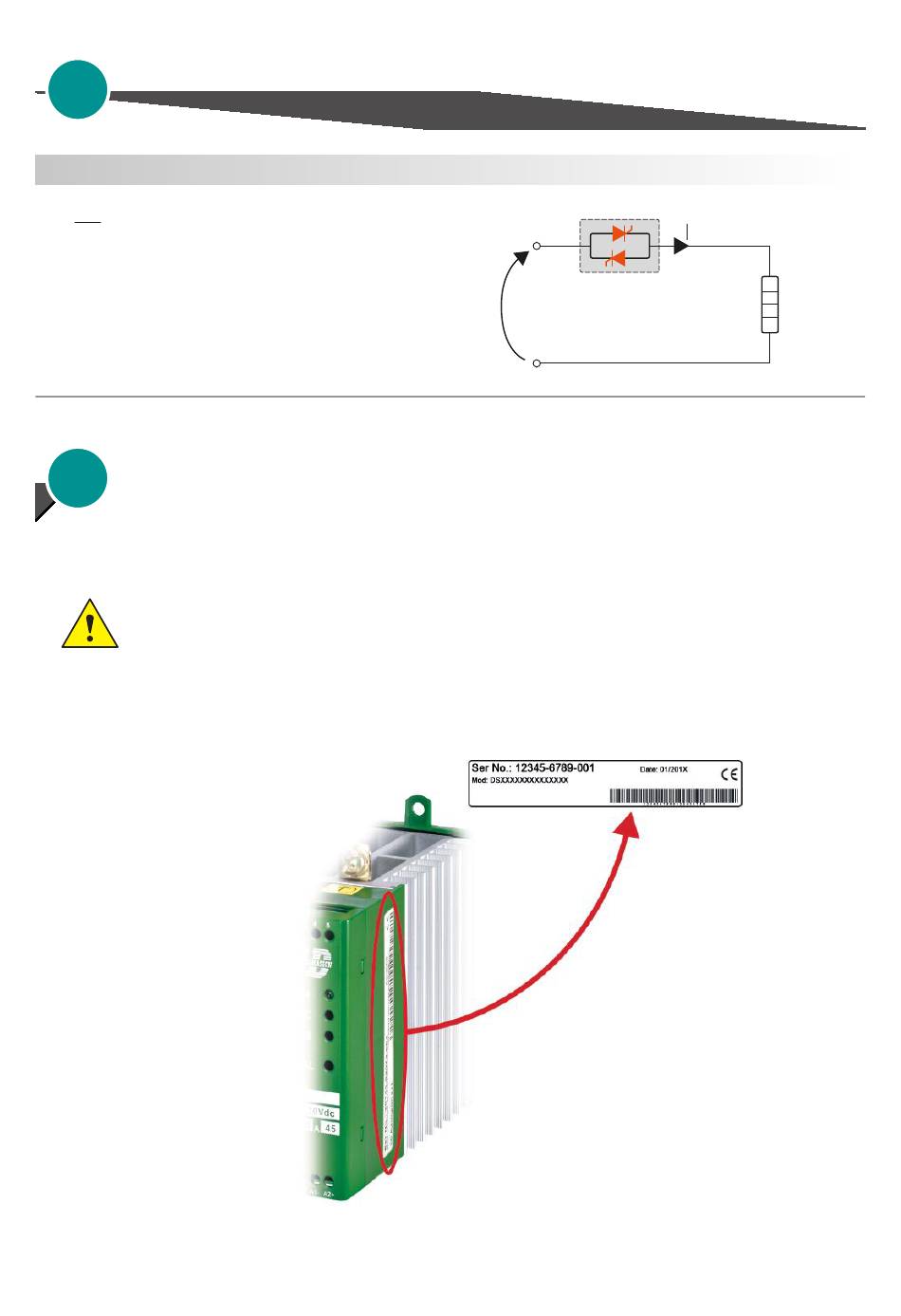

The identification label give all the information regarding the factory settings of the Thyristor unit, this label is
on the unit, like represented in figure.
Verify that the product is the same thing as ordered.
