CD3000S
1PH from 10A to 90A

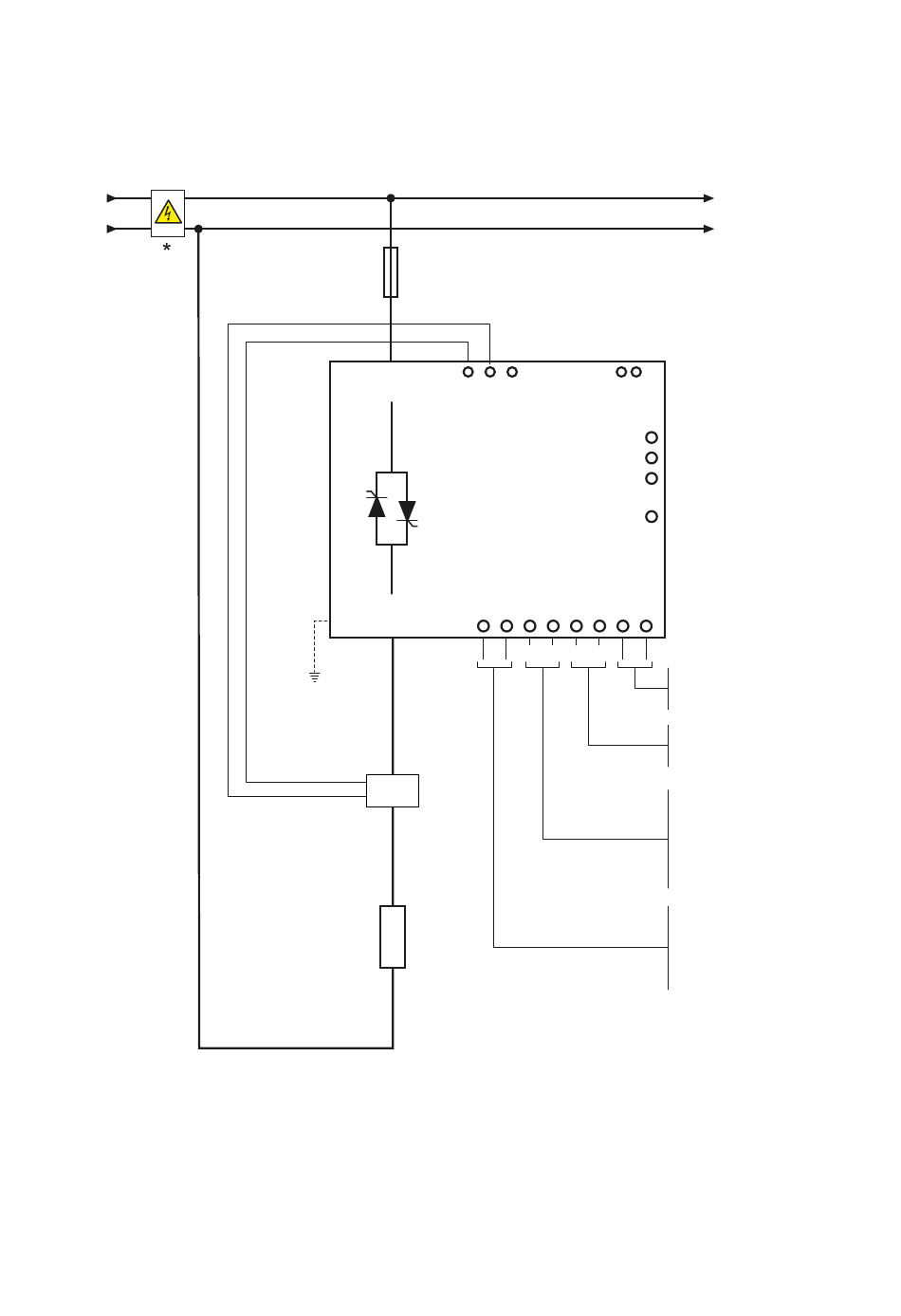

Size S7 with Analog Input and/or Heater Break Option - 60A-90A
L1
L2/N
Note:
1. The user installation must be protecting by electromagnetic circuit breaker or by fuse isolator.
2. With AC power supply it's not possible connect the zero terminal of Analogue Input to the earth.
3. A series connection between analogue inputs of the units is not possible.
4. See par. "HB alarm contact".
The Current Transformer (C.T.) must be mounted only with the HB option and without ICT option.
L1
C1 C2 C3
1
2
3
T1
-
C.T.
LOAD
21
L1
L2/N
4
5
6
7
8
-
+
+
H.B.
Alarm
Ext. CAL
12-24Vdc
Input
SSR
0-10Vdc
4-20mA
Aux
2
12-24V
AC/DC
User's manual
4
:
3
:
