Summary of Contents for Prolitec AirQ AQ 1270 TT

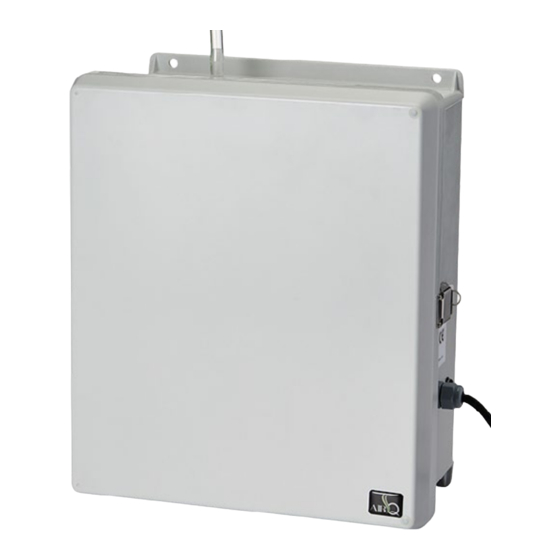

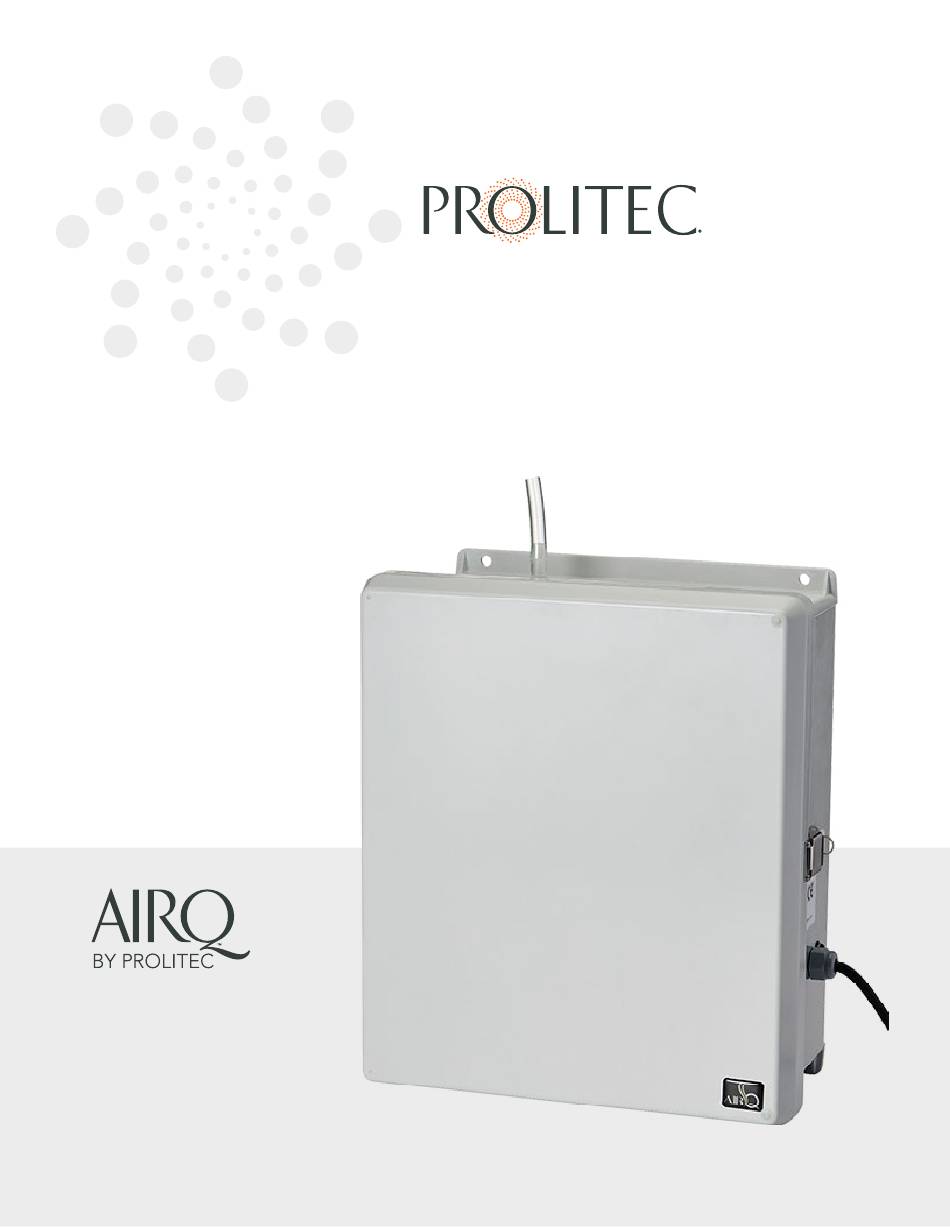

- Page 1 P ERFEC T LY S C EN T E D E NV I R O N M EN T S AQ/PS/RZ 1270 TT/WM Original Instructions Rev. 2016-04-12...
-
Page 2: Table Of Contents
Contents Chapter 9: INSTALLATION: Chapter 1: About AQ/PS/RZ 1270 Diffusion via HVAC system Chapter 2: Unpacking Installation Kit for Appliance Chapter 3: MOVING AND STORAGE Installation Kit for HVAC System DIffusion INSTRUCTIONS HVAC Pre-installation Checklist Chapter 4: Cartridge Life & Room Size Appliance Positioning Table Appliance Installation... -
Page 3: Chapter 1: About Aq/Ps/Rz 1270
About AQ/PS/RZ 1270 Welcome to a whole new world of air treatment from Prolitec, the technology leader in air care with scent. The AQ1270 appliance is the most advanced commercial air-treatment system on the market today. It is the world’s first fully adjustable commercial air-treatment system engineered to serve indoor spaces. - Page 4 This is not an accident. The scientists and engineers at Prolitec are committed to the highest ecological and human safety standards.
-
Page 5: Chapter 2: Unpacking
& Unpacking Remove AQ1270 from the container. The following items should be included: 1. AQ1270 Appliance 2. HVAC kit 3. Plume kit MOVING AND STORAGE INSTRUCTIONS 1. Remove the cartridge. 2. Unscrew and remove the long round-head screws in the lower corners. 3. -
Page 6: Chapter 4: Cartridge Life & Room Size Table
Cartridge Life & Room Size Table Estimating Cartridge Life Estimating how long a cartridge will last and the number of days between services is critical to performing an installation that can be serviced efficiently. This includes determining the number of AQ1270s needed for a space. -
Page 7: Chapter 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS Appliance Precautions WARNING – When using electric products, basic precautions should always be followed, including the following: • Read all the instructions before using the product. • Children should be supervised not to play with the appliance. •... -
Page 8: Fragrance Precautions
Fragrance Cartridge Precautions • Use only AirQ by Prolitec fragrance cartridges. • Read the Consumer Product Safety Information Sheet and the Material Safety Data Sheet provided with each shipment of Cartridges. Insure that these information sheets are available for review by employees. - Page 9 Appliance & Controls Injector Hose Screw Cap Control Display Tube Control Connector Buttons Air Nozzle First Stage Air Filter Recyclable Cartridge Battery Auxiliary DC Power Jack AQ/PS/RZ 1270 Chapter 6 Appliance & Controls...
-
Page 10: Chapter 7: User Maintenance
USER MAINTENANCE Changing the Cartridge 1. Unlatch and open the door to access the cartridge: The door should be opened only to perform a cartridge or programming change. When in use, the door must be closed. 2. Press POWER button to turn appliance OFF. 3. -
Page 11: Air Filters And Check Valve
Air Filters and check valve (every 6 months or sooner depending on use) AQ1270 is equipped with two stages of air filtration and a check valve system. The first stage is a sintered filter (PN 10417). It is can be unscrewed and washed with clean water as needed. -
Page 12: Battery Replacement
Battery Replacement (approximately every two years) (Requires 3 Volt CR2032 Lithium Battery, PN 7115) Unlatch and open the door to access the enclosure. Using a pair of tweezers or needle-nose pliers, remove battery from the center opening of the battery grommet. The battery is located on the lower front corner of the silver bracket. Insert the new CR2032 battery. -
Page 13: Chapter 8: Operating Instructions
OPERATING INSTRUCTIONS Unit Programming Unlock and open the door. Turn on the power by pressing on the control panel. Set the Clock. • Press to cycle through the modes to the options mode. The day of the week will blink. •... -
Page 14: Using The Online Sd Card Programming Tool
• Press to set the status and the intensity will blink. • Adjust the intensity up or down using • Press to set the intensity and the day of the week will blink. • Adjust the day of the week forward or backward using HINT: In addition to individual days, you can also set “all days,”... - Page 15 • The tool will warn the user of overlapping programs. • Programs sets need to be saved. 3. Edit an existing program set using the EDIT button to the right of the program name. 4. Copy an existing program set using the COPY button to the right of the program name. This can be especially useful for quickly duplicating a very similar set of programs.
- Page 16 2. Insert the SD card, with the label side down. 3. Press the reset button, and the five buttons will light in sequence from left to right. 4. The buttons will light alternately. 5. Press and hold for one second, and the display will show LOAD for about ten seconds. 6.
-
Page 17: Setting Scent Intensity
Setting Scent Intensity Determine the approximate size of the room in cubic feet or cubic meters by multiplying length x width x ceiling height. Consult the Room-Size Table to give you a level (1 to 50) to set. THIS IS ONLY A STARTING POINT. -
Page 18: Chapter 9: Installation: Diffusion Via Hvac System
INSTALLATION: Diffusion via HVAC System Installation Kits Installation Kit for Appliance (included) 1. One (1) AQ1270 appliance (not pictured) with: 2. Four (4) drywall anchors for mounting in drywall 3. Four (4) lead anchors for mounting in concrete 4. Four (4) screws and (4) washers for mounting in drywall and concrete 5. -
Page 19: Installation Kit For Hvac System Diffusion
Installation Kit for HVAC System Diffusion (included) 1. One (1) Prolitec injector tube for diffusion into HVAC system 2. Three (3) #10 self-tapping sheet-metal screws for mounting the injector tube in sheet metal 3. Three (3) feet of injector hose 4. -
Page 20: Appliance Positioning
If this is not possible, the Plume output can pass over hot water, steam, chilled water, and DX coils. Open gas flames should absolutely be avoided. If installation must be over gas heated coils or open gas flames, contact Prolitec Technical Support. The best location for the Appliance is below the injector tube (Fig. -
Page 21: Appliance Installation
Fig. 16 CORRECT INCORRECT Appliance Installation 1. The appliance is wall-mounted. Place the appliance onto the desired location on the wall or AHU and ensure that it is level. 2. Fasten the appliance to the wall or AHU using necessary screws. 3. -
Page 22: Injector Tube Installation
Injector Tube Installation The injector tube is installed directly into the AHU or ductwork. Its orientation can be adjusted relative to airflow. • For installations into the negative/suction side of the AHU fan, orient the tube with the elbow pointed upwards, so that any plume condensation will drip back down the tube. •... -
Page 23: Chapter 10: Installation: Diffusion Via Direct Indoor Fan
INSTALLATION: Diffusion via Direct Indoor Fan (Product# AQ1270-FAN) Installation Kits Installation Kit for Appliance (included) 1. One (1) AQ1270 appliance (not pictured) with: 2. Four (4) dry wall anchors for mounting in drywall 3. Four (4) lead anchors for mounting in concrete 4. -
Page 24: Installation Kit For Fan
Installation Kit for Fan (accessory sold separately) 1. One (1) Prolitec Diffusion fan and cable for direct indoor diffusion 2. Three (3) drywall anchors for mounting fan onto dry wall 3. Three (3) lead anchors for mounting in concrete 4. Three (3) screws for mounting in drywall and concrete 5. -
Page 25: Pre-Installation Checklist
Pre-installation Checklist This checklist should be completed before install date. 1. Confirm the area to be targeted for air treatment. 2. Confirm the general direction of ambient air flow in the area and position the machine so that the plume will be more evenly distributed and carried by the natural air flow. 3. -
Page 26: Diffusion Fan Installation
Diffusion Fan Installation Fig. 3 Fig. 4 Fig. 5 Fig. 6 1. The diffusion fan is positioned directly above the appliance hose output port located on the top left of the appliance but no more than 4-1/2 feet above it. (Fig. - Page 27 Fig. 8 Fig. 9 Fig. 10 Fig. 11 6. Run Diffusion Fan cable inside the raceway (Fig. 10), fold the raceway into a square and snap the raceway cover closed. (Fig. 11) If needed, use a flat-head screw driver to push in the side wall of the cable raceway.
-
Page 28: Chapter 11: Troubleshooting
Troubleshooting Condition Causes Solutions Power light off. The Appliance is not Make sure the power connection is operational. plugged in or the plug Verify that the power button light is blue when has no power pressed. Unit does not start Back-up battery not Verify the protective yellow battery tab has been automatically after a... - Page 29 Condition Causes Solutions The power light is on The output tube may be Remove the hose from the output tube leaving and the compressor blocked. the Cartridge in place in the appliance. Turn the can be heard but no appliance on so you can hear the compressor. fragrance detected.
-
Page 30: Chapter 12: General Care And Customer Support
Do not operate AQ1270 in very dusty areas that may cause the air intake to clog. • Do not move or transport an appliance with a cartridge installed. • Please call Prolitec Customer Service at 844-247-7599 for return shipping instructions or questions. AQ/PS/RZ 1270 Chapter 12... -
Page 31: Chapter 13: Applications
There are four basic applications for AQ1270: ambient scenting, product marketing, odor control and aromatherapy. These applications are different in terms of their objectives, but they all employ the same combination of Prolitec’s proprietary air-treatment chemistry and AQ1270 computer-controlled delivery system. -
Page 32: Product Marketing
AQ1270 and Prolitec’s proprietary odor-remediation chemistry are capable of blocking the human ability to detect most malodors and replacing these odors with pleasant scents. Prolitec’s proprietary air-treatment chemistry and the accompanying computer-controlled delivery system are rapidly becoming the standard solution for difficult odor issues in several industry sectors. -
Page 33: Aromatherapy & Performance Scenting
The benefits include reduced errors in routine functions, increased employee sense of well being, higher morale, improved customer service and overall improved productivity. AQ1270 and Prolitec aromatherapy chemistry can help make a workspace a more comfortable and appealing place to be. As examples of the positive effect of aromatherapy on the workplace, below are results of several relevant studies: •... -
Page 34: Chapter 14: Frequently Asked Questions
Frequently Asked Questions (FAQs) How does AQ1270 work? AQ1270 uses a patented technology to convert liquid fragrance compounds into tiny droplets less than 1/100th the diameter of a human hair. By comparison, an aerosol droplet is 100 times bigger and 1,000,000 times heavier. AQ1270 droplets present 100 times more surface area to the air being treated, which means much less fragrance is used to create the scent effect. - Page 35 How does AQ1270 differ from aerosol room fresheners? The more expensive aerosols can produce a very pleasant scent, but only for a few minutes and in very high concentrations just in the area they were sprayed. AQ1270 is what is known as a “continuous action”...
-
Page 36: Chapter 15: Specifications
85% or less Liquid Capacity 1250mL cartridges Service Area Up to 150,000 cu. ft. (4245 m ) served Prolitec, Incorporated 1235 W. Canal Street Milwaukee, WI 53223 1-844-247-7599 www.prolitec.com All contents © 2015-2016 Prolitec, Inc. AQ/PS/RZ 1270 Chapter 15 Specifications...
