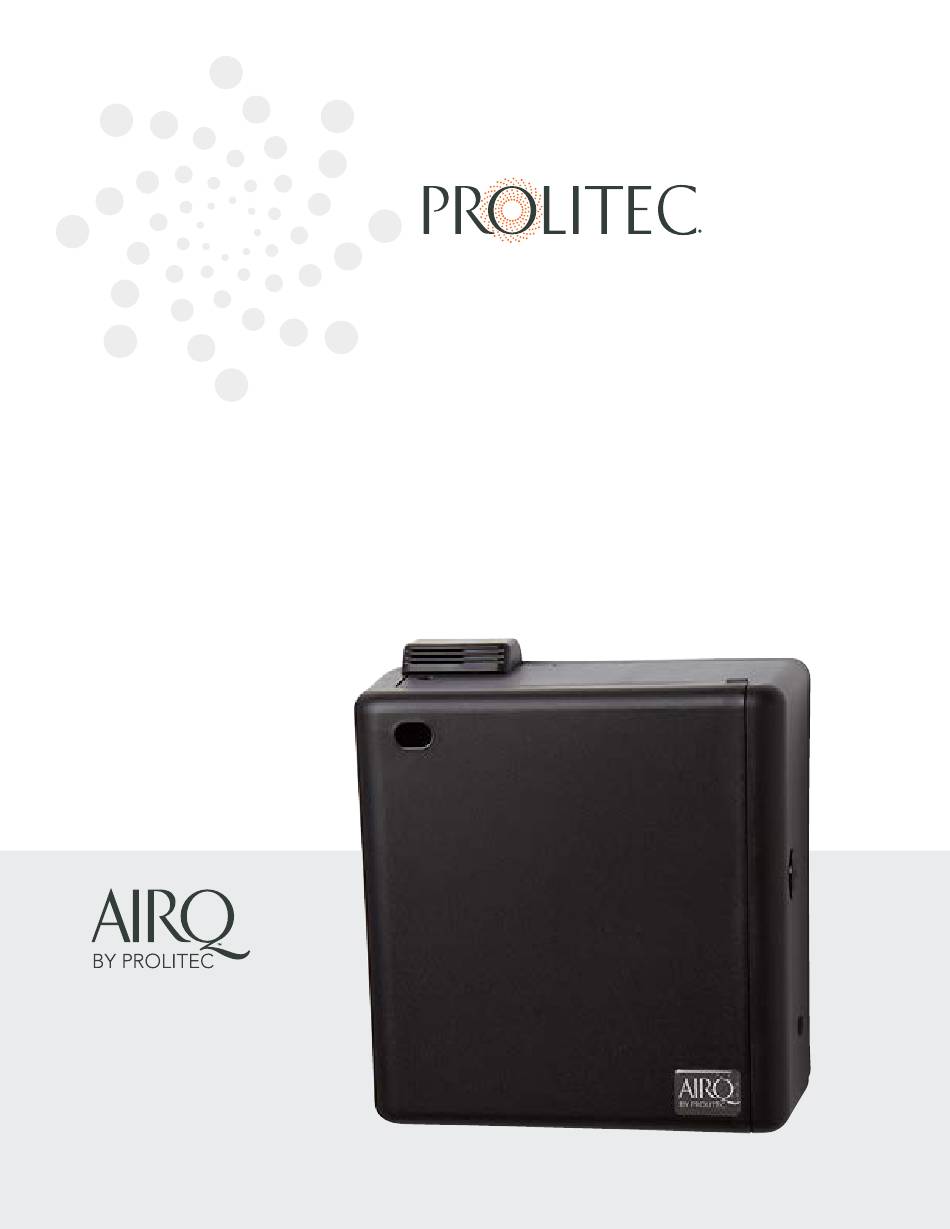

- Page 1 P ERFEC T LY S C E N TE D E N V IR O NM E N TS AQ/PS/RZ 570 CM/CT/TM/TT/WM Original Instructions Rev. 2018-04-18...
-
Page 2: Table Of Contents
Contents Chapter 6: OPERATING INSTRUCTIONS Chapter 1: About AQ/PS/RZ 570 Features and Controls Chapter 2: Unpacking Setting Up the Cartridge Chapter 3: MOVING AND STORAGE Programming the Appliance INSTRUCTIONS Using the Online SD Card Programming Tool Chapter 4: INSTALLATION Setting Scent Intensity General Scent Control Location... -
Page 3: Chapter 1: About Aq/Ps/Rz 570
About AQ/PS/RZ 570 Welcome to a whole new world of air treatment from Prolitec, the technology leader in air care with scent. The AQ570 appliance is the most advanced commercial air-treatment system on the market today. It is the world’s first fully adjustable commercial air-treatment system engineered to serve indoor spaces. -
Page 4: Chapter 2: Unpacking
Unpacking Remove AQ570 from the container. The following items should be included: 1. AQ570 Appliance 2. Power Supply 3. Key 4. Mounting Hardware 5. One plastic output-extension tube (to be used out of the top port only, if needed) – white or black, to match the appliance AQ/PS/RZ 570 Chapter 2... -
Page 5: Chapter 3: Moving And Storage Instructions
MOVING AND STORAGE INSTRUCTIONS 1. Remove the cartridge. 2. Unscrew and remove the long round-head screws in the lower corners. 3. Lift the appliance upward, off the mounting posts. 4. Unplug the appliance. 5. Unscrew the mounting plate. 6. Store at -4°F (-20°C) to 158°F (70°C), 5% to 95% humidity AQ/PS/RZ 570 Chapter 3 MOVING AND STORAGE INSTRUCTIONS... -
Page 6: Chapter 4: Installation
Installation General Location AQ570 is designed for permanent installation on wall surfaces over a 110 to 240V outlet (Fig. 1), mounted to a ceiling track-lighting system (Fig. 2), used as a table- or shelf-top unit (Fig. 3) or strapped to a column or pillar (Fig. 4). Service Area The service area range of AQ570 is from 200 to 30,000 cubic (10 to 850 cubic meters). -
Page 7: Estimating Cartridge Life
Estimating Cartridge Life Estimating how long a cartridge will last and the number of days between services is critical to performing an installation that can be serviced efficiently. This includes determining the number of AQ570s needed for a space. Please refer to AirQ’s ‘S3 (Sizing, Service & Success) Tool,’ available at AirQ Tools. -
Page 8: Appliance Location
AQ570 can use, rather than fight, the natural air currents in a room. 2. Air currents in a room are determined by using a SMOKE TEST KIT available from Prolitec or any source of smoke or vapor, such as a candle or match. - Page 9 If it makes sense to plug the appliance into an outlet that is near, but not behind the appliance, a rectangular, plastic wire-concealment conduit should be used (PN 10619). Step 2 – Mounting Kit, Parts and Tools mounting kit provided with AQ570 includes a mounting plate, which holds the appliance to the wall, and 4 screws and wall anchors suitable for plastered drywall —...
-
Page 10: Installing The Top Anchors
Step 4 – Installing the Top Anchors Set the mounting bracket aside. Use an electric drill to make a 1/8” hole at the exact location you marked. This will serve as a guide for the anchors. Use a hammer to tap the anchors in far enough so they stay well in position. -
Page 11: Hanging The Mounting Bracket
Step 7 – Hanging the Mounting Bracket Hang the mounting bracket by holding the bracket so the top holes match up with the anchors, then screw the 2 flat-head screws through the hole in the bracket into the anchors. Tighten the screws firmly, but do not crack the bracket. -
Page 12: Fitting The Appliance In Place
Step 9 – Fitting the Appliance in Place Place the appliance so that the big holes in the top of the back cover fit over the rounded locking posts. In doing this, make sure the appliance is flush with the wall and the posts are in the holes of the appliance. -
Page 13: Chapter 5: Scenting Via Hvac System
Scenting via HVAC System Unpacking Remove all parts from the container. The following items should be included: 1. The AQ/PS/RZ Appliance 2. 110/220V to 12V power adapter 3. Universal Adapter Kit 4. Sensor Housing comprising: a. Airflow Switch cable b. Three (3) Airflow Switch mounting screws c. - Page 14 Unpacking AQ/PS/RZ Appliance (not pictured) AQ/PS/RZ 570 Chapter 5 Scenting via HVAC System...
-
Page 15: Operation
Installation for HVAC System Scenting Operation The AirQ generates micro-droplets 1/100th the diameter of a human hair from a reservoir of liquid in a disposable cartridge. These micro-droplets behave like a vapor. They are passed through a silicon tube and injected into the airflow of the air handler using an injector tube that is installed in a hole in the ductwork. -
Page 16: Positioning The Machine
Positioning the Machine The AirQ 570 machine is mounted on a flat vertical surface — either a wall or on an air duct. The maimum run of the silicon injector hose between the Cartridge and the Injector Tube is 18”. The shortest possible run length is better. -
Page 17: Wall Mounting Or Duct Mounting
Wall Mounting or Duct Mounting the Machine Step 1: Mounting Kit, Parts and Tools The mounting kit provided with the AQ570 (with HVAC kit) includes a mounting plate, which holds the appliance to the wall or duct surface; 4 screws and wall anchors suitable for attaching the mounting plate to drywall and 4 sheet-metal screws suitable for attaching the mounting plate to ductwork;... - Page 18 Step 3: Installing the Top Anchors or Screws Set the mounting bracket aside. Use an electric drill to make a 1/8” pilot hole at the exact location you marked. This will serve as a guide for the anchors or sheet metal screws. If the appliance is being mounted on drywall, use a hammer to gently tap the tip of the anchors into the wall.
- Page 19 Step 8: Fitting the Appliance in Place Place the appliance so that the big holes in the top of the back cover fit over the rounded locking posts. In doing this, make sure the appliance is flush with the wall and the posts are in the holes of the appliance.
- Page 20 Step 11: Installing the Airflow Switch 1. The air-flow switch must be installed on a vertical plane at a distance of between 6-12” above the appliance. 2. Using installation template mark 2# location holes. 3. Drill 2# 1/8” dia. pilot holes. 4.
- Page 21 Step 12: Installing the Supply tube…Device-to-switch 1. Cut supply tube to appropriate length, re: distance, switch-to-appliance. 2. Insert barbed end of Connector into supply tube lumen. 3. Insert connectorized supply tube into appliance. 4. Insert air switch plug into corresponding receptacle in appliance. AQ/PS/RZ 570 Chapter 5 Scenting via HVAC System...
-
Page 22: Chapter 6: Operating Instructions
OPERATING INSTRUCTIONS Features and Controls Output Ports Lock Air Stem Fragrance Cartridge Programming Panel AQ/PS/RZ 570 Chapter 6 OPERATING INSTRUCTIONS... -
Page 23: Setting Up The Cartridge
Setting Up the Cartridge 1. Use the key to unlock and open the door. 2. Prepare the cartridge. • Remove the plug from the TOP port (b) of the cartridge • Remove the big plug from the air-intake port (a) on the flat surface (back side) of the top of the cartridge. - Page 24 Insert the cartridge into the recess so that the air-intake port fits over the air stem. After inserting the cartridge, insert the plastic tube into the cartridge through the port on the top of the appliance. Remove tube when changing cartridge. If the appliance has been previously programmed (see Programming the Appliance), press...
-
Page 25: Programming The Appliance
Programming the Appliance Unlock and open the door. Turn on the power by pressing on the control panel. Set the Clock. • Press to cycle through the modes to the options mode. The day of the week will blink. • Adjust the day forward or backward using •... -
Page 26: Using The Online Sd Card Programming Tool
• Press to set the intensity and the day of the week will blink. • Adjust the day of the week forward or backward using HINT: In addition to individual days, you can also set “all days,” “week days,” or “weekend days.” •... - Page 27 3. Edit an existing program set using the EDIT button to the right of the program name. 4. Copy an existing program set using the COPY button to the right of the program name. This can be especially useful for quickly duplicating a very similar set of programs. 5.
- Page 28 4. The buttons will light alternately. 5. Press and hold for one second, and the display will show LOAD for about ten seconds. 6. The five buttons will light in sequence from left to right. 7. Remove the SD card; the display will show the currently loaded firmware version and the pump will run for one second.
-
Page 29: Setting Scent Intensity
Setting Scent Intensity 1. Determine the approximate size of the room in cubic feet or cubic meters by multiplying length x width x ceiling height. 2. Consult the Room-Size Table to give you a level (1 to 50) to set. THIS IS ONLY A STARTING POINT. -
Page 30: Chapter 7: Plume Dispersion Fan
Plume Dispersion Fan The Plume Dispersion Fan reduces visibility of the plume and helps disperse fragrance within a room. The top port of the cartridge must be used for output with the fan running. NOTE: the included plume tube must be used, otherwise condensation may develop. Remember to keep the Front OUTPUT Port plugged. -
Page 31: Chapter 8: Special Concerns For Track-Light Mounted Appliances
Special Concerns for Track Light-Mounted Appliances Track Light-Mounted installations occasionally encounter a problem with fragrance deposits on the door of the appliance. Left uncorrected for several days the condensation can begin to drip, creating the appearance of a leak in the machine and damaging the floor. Cause This is caused by fragrance droplets from the output of the AQ570TL being blown back onto the surface of the machine by the ambient air flow. -
Page 32: Chapter 9: User Maintenance
USER MAINTENANCE Cartridge Change When the reservoir is empty the cartridge needs to be changed. The change process is simple. Best practice to wear gloves when manipulating the cartridge. 1. Unlock and open the door. 2. Turn off the power by pressing the power button. 3. -
Page 33: Cartridge Change Maintenance Checklist Items
Inspect the o-rings on the air stem for breakage or deterioration. Replace as needed. Remove the plug from the Top Output Port first, then remove the large plug from the Air Intake port. Insert the new cartridge and replace the plastic tubing. Remove the empty cartridge from the property and deliver to a recycling center at a later date. -
Page 34: Changing An Appliance
Changing an Appliance Appliance malfunctions are not intended to be serviced in the field. If there is no plume after following the procedure outlined above or there is any excessive noise level, then the appliance must be replaced with a new one. 1. -
Page 35: General Care
General Care • AQ570 is an electronic appliance. Treat it like a laptop. • Do not place or store AQ570 or its cartridges in extreme heat (more than 130˚ F) or in freezing temperatures. • Do not drop AQ570 on the floor. Do not drop it in or position it near water. •... -
Page 36: Chapter 10: Applications
There are four basic applications for AQ570: ambient scenting, product marketing, odor control and aromatherapy. These applications are different in terms of their objectives, but they all employ the same combination of Prolitec’s proprietary air-treatment chemistry and AQ570 computer-controlled delivery system. -
Page 37: Product Marketing
AQ570 and Prolitec’s proprietary odor-remediation chemistry are capable of blocking the human ability to detect most malodors and replacing these odors with pleasant scents. Prolitec’s proprietary air-treatment chemistry and the accompanying computer-controlled delivery system are rapidly becoming the standard solution for difficult odor issues in several industry sectors. -
Page 38: Aromatherapy And Performance Scenting
The benefits include reduced errors in routine functions, increased employee sense of well being, higher morale, improved customer service and overall improved productivity. AQ570™ and Prolitec aromatherapy chemistry can help make a workspace a more comfortable and appealing place to be. As examples of the positive effect of aromatherapy on the workplace, below are results of several relevant studies: •... -
Page 39: Chapter 11: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS Appliance Precautions WARNING – When using electric products, basic precautions should always be followed, including the following: • Read all the instructions before using the product. • Children should be supervised not to play with the appliance. •... -
Page 40: Fragrance Cartridge Precautions
Fragrance Cartridge Precautions • Use only AirQ by Prolitec fragrance cartridges. • Read the Consumer Product Safety Information Sheet and the Material Safety Data Sheet provided with each shipment of Cartridges. Insure that these information sheets are available for review by employees. -
Page 41: Chapter 12: Frequently Asked Questions
Frequently Asked Questions (FAQs) How does AQ570 work? AQ570 uses a patented technology to convert liquid fragrance compounds into tiny droplets less than 1/100th the diameter of a human hair. By comparison, an aerosol droplet is 100 times bigger and 1,000,000 times heavier. AQ570 droplets present 100 times more surface area to the air being treated, which means much less fragrance is used to create the scent effect. - Page 42 How does AQ570 differ from aerosol room fresheners? The more expensive aerosols can produce a very pleasant scent, but only for a few minutes and in very high concentrations just in the area they were sprayed. AQ570 is what is known as a “continuous action”...
-
Page 43: Chapter 13: Specifications
Liquid Capacity 265 mL & 500 mL cartridges Service Area Up to 30,000 cu. ft. (850 m ) served Prolitec, Incorporated 1235 W. Canal Street Milwaukee, WI 53223 1-844-247-7599 www.prolitec.com All contents © 2015-2016 Prolitec, Inc AQ/PS/RZ 570 Chapter 13 Specifications... - Page 44 AQ/PS/RZ 570 Chapter 1 Title...
