Prolitec AQ1570 Quick Reference Manual

P E RFE CTLY S C E NT ED EN V I RO NM ENT S

AQ1570

Quick Reference Guide

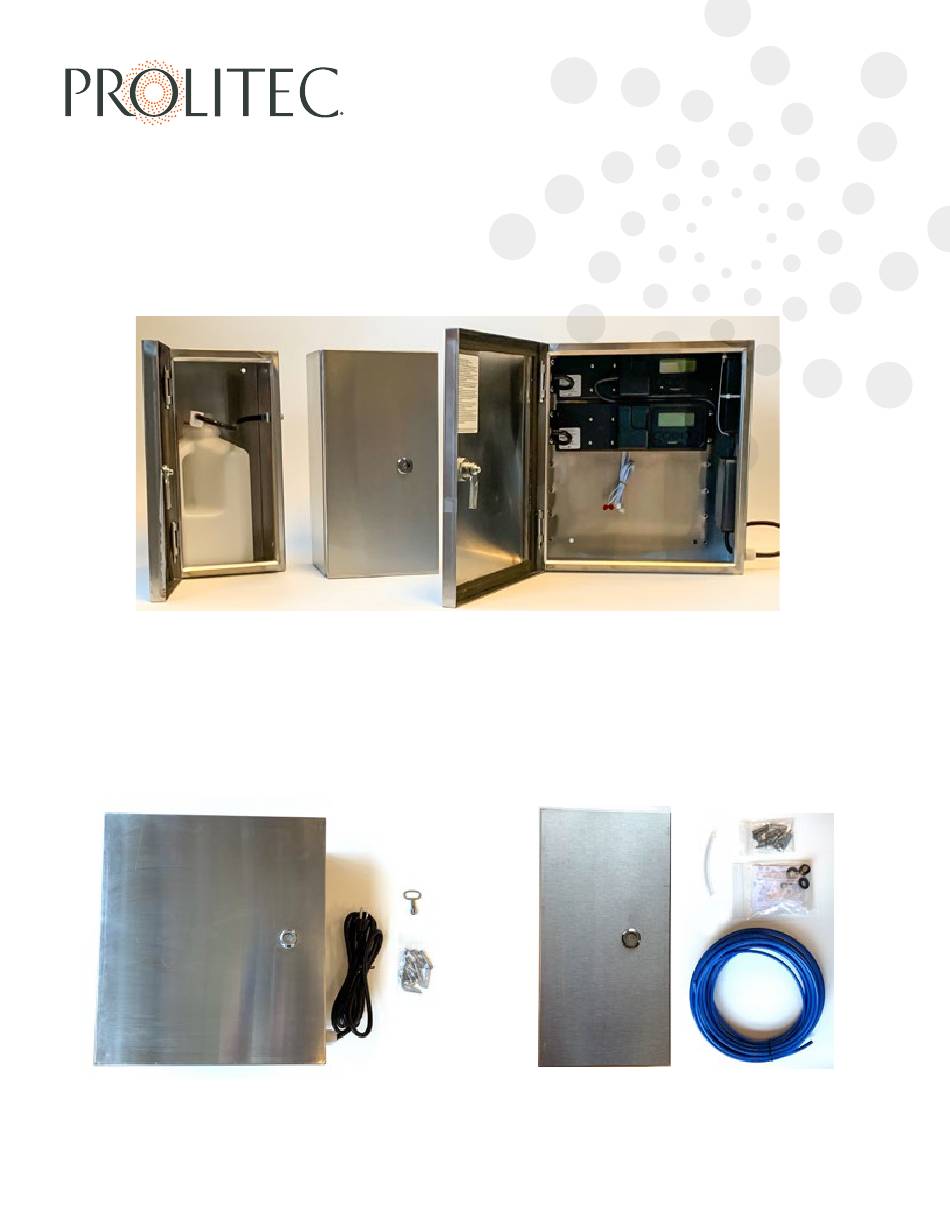

UNPACKING

AQ1570BASE is shipped in two boxes.

AQ1570BASE Box 1 of 2 contains the following:

Central Control Unit (CCU), key, and mount kit

UPDATED 2020-03-04

AQ1570BASE Box 2 of 2 contains two of the following:

Cartridge enclosure, airline tubing (50ft), plume kit,

mount kit, and plume director

Table of Contents

Do you have a question about the AQ1570 and is the answer not in the manual?

Page 1 P E RFE CTLY S C E NT ED EN V I RO NM ENT S AQ1570 Quick Reference Guide UNPACKING AQ1570BASE is shipped in two boxes. AQ1570BASE Box 1 of 2 contains the following: AQ1570BASE Box 2 of 2 contains two of the following:...
Page 2 2. Connect the CCU to power. 3. Install a plume kit and plume director on each cartridge head. 4. Connect the airstem and insert the cartridge as shown. Then, screw the plume kit cap onto the cartridge plume port. AQ1570 Quick Reference Guide...
Page 3 INSTALLATING AN ADDITIONAL MODULE To install an additional module in the CCU: 1. Connect a wire harness to the two inputs (one red and one white) on the back of the circuit board of the new module, as shown. AQ1570 Quick Reference Guide...
Page 4 4. Mount the respective cartridge head and connect with airline tubing per normal installation instructions. 5. Power on and program the new module. Refer to the full product manual at https://www.airqmanuals.com for complete safety, operating, moving, and storage instructions. AQ1570 Quick Reference Guide...
