Section 2
™
The SOLUS Legend is an automotive diagnostic scan tool.
This section describes basic feature locations, how the diagnostic tool is powered
and basic specifications.
Main Topic Links

Basic Features

page 2
•
Powering the Diagnostic Tool
•
Vehicle Power page 3
–
Internal Battery Pack page 3
–
AC Power Supply page 3
–
Technical Specifications page 4
•

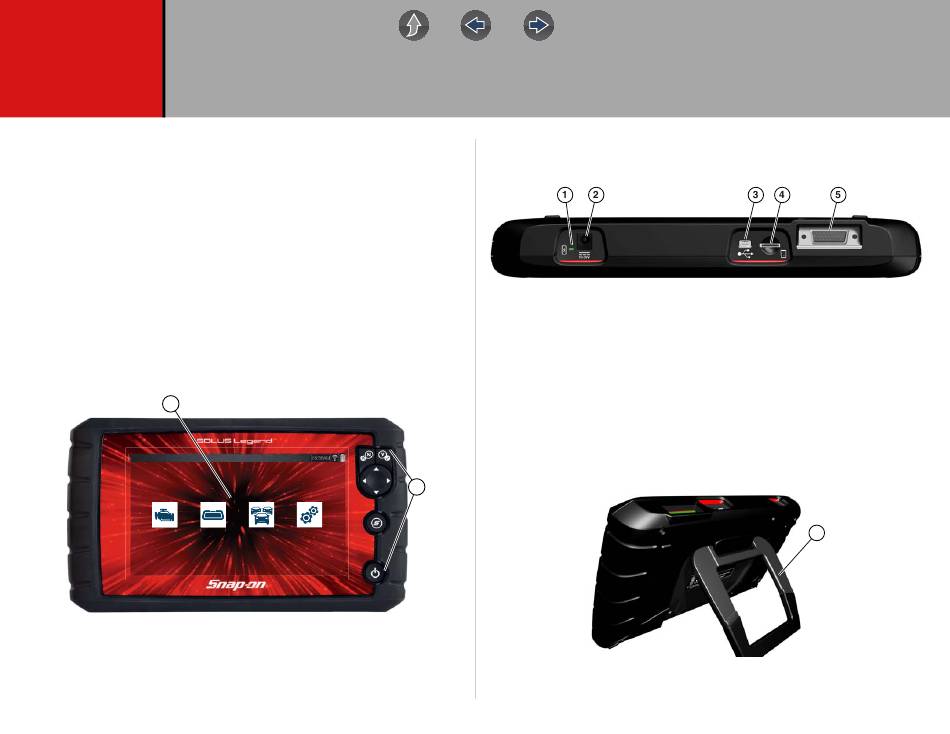

2.1 Basic Features
1
Scanner Scanner OBD-II/EOBD OBD-II/EOBD
1— Touch Screen
2— Control Panel
Figure 2-1 Front view
General Information
page 3
Previous Vehicle Tools
and Data
Connectors and jacks for data communication cables and the AC power supply are
located on the top of the diagnostic tool.
1— Battery Status Indicator LED
2— Power Supply Jack
3— Mini USB Jack
personal computer
4— Micro secure digital (uSD) Card - contains operating system programming.
IMPORTANT The uSD card must be installed for the diagnostic tool to
operate. Do not remove the uSD card while the diagnostic tool is powered
on.
5— Data Cable Connector
tool to a vehicle data link connector (DLC)
2
1— Built in-Stand
2
Figure 2-2 Top view
- AC power supply connection
- USB cable connection used to transfer saved data files to a
- Data cable connection used to connect the diagnostic
Figure 2-3 Back view
1
