Summary of Contents for Snap-On Thermal Laser

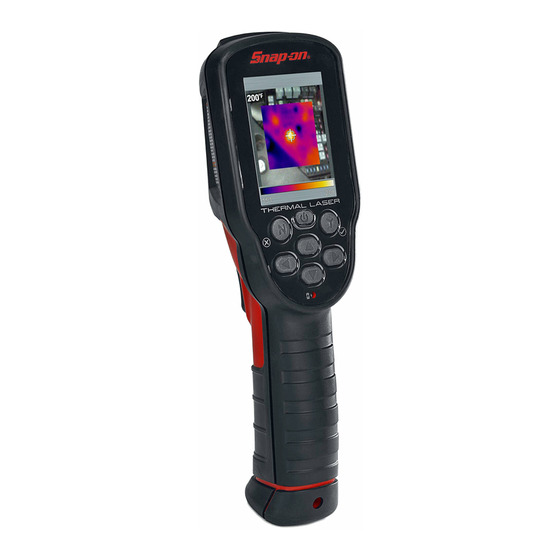

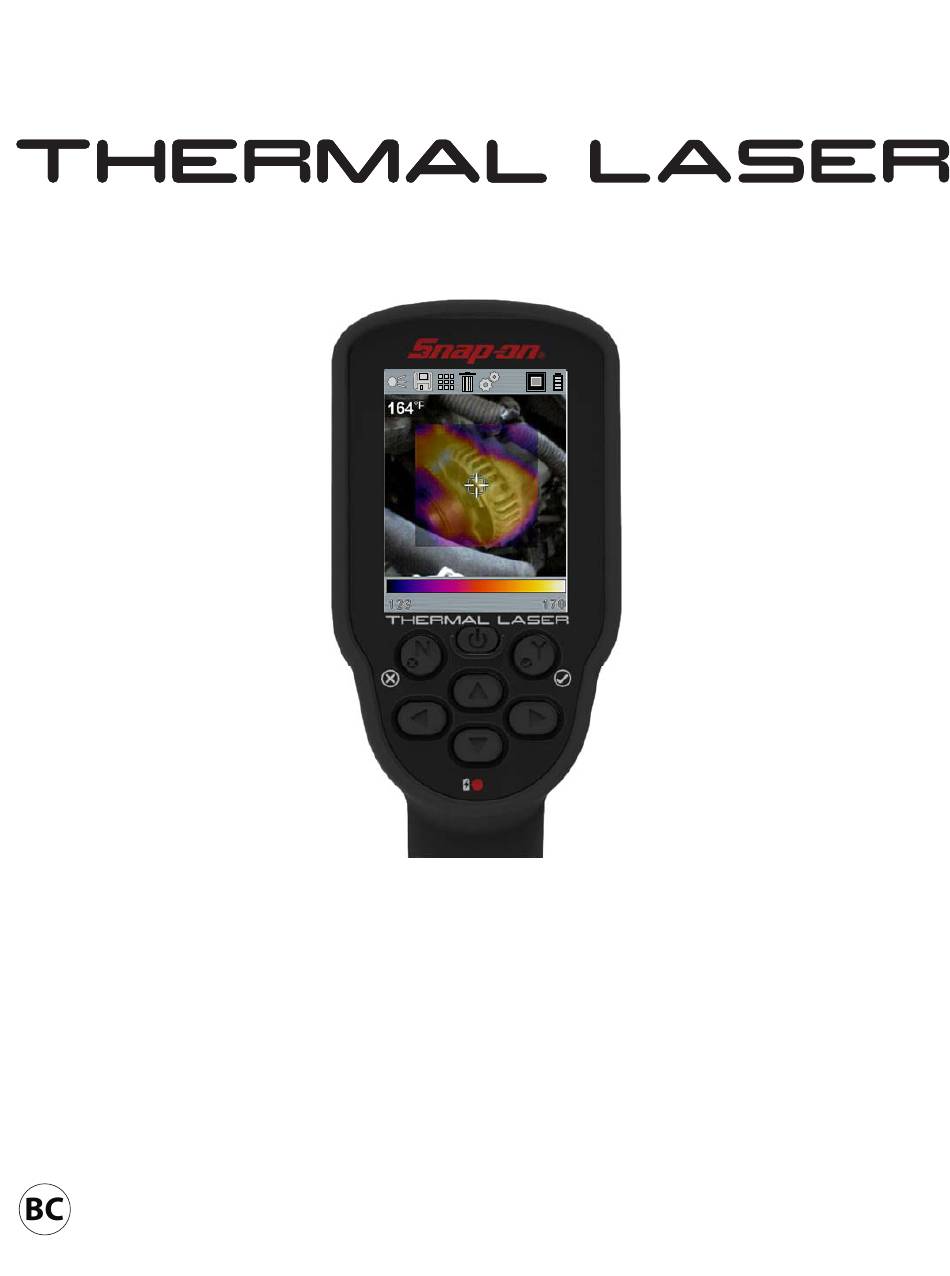

  • Page 1 User Manual...
  • Page 2 Legal Information Trademarks Snap-on is a trademark registered in the United States and other countries of Snap-on Incorporated. All other marks are trademarks or registered trademarks of their respective holders. Copyright Information © 2019 Snap-on Incorporated. All rights reserved. Third Party Acknowledgments This device contains third-party software licensed by SEGGER Microcontroller GmbH.
  • Page 3 Legal Information Product Compliance and Certification This product is certified and/or in compliance with the guidelines and regulations set forth by the following: United States and Canada Europe Australia (California Only) (U.S. and Canada) Conformité Européene California Energy Regulatory Compliance Mark (RCM) Underwriters Laboratories (UL) (European Conformity) Commission (CEC)
  • Page 4 Legal Information Customer Support Information North America Website http://diagnostics.snapon.com Phone 1-800-424-7226 E-mail diagnostics_support@snapon.com Online Contact Form https://www1.snapon.com/diagnostics/us/Contact United Kingdom Website https://www.snapon.com/diagnostics/uk Phone +44 (0) 845 6066512 E-mail https://www.snapon.com/diagnostics/uk Australia and New Zealand Website http://www.snapontools.com.au (Australia) 1800-810-581 Phone (New Zealand) 0800-762-766 E-mail sota.diagnostics@snapon.com The Netherlands and Belgium...

  • Page 5: Table Of Contents

    Contents Contents ..........................v Safety Information ......................vii Chapter 1: Using This Manual ..................... 1 Conventions..........................1 Bold Text .......................... 1 Symbols ........................... 1 Terminology ........................1 Notes and Important Messages ..................2 Hyperlinks ........................2 Chapter 2: Technical Specifications................... 3 Chapter 3: Features and Controls..................
  • Page 6 Contents Battery Pack ......................... 22 Safety Guidelines ......................22 Battery Information......................22 Battery Charging ......................22 Disposal ......................... 25 Chapter 7: Troubleshooting ....................26 General Troubleshooting Chart .................... 26...

  • Page 7: Safety Information

    Important Safety Instructions (included with the Thermal Laser) be read and understood by all persons operating, or coming into contact with the product, before operating. We suggest you store a copy of each, near the product in sight of the operator.
  • Page 8 Safety Information Safety Signal Words Safety Signal Words All safety messages contain a safety signal word that indicates the level of the hazard. An icon, when present, gives a graphical description of the hazard. Safety Signal words are: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury to the operator or to bystanders.

  • Page 9: Chapter 1 Using This Manual

    Using This Manual Chapter 1 This manual contains basic operating instructions and is structured in a manner to help you become familiar with the tool features and perform basic operations. The illustrations in this manual are intended as reference only and may not depict actual screen results, information, functions or standard equipment.

  • Page 10: Notes And Important Messages

    Using This Manual Conventions 1.1.4 Notes and Important Messages The following messages are used. Note A note provides helpful information such as additional explanations, tips, and comments. Example: NOTE: For additional information refer to... Important Important indicates a situation which, if not avoided, may result in damage to the test equipment or vehicle.

  • Page 11: Chapter 2: Technical Specifications

    IR Image Refresh Rate: < 8 times per second Accuracy at room temperature (20°C/68°F): < 0°C (32°F): ±3°C (±6°F) Thermal Laser 0°C (32°F) to 982°C (1800°F): ±2°C (±4°F) or ±3% whichever is greater. Accuracy specifications listed are under battery power. Accuracy will vary if the unit is being charged.

  • Page 12: Chapter 3 Features And Controls

    A laser spot temperature feature is included, giving you the ability to make accurate spot temperature measurements. The Thermal Laser also has the capability to capture screenshots in all viewing modes. UP▲ / DOWN▼ Buttons - change thermal / laser views LEFT◄...

  • Page 13: Chapter 4 Operation

    22 for battery pack charging instructions. Power On - To turn the Thermal Laser ON, press and hold the Power button until the screen • displays, then release. The Thermal Laser is ready for use, however to ensure optimal measurement accuracy, it is recommended to allow the Thermal Laser to “warm-up”...

  • Page 14: Using The Toolbar

    Operation Using the Toolbar 4.3 Using the Toolbar The toolbar located at the top of the screen includes menu icons and status indicators. Use the LEFT◄/ RIGHT► control buttons to highlight an active icon from the toolbar, then press the Y button to select it. Icons are feature dependent and are only active when applicable.
  • Page 15 Operation Changing Viewing Modes NOTE: When the Thermal Laser is turned on, the viewing mode that was active when the unit was turned off is resumed. Pressing the UP▲ or DOWN▼ control buttons allows you to change the viewing mode.

  • Page 16: Using Laser Spot Temperature Mode

    Operation Using Laser Spot Temperature Mode 4.5 Using Laser Spot Temperature Mode Risk of eye injury or impaired vision. Never look or stare into a laser light when it is on. • Do not point the laser into the face of someone else. •...

  • Page 17: Taking Thermal / Temperature Readings

    8. 4.6.1 More About Temperature Readings The Thermal Laser measures the emitted infrared radiation from an object(s), and then uses a known emissivity value to effectively calculate the temperature value displayed on the screen. To accurately calculate temperature from infrared radiation, the emissivity value of the object...

  • Page 18: Saving And Managing Screenshots

    4.7 Saving and Managing Screenshots 4.7.1 Saving Screenshots 1. Point the Thermal Laser at the object to be measured. 2. Pull and release the trigger. 3. Press the Y button to save the screenshot image. Press the N button to continue without saving the screenshot.

  • Page 19: Deleting Screenshots

    The Thermal Laser can be connected to a PC using the supplied USB cable. This allows you to transfer saved screenshots to the PC. 1. Open the protective cover on top of the Thermal Laser, and connect the USB cable to the USB jack.
  • Page 20 (Figure 4-11). 6. Select the files to copy / move from the Thermal Laser to your PC. 7. When finished, (if required) perform any Windows procedures to “Safely Remove Hardware or Eject Media” to stop communication with the Thermal Laser.

  • Page 21: Using The Led Spotlight

    Operation Using the LED Spotlight 4.8 Using the LED Spotlight An LED spotlight is provided to illuminate areas of low light. Select the spotlight icon in the toolbar (Figure 4-12), then press the Y button to turn the LED spotlight ON/OFF. Figure 4-12 The spotlight has three intensity levels, to change the light level, see Spotlight Intensity...

  • Page 22: Chapter 5 Settings

    Settings Chapter 5 5.1 Main Topic Links The following topics are described in this section: Color Palette – Brightness – Language – Automatic Shutdown – Navigation Tips – Spotlight Intensity – Advanced – Temperature Emissivity Object Distance About (Factory Reset) 5.2 Settings Menu 1.

  • Page 23: Color Palette

    Settings Settings Menu Color Palette Brightness Temperature Power Emissivity Figure 5-2 5.2.1 Color Palette Different color palette themes can be used to help define (enhance) object temperatures onscreen by varying color ranges, contrast and brightness. The Color Palette setting allows you to choose one of five color palette presets (Figure 5-3).

  • Page 24: Brightness

    Settings Settings Menu 5.2.2 Brightness The Brightness setting allows you to set the lighting level of the display (Figure 5-4). Use the UP▲/ DOWN▼ control buttons to change the brightness setting. Each press incrementally changes the lighting level by 10%. Figure 5-4 5.2.3 Language The Language setting allows you to select your preferred language...

  • Page 25: Automatic Shutdown

    5.2.5 Navigation Tips Onscreen navigational tips are provided for select menu navigation procedures to help you become familiar with the Thermal Laser menus. Each Tip will appear only once after turning on the Thermal Laser. The Navigation Tips setting allows you to turn on (enable), or turn off (disable) the automated...

  • Page 26: Spotlight Intensity

    Settings Settings Menu 5.2.6 Spotlight Intensity The Spotlight Intensity setting allows you to adjust the brightness of the LED spotlight (Figure 5-8). Three settings are provided: Low (Eco) - 7 lumens • Medium - 12 lumens • High - 22 lumens (default setting) •...
  • Page 27 Choose the most applicable setting for your application. The default setting is (0.95) (Standard). The Thermal Laser measures and displays the emitted infrared radiation from an object(s). To accurately calculate temperature (from infrared radiation), the emissivity value of the object being measured must be entered.
  • Page 28 Settings Settings Menu Object Distance The Object Distance setting allows you to optimize the accuracy of the Thermal Laser, by setting the approximate distance to the object you are measuring. Options: Near - 1 to 3 feet (30.48 to 91.44 cm) •...

  • Page 29: Chapter 6 Maintenance

    Battery Charging Disposal – 6.2 Storage To protect your Thermal Laser, store it in safe area free from dust, moisture and excessive temperatures. 6.3 Cleaning Periodically perform the following tasks to keep your Thermal Laser in proper working order: Check the housing, display, and controls for dirt and damage before and after each use.

  • Page 30: Battery Pack

    To prolong the life of your battery, turn off the Thermal Laser when not in use. The Thermal Laser should be used within a short period of time (about 30 days) after charging to prevent loss of capacity due to self-discharging.
  • Page 31 The battery pack will also charge when the USB cable is connected to a PC (using the power supplied from the PCs USB connection). The battery charge indicator LED is located on the front of the Thermal Laser below the DOWN▼ control button (Figure 6-2).
  • Page 32 Maintenance Battery Pack Battery Charging Level Indicator Battery Charge Indicator - red = charging, green = charged Figure 6-2 Icon Function Indicates power is being supplied by the internal battery pack. Horizontal bars diminish as the battery discharges. When the battery charge level drops to approximately 10 minutes of power left, the icon will flash on/off as a reminder to connect the USB power supply adapter.

  • Page 33: Disposal

    Maintenance Battery Pack 6.4.4 Disposal This unit contains a lithium-ion battery. Always dispose of batteries according to your local regulations. As disposal regulations vary across different countries and regions, always contact your local or regional recycling center for battery disposal and recycling information. The battery pack, while non-hazardous waste, does contain recyclable materials.

  • Page 34: Chapter 7: Troubleshooting

    Wait a few seconds and retry, if still no response turn the unit off then back on. When the Thermal Laser is connected by USB cable to a PC, Error message displayed - saving and viewing images is disabled. If the screen capture trigger “Disconnect the USB cable...
