MasterCraft 054-8263-8 Instruction Manual

MasterCraft 054-8263-8 Instruction Manual

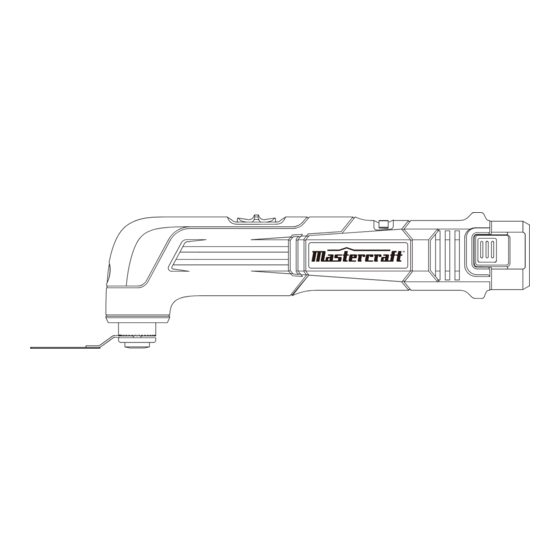

12v max lithium-ion compact cordless multi-crafter kit

Advertisement

Quick Links

model no. 054-8263-8
bs
IMPORTANT:
Please read this manual carefully before running this cordless
multi-use kit and save it for reference
12V MAX* LITHIUM-ION
COMPACT CORDLESS
MULTI-CRAFTER KIT
INSTRUCTION
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 054-8263-8 and is the answer not in the manual?

Questions and answers

Summary of Contents for MasterCraft 054-8263-8

  • Page 1 054-8263-8 12V MAX* LITHIUM-ION COMPACT CORDLESS MULTI-CRAFTER KIT IMPORTANT: INSTRUCTION Please read this manual carefully before running this cordless MANUAL multi-use kit and save it for reference...
  • Page 2 headline bars headline bars continuation tabs notes continuation tab warnings notes warnings...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Technical specifications General power tool safety warnings General safety warnings for battery pack Symbols Key parts diagram Accessories Parts list Operating instructions Application Working hints for your tool Maintain tools with care Warranty information NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928 SAVE THESE INSTRUCTIONS This manual contains important safety and operating instructions.
  • Page 4: Technical Specifications

    054-8263-8 | contact us 1-800-689-9928 TECHNICAL SPECIFICATIONS Charger voltage 120 V 60 Hz AC Battery 12 V max* (1.5 Ah) lithium-ion Variable speeds 0-16,000 OPM (no load) Oscillating angle 3.2° Battery charger 1-hour, diagnostic Replacement batteries 054-3207-4 (1.5 Ah)
  • Page 5 WORK AREA SAFETY • Keep work area clean and well lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable • liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. •...
  • Page 6 054-8263-8 | contact us 1-800-689-9928 If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) • protected supply. Use of an RCD reduces the risk of electric shock. PERSONAL SAFETY •...
  • Page 7 the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations other than those intended could be hazardous. BATTERY TOOL USE AND CARE •...
  • Page 8: General Safety Warnings For Battery Pack

    • CAUTION – The battery used in this device may present a risk of fire or chemical burn if mistreated. Replace battery with (Mastercraft) only. Use of another battery may present a risk of fire or explosion notes •...
  • Page 9: Symbols

    SYMBOLS To reduce the risk of injury, user must read instruction manual WARNING Wear ear protection Wear eye protection Wear dust mask Do not expose to rain or water Do not burn Li-ion battery. Separate collection, and battery must be recycled...
  • Page 10: Key Parts Diagram

    054-8263-8 | contact us 1-800-689-9928 KEY PARTS DIAGRAM Description Description On/off switch UniversalFit accessory interface* Variable speed dial LED light Battery Flange Battery latch Allen key continuation tabs Venting slots notes warnings * Works with other oscillating tool brands’ accessories.
  • Page 11: Accessories

    ACCESSORIES 1-hour battery charger 12V max* (1.5 Ah) lithium-ion battery Universal accessory adaptor End-cutting blade High-speed steel semi-circle blade Detail sanding pad Sandpaper 40-grit 80-grit 120-grit Hex wrench...
  • Page 12: Parts List

    054-8263-8 | contact us 1-800-689-9928 PARTS LIST Description Qty. Description Qty. Screw Screw Saw blade Limit plate Retaining ring End bell Fixup block Motor continuation tabs Spring Switch button Output spindle Switch Ball bearing race Bracket Block Battery pack (Li-ion, 1.3 Ah, 12 V)
  • Page 13 BATTERY A) BATTERY CHARGING The battery charger supplied is matched to the Li-ion battery installed in the machine. Do not use another battery charger. The Li-ion battery is protected against deep discharging. When the battery is empty, the machine is switched off by means of a protective circuit.
  • Page 14 054-8263-8 | contact us 1-800-689-9928 Fig.A • Loosen the flange Use the hex key to rotate the flange clockwise. (Fig. B) • Insert accessories Insert the accessory onto the Universal Fit Accessory Interface. (Fig. C) continuation tabs •...
  • Page 15 Fig.D 2. MOUNTING / CHANGING THE SANDING SHEET (Fig. E) Align the sanding sheet and press it onto the sanding pad by hand. Firmly press the power tool with the sanding sheet against a flat surface and briefly switch the power tool on. This provides for good adhesion and prevents premature wear.
  • Page 16: Application

    054-8263-8 | contact us 1-800-689-9928 APPLICATION The workpiece must be clamped tightly before it is cut. Universal Fit accessories available from Mastercraft Accessories work with other competitive tools. continuation tabs continuation tabs Function Accessory...
  • Page 17 The saw blade lasts longer if the wear is distributed evenly. To ensure an even distribution, loosen the saw blade, rotate it and retighten firmly. Cut/sand with a constant movement and light pressure. Heavy pressure does not increase the cut/removal rate – the accessory merely wears faster. NOTE: When plunging and sawing use a slight pendulum motion, to allow sufficient chip removal.
  • Page 18: Working Hints For Your Tool

    054-8263-8 | contact us 1-800-689-9928 WORKING HINTS FOR YOUR TOOL If your power tool becomes too hot, especially when used at low speed, set the speed to maximum and run it with no-load for 2-3 minutes to cool the motor. Avoid prolonged usage at very low speeds. Always keep the blade sharp.
  • Page 19: Maintain Tools With Care

    MAINTAIN TOOLS WITH CARE Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust.
  • Page 20 054-8263-8 | contact us 1-800-689-9928 This Mastercraft product is guaranteed for a period of three (3) years from the date of original retail purchase, against defects in materials and workmanship. Subject to the conditions and limitations described below, this product, if returned to us with proof of purchase within the stated warranty period and if covered under this warranty, will be repaired or replaced (with the same model, or one of equal value or specification), at our option.
