Summary of Contents for MasterCraft 054-0277-4

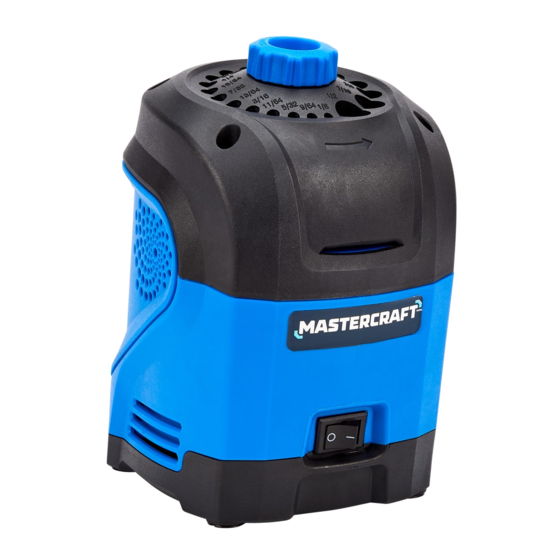

- Page 1 DRILL BIT SHARPENER Model no. 054-0277-4 IMPORTANT: INSTRUCTION Please read this manual carefully before running this MANUAL drill bit sharpener and save it for reference.
- Page 3 TABLE OF CONTENTS Safety Instructions Operating Instructions Part List Inspection and Maintenance Technical Data Troubleshooting & Warranty Information SAVE THESE INSTRUCTIONS This manual contains important safety and operating instructions. Read all instructions and follow them with use of this product.
- Page 4 054-0277-4 | contact us 1-800-689-9928 IMPORTANT Read and follow all safety and operating instructions of the power tool before use. READ AND UNDERSTAND ALL INSTRUCTIONS When using electrical tools, safety precautions should always be followed including the following: Work area safety •...
-
Page 5: Power Cord Safety
Power cord safety • A short power supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord. • Longer extension cords are available and may be used if care is exercised in their use. •... - Page 6 054-0277-4 | contact us 1-800-689-9928 Check before starting the device! DANGER! RISK OF INJURY! The device may only be put into operation if there are no defects. If a part is defective, it must be replaced before the device is used again.
- Page 7 Step 1. Make sure that On/Off Switch (3) is in the off position, then plug in the device. Step 2. Clean the drill bit to be sharpened then insert to appropriate hole of Drill Holder (2) on the top. The specification can be read from the cover. Refer to Figure 1.
-
Page 8: Part List
054-0277-4 | contact us 1-800-689-9928 PART LIST Assembly Diagram Part Description Part Description Adjustment Knob Connector Screw Motor Right Cover Index Gear Position Plate Motor Screw Label Lock Nut Under cover Wheel Plate Cable Grinding Wheel Switch Wheel Base... -
Page 9: Maintenance
WARNING! RISK OF INJURY! • TO PREVENT SERIOUS INJURY FROM FAILURE: Do not use if damaged. If abnormal noise or vibration occurs, have the problem corrected before further use. • BEFORE EACH USE, inspect the general condition of the electric sharpener. Check for loose screws, misalignment or binding of moving parts, cracked or broken parts, damaged electrical wiring, and any other condition that may affect its safe operation. - Page 10 054-0277-4 | contact us 1-800-689-9928 Nominal voltage 120V~, 60Hz Capacity 90 W Speed 1500 RPM Diameter of cutting disc 3" Applications on drill bits 1/8 – 1/2" (3.1-12.7mm) (1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32",...
-
Page 11: Troubleshooting
TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. This Mastercraft product carries a one (1) year warranty against defects in workmanship and materials. This product is not guaranteed against wear or breakage due to misuse and/or abuse.
