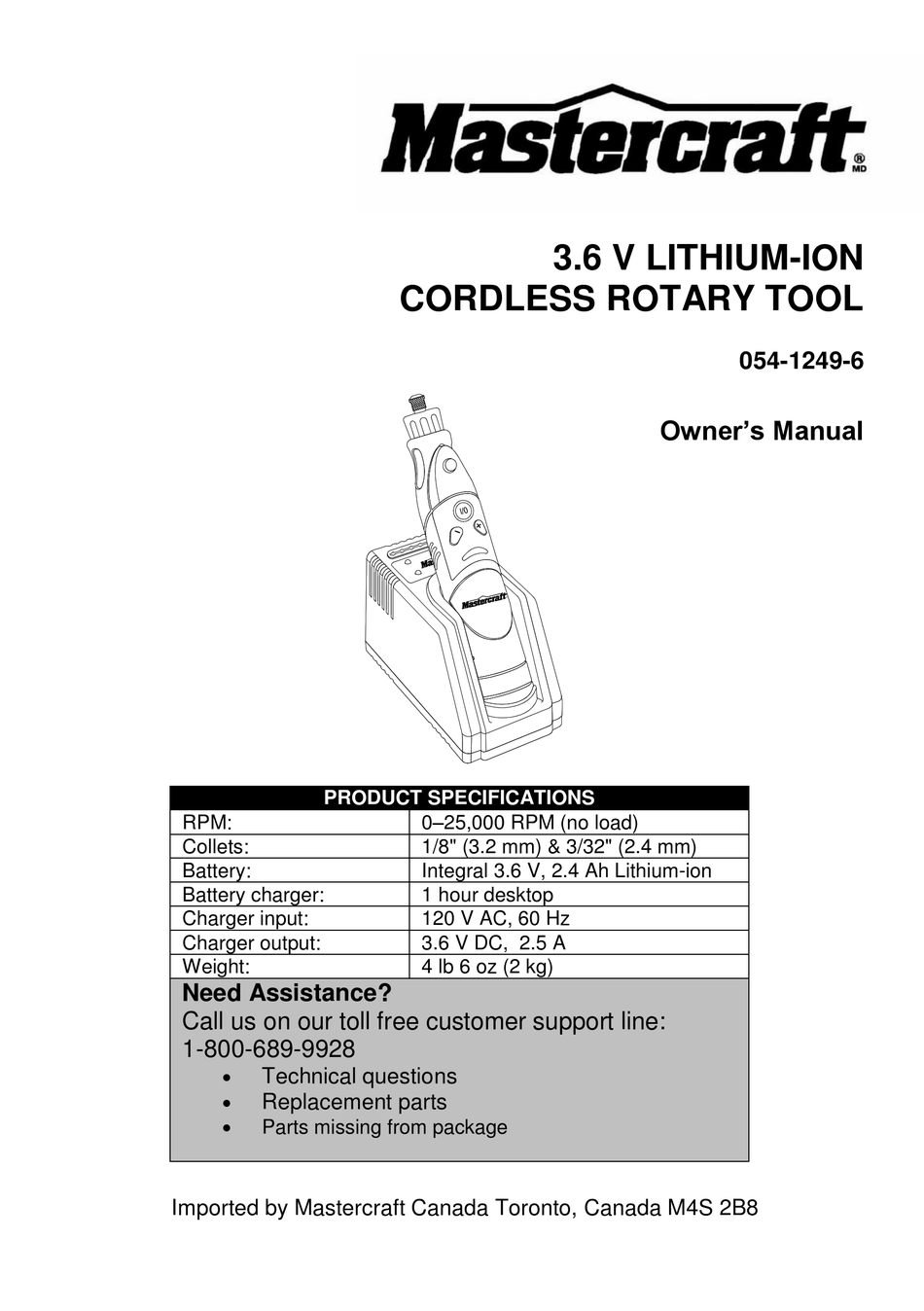

PRODUCT SPECIFICATIONS

RPM:
Collets:
Battery:
Battery charger:
Charger input:
Charger output:
Weight:
Need Assistance?
Call us on our toll free customer support line:
1-800-689-9928
Technical questions
Replacement parts
Parts missing from package
Imported by Mastercraft Canada Toronto, Canada M4S 2B8
3.6 V LITHIUM-ION
CORDLESS ROTARY TOOL
0–25,000 RPM (no load)
1/8" (3.2 mm) & 3/32" (2.4 mm)
Integral 3.6 V, 2.4 Ah Lithium-ion
1 hour desktop
120 V AC, 60 Hz
3.6 V DC, 2.5 A
4 lb 6 oz (2 kg)
054-1249-6
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 054-1249-6 and is the answer not in the manual?

Questions and answers

Related Manuals for MasterCraft 054-1249-6

Summary of Contents for MasterCraft 054-1249-6

  • Page 1: Product Specifications

    3.6 V DC, 2.5 A Weight: 4 lb 6 oz (2 kg) Need Assistance? Call us on our toll free customer support line: 1-800-689-9928  Technical questions  Replacement parts  Parts missing from package Imported by Mastercraft Canada Toronto, Canada M4S 2B8...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Product specifications ………….……………………………………………………. Table of contents ……………………………………………………………………... General safety warnings …………………………………………………………….. 3–4 Eye, ear & lung protection …………………………………………………………… 3–4 Electrical safety ………………………………………………………………………. Power tool safety ……………………………………………………………………... 5–6 General safety rules ………………………………………………………………….. Work area ………………………………………………………………….………….. Electrical safety ………………………………………………………………………. Personal safety ………………………………………………………………………..

  • Page 3: General Safety Warnings

    GENERAL SAFETY WARNINGS CAUTION: Before using this tool or any of its accessories, read this manual and follow all Safety Rules and Operating Instructions. This instruction manual includes the following:  General Safety Rules  Specific Safety Rules and Symbols ...

  • Page 4: Electrical Safety

    GENERAL SAFETY WARNINGS WEAR A DUST MASK THAT IS DESIGNED TO BE USED WHEN OPERATING A POWER TOOL IN A DUSTY ENVIRONMENT. WARNING: Dust that is created by power sanding, sawing, grinding, drilling, and other construction activities may contain chemicals that are known to cause cancer, birth defects, or other genetic abnormalities.

  • Page 5: Power Tool Safety

    POWER TOOL SAFETY GENERAL SAFETY RULES Avoid contact between the operator's body and grounded surfaces such as pipes, WARNING: radiators, ranges, and refrigerators. There Read and understand is an increased risk of electric shock if the all instructions. Failure to follow all operator's body is grounded.

  • Page 6: Use And Care Of Power Tools

    POWER TOOL SAFETY PERSONAL SAFETY – cont’d Disconnect the plug from the outlet before making any adjustments, changing Avoid accidental start-ups. Verify that the accessories, or storing the tool. Such switch is in the OFF position before preventive safety measures reduce the risk plugging in the tool.

  • Page 7: Specific Safety Rules

    SPECIFIC SAFETY RULES WARNING: Always wear safety goggles and a dust Know your cordless mask. Use only in a well-ventilated area. rotary tool. Do not plug in the charger Using personal safety devices and working until you have read and understand this Owner’s Manual.

  • Page 8: Battery And Charger Safety

    BATTERY AND CHARGER SAFETY WARNING: Do not operate the charger if it has The lithium-ion battery received a sharp impact, been dropped or is an integral part of the tool. If it no longer otherwise damaged in any way. Have a charges properly or is damaged, the tool qualified technician examine the charger and battery must not be discarded as...

  • Page 9: Symbols

    SYMBOLS WARNING: Some of the following symbols may appear on the cordless rotary tool. Study these symbols and learn their meaning. Proper interpretation of these symbols will allow for more efficient and safer operation of this tool. Direct current Volts Amperes No load speed Alternating or direct...

  • Page 10: Know Your Rotary Tool

    KNOW YOUR CORDLESS ROTARY TOOL ON/OFF button Spindle locking Speed increase Collet button button Head Speed Speed reduction indicator LED’s switch button worklight storage Battery charging LED (red) Battery charged LED (green) Charging receptacle Air vents Charging stand...

  • Page 11: Accessories And Contents

    ACCESSORIES AND CONTENTS AVAILABLE ACCESSORIES ROTARY TOOL COMPONENTS DESCRIPTION WARNING: Use only accessories Rotary tool that are recommended for this cordless Charging stand rotary tool. Follow the instructions that Blow moulded case accompany the accessories. The use of Accessory case any other accessories may result in General purpose injury to the operator or damage to the...

  • Page 12: Contents

    CONTENTS...
  • Page 13 ACCESSORY CASE CONTENTS Illustration Description Shape Sanding disc Round Abrasive buff Round Grinding stone Round Cylindrical with Screw mandrel screw Steel brush Radial Bristle brush Radial Steel brush Axial Bristle brush Axial With sanding Drum sander band – small With sanding Drum sander band –...

  • Page 14: Accessory Description And Use

    ACCESSORY CASE CONTENTS Illustration Description Shape Diamond wheel Taper point Diamond wheel Spherical point Diamond wheel Cylindrical – small point Diamond wheel Cylindrical - large point Collet wrench ACCESSORY DESCRIPTION & USE There are many different types of accessories that can be used with this rotary tool. The following charts identify the most popular accessories and their uses.
  • Page 15 ACCESSORY DESCRIPTION & USE Accessory Description Accessory Use Collet For use with accessories. Collet wrench For tightening & loosening collet nut, screw of drum sanders Dressing stone Cleans grinding wheels and stones. Shapes or reshapes stones for desired applications. Silicon carbide Designed to work well on stone, glass, ceramics, ...

  • Page 16: Assembly And Operation

    ASSEMBLY AND OPERATING CHARGING THE BATTERY Place the charging stand (1) near a 120 V, 60 Hz electrical outlet (Fig. 1). Plug the battery charging stand plug into a 120 V, 60 Hz wall receptacle. Place the rotary tool (2) into the charging stand.

  • Page 17: On/Off Switch

    ASSEMBLY AND OPERATING ON/OFF SWITCH The ON/OFF switch controls both the worklight (Fig. 2) and the motor of the tool. To turn the rotary tool ON, press the ON/OFF switch (2) once (Fig. 3). NOTE: When the ON/OFF switch is pressed once, the worklight will turn ON.

  • Page 18: Changing The Collet

    ASSEMBLY AND OPERATING CHANGING THE COLLET Some accessories require the use of different sized collets. Collet sizes can be 1/16” (1.6 mm), 3/32” (2.4 mm) and 1/8” (3.2 mm). It is important to ensure that the collet size matches the accessory. NOTE: This tool includes two of the most commonly used collets: 3/32”...

  • Page 19: Installing Accessories

    ASSEMBLY AND OPERATING INSTALLING ACCESSORIES Turn the switch OFF. Depress the spindle lock button (1) and slowly turn the collet nut (2) until the spindle lock button locks the spindle (Fig. 5). While holding the spindle lock button down, turn the collet nut counter clockwise until the collet is loose inside the collet nut.

  • Page 20: Selecting Proper Speeds

    ASSEMBLY AND OPERATING WARNING: Have you read “GENERAL SAFETY WARNINGS”, “POWER TOOL SAFETY”, “SPECIFIC SAFETY RULES”, “BATTERY AND CHARGER SAFETY” and “SYMBOLS” on pages 3, 4, 5, 6, 7, 8 & 9 of this Manual? If not, please read them now before you operate this rotary tool.

  • Page 21: Maintenance

    MAINTENANCE LITHIUM-ION BATTERY GENERAL PERFORMANCE WARNING: When servicing this Lithium-ion rechargeable batteries tool, use only identical replacement generally provide superior performance to parts. The use of any other part may nickel-cadmium batteries when used in create a hazard or cause product power tools.

  • Page 22: Battery Pack Removal And Preparation For Disposal

    MAINTENANCE BATTERY PACK REMOVAL AND PREPARATION FOR RECYCLING To preserve our natural resources, please recycle or dispose of batteries properly. The batteries supplied with this tool may contain chemicals and metals that are harmful to the environment. Never dispose of rechargeable batteries in your normal household garbage or in landfill sites because they will add to the pollution of the environment.

  • Page 23: Exploded View

    EXPLODED VIEW...

  • Page 24: Parts List

    PARTS LIST ® WARNING: When servicing, use only Mastercraft replacement parts. The use of any other parts may create a safety hazard or cause damage to the cordless rotary tool. Any attempt to repair or replace electrical parts on this cordless rotary tool may create a safety hazard unless repairs are performed by a qualified technician.

  • Page 25: Warranty

    3-Year Limited Warranty This Mastercraft product is guaranteed for a period of 3 years from the date of original retail purchase against defects in workmanship and materials, except for the following components: Component A: Batteries, chargers and carrying cases, which are guaranteed for a period of 2 years from the date of original retail purchase against defects in workmanship and materials;...
  • Page 26 Mastercraft is a superior line of products selected for their workmanship and materials. These products are designed to meet rigorous quality and performance standards, and are approved by our Quality Assurance laboratory.
