Summary of Contents for jbc PHNE-K

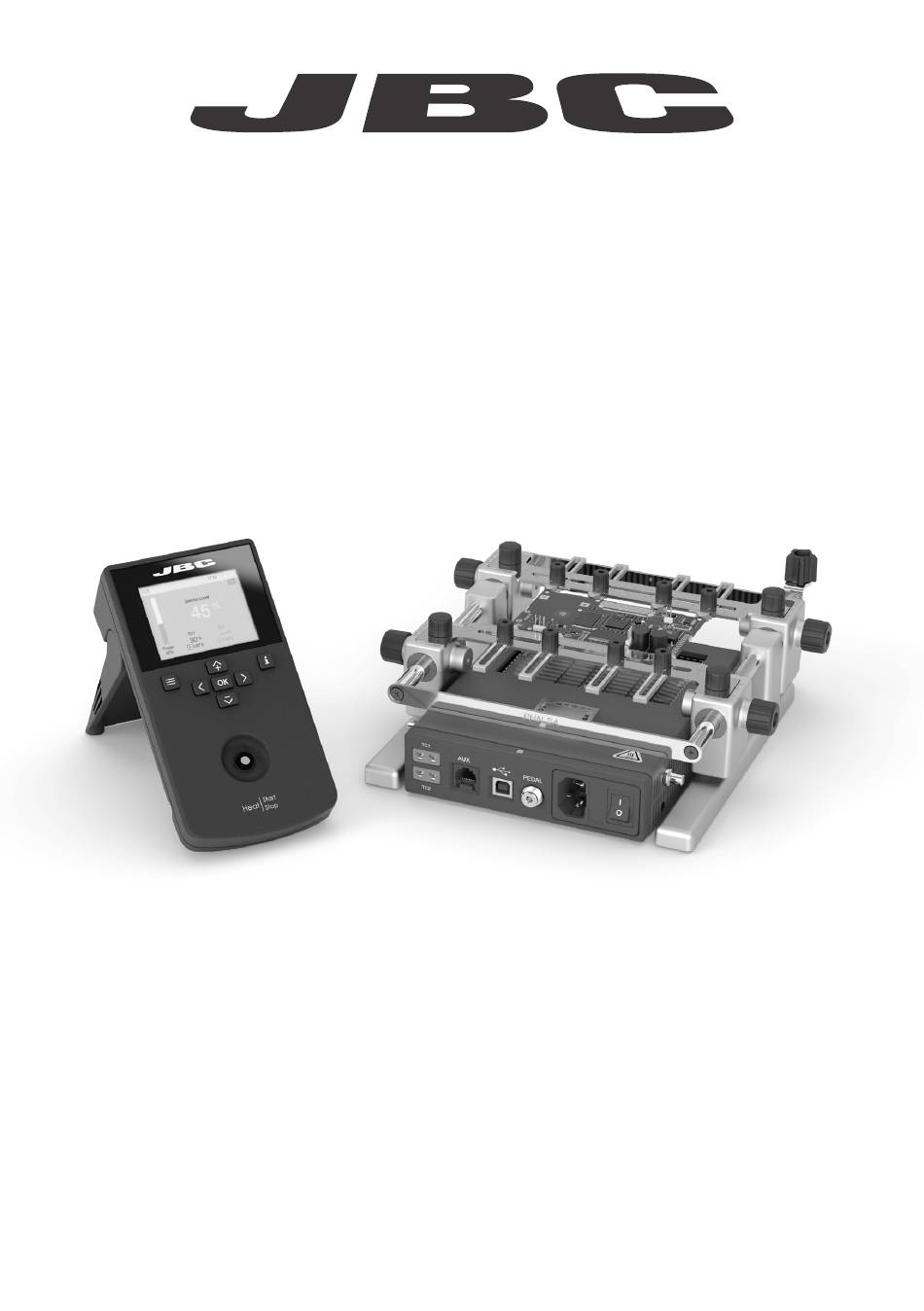

- Page 1 INSTRUCTION MANUAL PHNE-K Nano Preheater Set...
-
Page 2: Packing List
Packing List The following items are included: Nano Preheater ........1 unit Nano PCB Support..,,,,,,,,,,,,,,,,,,,,,,.. 1 unit Ref. PHN-SA Console ......1 unit RJ45 Cable ....1 unit Power Cord .....1 unit Ref. ACE-A Ref. 0019914 Ref. 0023715 (120V) 0023714 (230V) 0024092 (100V) Kapton Tape .... -
Page 3: Features And Connections
w w w.jbctools.com Features and Connections Heater Unit Heating Area Led Status Indicator: ·Blue: Ready to Use ·Green: Working Fixing Brackets for ·Red: System Error Nano PCB Support Thermocouple Connectors x2 Main Switch (Type K) RJ45 Connector Power Socket to Console USB-B Connector Pedal Connector Button for Foot... -
Page 4: Height Adjustment
Height Adjustment It allows adjustment for 3 heights between the PCB and the Heating Area of the PHNE-A Preheater. Unscrew these knobs to place the support in the lowest level Low level 28mm Medium level 50mm Use the fixing brackets to place the support in the medium and the high level High level... - Page 5 w w w.jbctools.com Fast PCB Replacement The support lets you replace PCBs of the same batch fast and easily. Use the sliding guides to change the PCBs. Removing the PCB Loosen one sliding guide, pull back and lift out the PCB. Spring Guide Spring Guide Knob Spring...
-
Page 6: Work Screen
Work Screen The Console offers an intuitive user interface which provides quick access to station parameters. 14:15 Status Bar 14:15 º Status Indicator Instant Power Selected 120 º º TC1 Current Supplied to and Selected Heater Temperature º Selected 120 º... -
Page 7: Recommended Guidelines
w w w.jbctools.com Setting Thermocouples Function Select Thermocouples from the Work mode menu to set them up. The thermocouples (TC) can work in three diferent ways depending on what is needed. · Control: the unit mantains the selected temperature. · Protection: the Heater Unit stops if the TC reaches the selected temperature. ·... -
Page 8: Work Mode
14:15 Selected power Work Mode Temperature Mode Select Temp. mode from the Work mode menu. In this mode the heater unit maintains the selected º º º º temperature for the TC1 thermocouple as long as the other TC’s do not reach the control/protection Power temperature limit. - Page 9 w w w.jbctools.com Profile Modes Select Profile Mode from the Work Mode Menu. In this mode the heater unit regulates the temperature of the TC1 thermocouple according to the selected profile as long as the other TCs do not reach the control/protection temperature limit. 14:15 PROFILE1 Stop...
-
Page 10: Profile Editor
JBC Set Profiles There are 3 profiles predefined by JBC: A, B and C. The difference between them is the number of steps: 2, 3 or 4. The thicker your PCB is and the more layers it contains, the more steps are needed to obtain a gradual warming. -
Page 11: Process Analysis
w w w.jbctools.com Process Analysis By pressing Graphics in the main MENU, temperature of TC1 thermocouple and power fi gures in real time are displayed. Graphics 14:15 Power (%) Temperature (ºC) Power [%] Ext. Temp [ºC] Switch Y Axis Between Power and Temperature System Notifications The following icons will be displayed on the screen’s status bar. - Page 12 Insert a USB flash drive into the USB-A connector to export / import profiles. Update the Station Software 1. Download the JBC Update File from 2. Insert the USB flash drive to the console. www.jbctools.com/software.html and save The icon is diplayed while updating.
-
Page 13: Maintenance
- Only if it is absolutely necessary and if cleaning with isopropyl alcohol (IPA) is not enough, it is recommended to use a scraper to remove dirt in the glass area. º º º º Power - Replace any defective or damaged parts. Use original JBC spare parts only. C 100 P 100 P 100 º º º... - Page 14 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than PCB preheating. Incorrect use may cause fire. - The mains cable must be plugged into approved bases. Make sure that it is properly grounded before use.
-
Page 15: Specifications
- Temperature Range: 50 - 250 °C / 120 - 482 ºF - Temperature Measurement: Thermocouple type K - JBC Set Temperature Profiles: 3 profiles (2, 3 or 4 steps) - User Profiles: 20 (up to 6 steps for each) - Page 16 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
