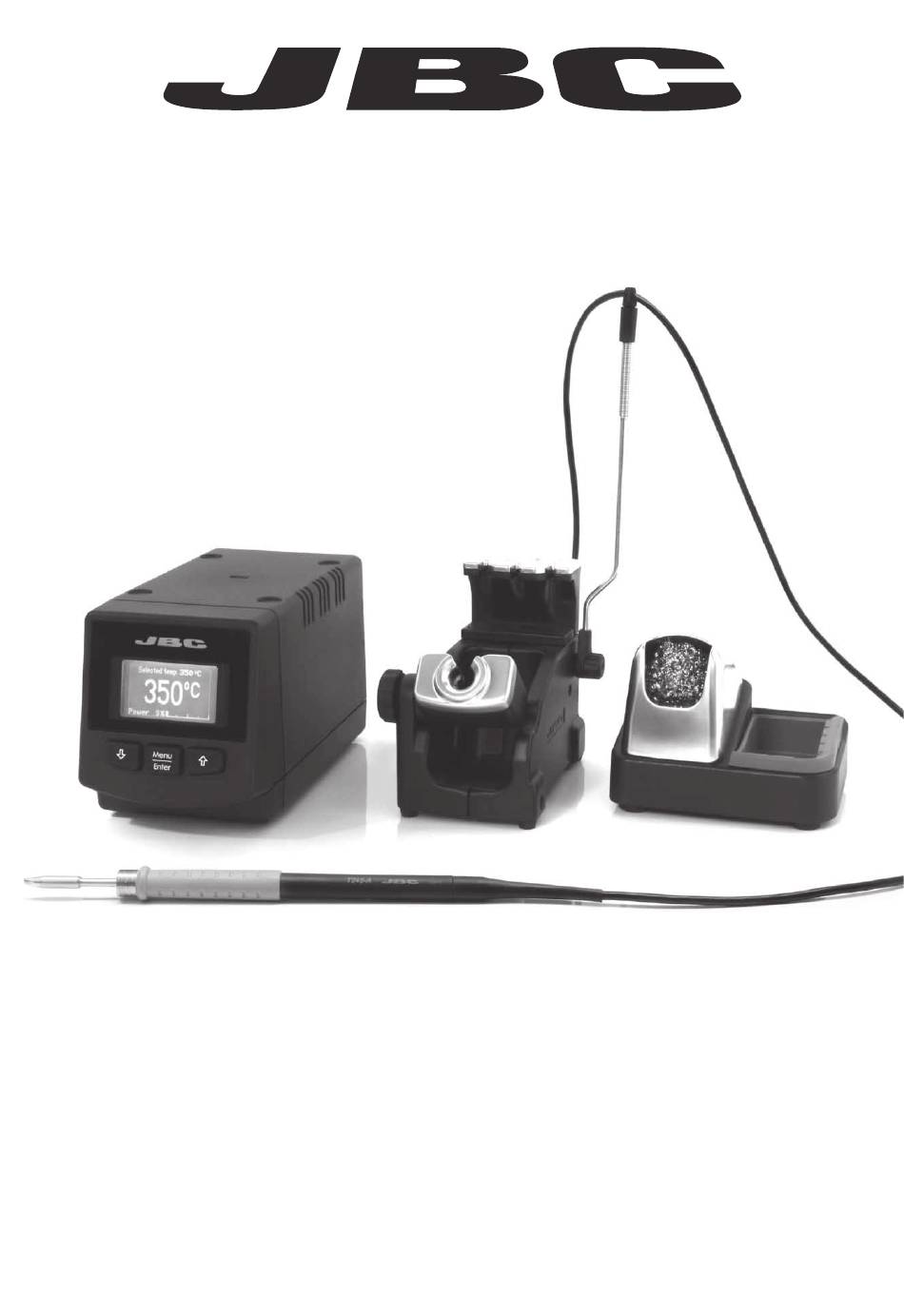

- Page 1 www.jbctools.com English Premium Soldering station Ref. DIT-D...
- Page 3 w w w.jbctools.com Packing List The following items should be included: DI Control Unit ........1 unit Sponge ............1 unit Stand ............1 unit Cartridge ..........1 unit Handpiece ..........1 unit Stand Cable connection ....1 unit Tip Cleaning Stand ....... 1 unit Power Cord ..........
- Page 4 Features DI Control Unit Ref. DI-1D (120V) DI-2D (230V) DI-9D (100V) Stand Cable connection Desoldering Pump connection Equipotential connector Power Cord Main switch Socket Fuse Stand Ref. AD-SD Handpiece Ref. T245-A...
- Page 5 Update the station software via USB connection: Cable USB AB JBC Manager www.jbctools.com/manager.html Manage and monitor as many stations as your Windows PC supports by using the JBC Manager. You can export data to another PCs. any JBC station Cable...
- Page 6 Operation The JBC Exclusive Heating System This revolutionary technology is able to recover the tip temperature extremely quickly. This allows the user to work at a lower temperature. As a result, the tip life increases x5 times. 1. Work 2. Sleep 3.
- Page 7 w w w.jbctools.com Process Control Work Screen Displays a specific fixed temp. Fixed temp. 3 5 0 Shown when you have Levels ºC 2 7 0 3 5 0 4 0 0 selected temp. levels. Selected temp. 3 5 0 The work screen provides useful information of tool status in real time.
- Page 8 Stand Cable collector Keeps working area free of cable. Quick tip changer The cartridge extractor / inserter system permits switching cartridges without interrupting your work. Adjustable tool holder Adjustable Suits your work position. Cable collector...
- Page 9 w w w.jbctools.com Changing cartridge Save time and change cartridges safely without switching the station off. 1. Removing 2. Inserting 3. Fixing Place the handpiece in the Place the handpiece on top Press the cartridge* to the extractor and remove the of the new cartridge, press fixing holes according to the cartridge.
- Page 10 Compatible Handpieces For precision uses Work with C210 Cartridge range Precision Handpiece Ref. T210-A Precision Blue Grip Handpiece Ref. T210-PA This allows you to differentiate the handpiece used in soldering jobs with leaded alloys from the lead-free soldering jobs. For general uses Work with C245 Cartridge range Handpiece Ref.
- Page 11 w w w.jbctools.com For greater demands Important: You can work with C245 Cartridge Range and only C470 Cartridge Range when is used with HD station. Handpieces for intensive soldering jobs requiring a continuous high thermal power. Soft touch and anti-slip grips. They feature a larger width grip and a screw which fixes the cartridge and prevents its rotation and movement.
- Page 12 Tip Cleaning stand Improve thermal transfer by cleaning the tip after each solder joint. Brass wool Sponge Ref. CL6210 Ref. S0354 Very effective cleaning The least harmful cleaning method. It leaves a small layer method. Keep the sponge damp of solder on the tip to prevent with destilled water when working oxidation between cleaning to avoid tip wear.
- Page 13 Press the new fuse into the holder and If necessary use a tool to lever it off. replace it in the station. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
- Page 14 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the equipment for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
- Page 15 w w w.jbctools.com...
-
Page 16: Specifications
- Complies with CE standards - ESD protected housing “skin effect” Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear due to use or mis-use.
