INSTRUCTION MANUAL
PHSE
Preheater for PCBs
up to 13x13cm/5x5"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PHSE Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jbc PHSE Series

Summary of Contents for jbc PHSE Series

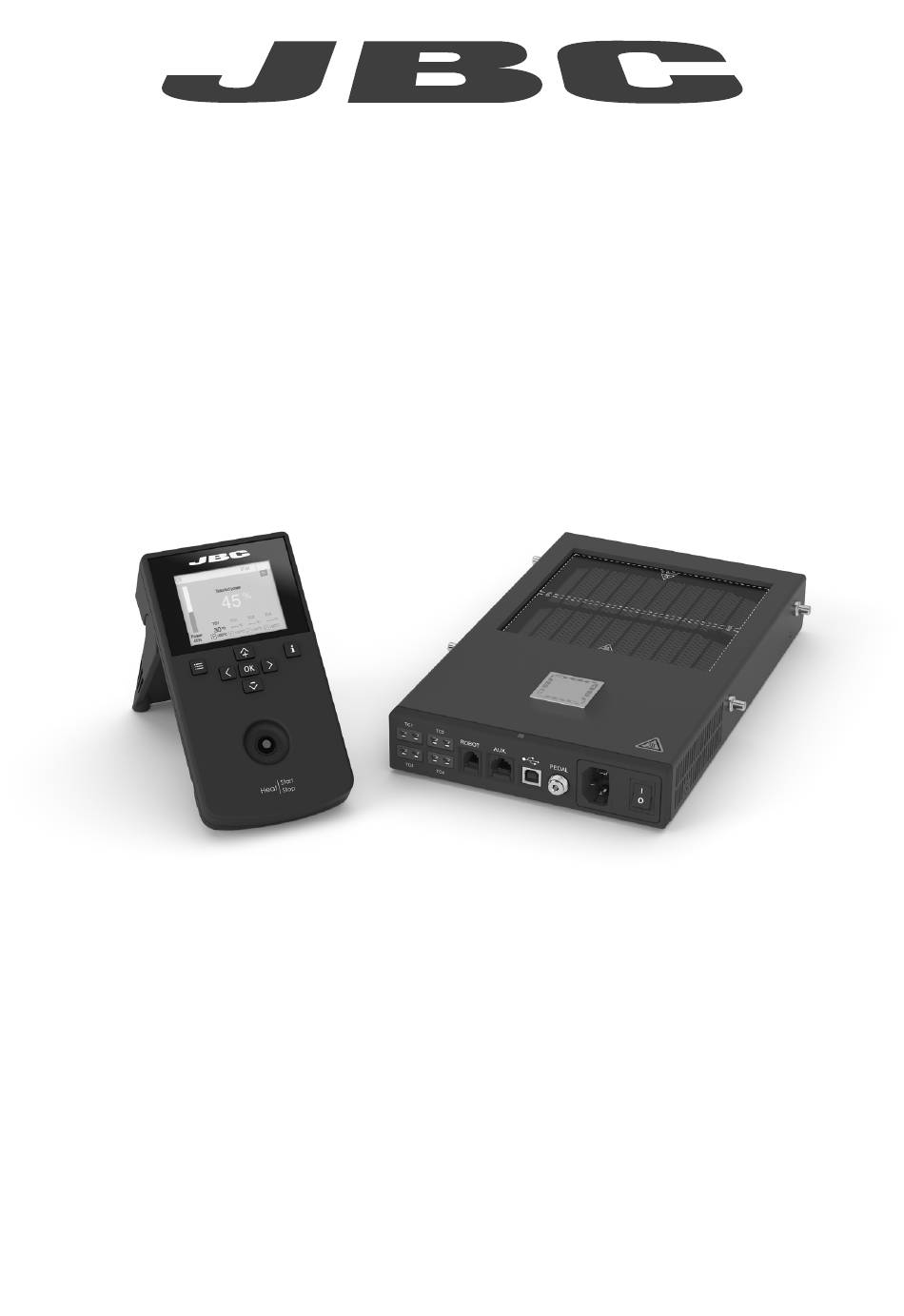

  • Page 1 INSTRUCTION MANUAL PHSE Preheater for PCBs up to 13x13cm/5x5”...

  • Page 2: Packing List

    This manual corresponds to the following references: PHSE-9B (100V) PHSE-1B (120V) PHSE-2B (230V) Packing List The following items are included: PHSE Preheater Unit ......1 unit Console ............1 unit Ref. ACE-A RJ45 Cable ..........1 unit Power Cord ..........1 unit Ref.

  • Page 3: Features And Connections

    para manuales - color gris 200 mm Features and Connections 130 mm 130 mm Preheater Unit Heating Areas 100 mm Zone B 80 mm Zone A Fixing brackets for PHSS Support 60 mm Thermocouple Connectors x4 50 mm (Type K) Main Switch RJ12 Connector Power Socket...
  • Page 4 º º º º Power C 100 P 100 P 100 º º º P 100 º Work Display The console offers an intuitive user interface, which provides quick access to station parameters. 14:15 Status Indicator 14:15 Max. Rate Status Bar º...

  • Page 5: Recommended Guidelines

    para manuales - color gris 200 mm Setting Thermocouples Function 130 mm 130 mm Select Thermocouples from the Work mode menu to set them up. The thermocouples (TC) can work in three different ways depending on what is needed. · Control: the unit maintains the selected temperature. 100 mm ·...

  • Page 6: Work Mode

    Max. Rate º 1.6ºC/s º Selected 120 14:15 Work Mode º º º º Max. Rate º Power 1.6ºC/s Temperature Mode: C 100 P 100 P 100 º º º P 100 º Select Temp. mode from the Work mode menu. In this mode, the heater unit maintains the selected º...
  • Page 7 para manuales - color gris 200 mm Work Mode 130 mm 130 mm Temperature Mode: This function allows you to set a maximum value for the temperature increase per second when heating. Select Temp. mode from the Work mode menu. In this mode, the heater unit maintains the selected temperature for the TC1 thermocouple as long as the other TC’s do not reach the control/protection The maximum heating rate value can be set between 0.1ºC/s and 2.0ºC/s (2) or “None”...
  • Page 8 º º º Profile Modes Select Profile Mode from the Work Mode Menu. In this mode the heater unit regulates the temperature of the TC1 thermocouple according to the selected profile as long as the other TCs do not reach the control/protection temperature limit.

  • Page 9: Profile Editor

    JBC Predefined Profiles There are 3 profiles predefined by JBC: A, B and C. The difference between them is the number of steps: 2, 3 or 4. The thicker your PCB is and the more layers it contains, the more steps are needed to obtain gradual warming.

  • Page 10: Process Analysis

    Process Analysis By pressing Graphics in the main MENU, the temperature of TC1 thermocouple and power fi gures in real time are displayed. Graphics 14:15 Power (%) Temperature (ºC) Power [%] Ext. Temp [ºC] Switch Y Axis Between Power and Temperature System Notifications The following icons will be displayed on the screen’s status bar.
  • Page 11 USB-A connector to 80 mm export/import profiles. Update the Station Software 60 mm 1. Download the JBC Update File from 2. Insert the USB flash drive into the console. www.jbctools.com/software.html and save The icon is displayed while updating. it on a USB flash drive. (Preferably one with no 50 mm other files).

  • Page 12: Maintenance

    - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. - A blown fuse can be replaced by the user itself. The fuse is located between the power supply connector and the on/off switch (1).
  • Page 13 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the units for any purpose other than PCB preheating. Incorrect use may cause a fire. - The mains cable must be plugged into approved bases.
  • Page 14 INSTRUCTION MANUAL Articulated Hand Rest for PHSEK Preheater Set...

  • Page 15: Packing List

    This manual corresponds to the following reference: RHS-A Packing List The following items are included: Articulated Height Adj. Flange ..w. 1 Shaft ......1 unit Hand Rest Arm ....1 unit unit Ref. 0024007 Ref. 0023991 Base PHSE compatible ......1 unit Headless Screw ........
  • Page 16 para manuales - color gris 200 mm Features 130 mm 130 mm Shaft 100 mm Articulated Hand Height Adjustment Flange Rest Arm Headless Screw 80 mm Printed Corner Guides ESD Connector 60 mm Hand Rest (connect to ESD Common Grounding Point) Base Positioning Bolds...

  • Page 17: Height Adjustment

    Height Adjustment According to your work needs the articulated hand rest allows adjustment for different heights through the vertical axis. Slide the arm to the appropriate height (1) and Knob secure it by tightening the knob (2) to guarantee stability. Work Position Adjustment RHN arm allows adjustment for different positions according to your work needs.
  • Page 18 para manuales - color gris 200 mm Preheater Positioning 130 mm 130 mm RHS has been designed to work together with PHS Fit PHSE onto the positioning bolts (1) for proper alignment. The four corner guides (2) help to place 100 mm the heater unit in its position.
  • Page 19 Accessories* If a second hand rest ist needed, Articulated Left Hand Rest HRL is available. HRL also allows adjustment for different positions. Articulated Left Hand Rest In the case of using both left and right arms, assemble both as shown in the illustration according to the letters on the back of the hand rest, to keep the hand supports at the same level.
  • Page 20 - color gris 200 mm Compatible JBC Articles* 130 mm 130 mm HRR and HRL can be combined with: RWT Adjustable Rework Arm, RWS Adjustable Rework Arm for PHSE and 100 mm RWB Adjustable Rework Arm for PHBE.
  • Page 21 - Use a damp cloth when cleaning. Alcohol can only be used to clean the metal parts. - Replace any defective damaged parts. Use original JBC spare parts only. Do not leave HRR over the preheater when the preheater is working.
  • Page 22 INSTRUCTION MANUAL PHSS Support for PCBs up to 13x13cm/5x5”...
  • Page 23 This manual corresponds to the following reference: PHS-SA Packing List The following items are included: PHSS Support ............................1 unit Manual ............1 unit Allen key ............. 1 unit Ref. 0013754 Ref. 0026994...
  • Page 24 para manuales - color gris para manuales - color gris 200 mm 200 mm Features and Connections 130 mm 130 mm 130 mm 130 mm ESD Connector (connect to ESD Common Grounding Point) 100 mm 100 mm Clamp Knob 80 mm 80 mm Spring Guide 60 mm...
  • Page 25 Height Adjustment PHSS Support allows changing the height between the PCB and the preheater heating area. It can be chosen between 3 positions for the working height adjustment. Unscrew these knobs to place the support in the lowest level Low level 22 mm / 0.87 in Medium level...
  • Page 26 para manuales - color gris para manuales - color gris 200 mm 200 mm Fast PCB Replacement 130 mm 130 mm 130 mm 130 mm Moove the spring guide backward to change PCBs of the same batch fast and easily. Removing the PCB Placing another PCB 100 mm...
  • Page 27 - Use a damp cloth when cleaning. Alcohol can only be used to clean the metal parts - Replace any defective or damaged piece. Use original JBC spare parts only. Sliding Guide Axes - Repairs should only be performed by a JBC authorized technical service.
  • Page 28 para manuales - color gris para manuales - color gris 200 mm 200 mm Safety 130 mm 130 mm 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm 100 mm - When using the support with a preheater unit, the temperature of accessible surfaces may remain high after the unit is turned off.

  • Page 29: Specifications

    14.49 x 14.49 x 4.92 in / 5.95 lb Complies with CE standards. ESD safe. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
