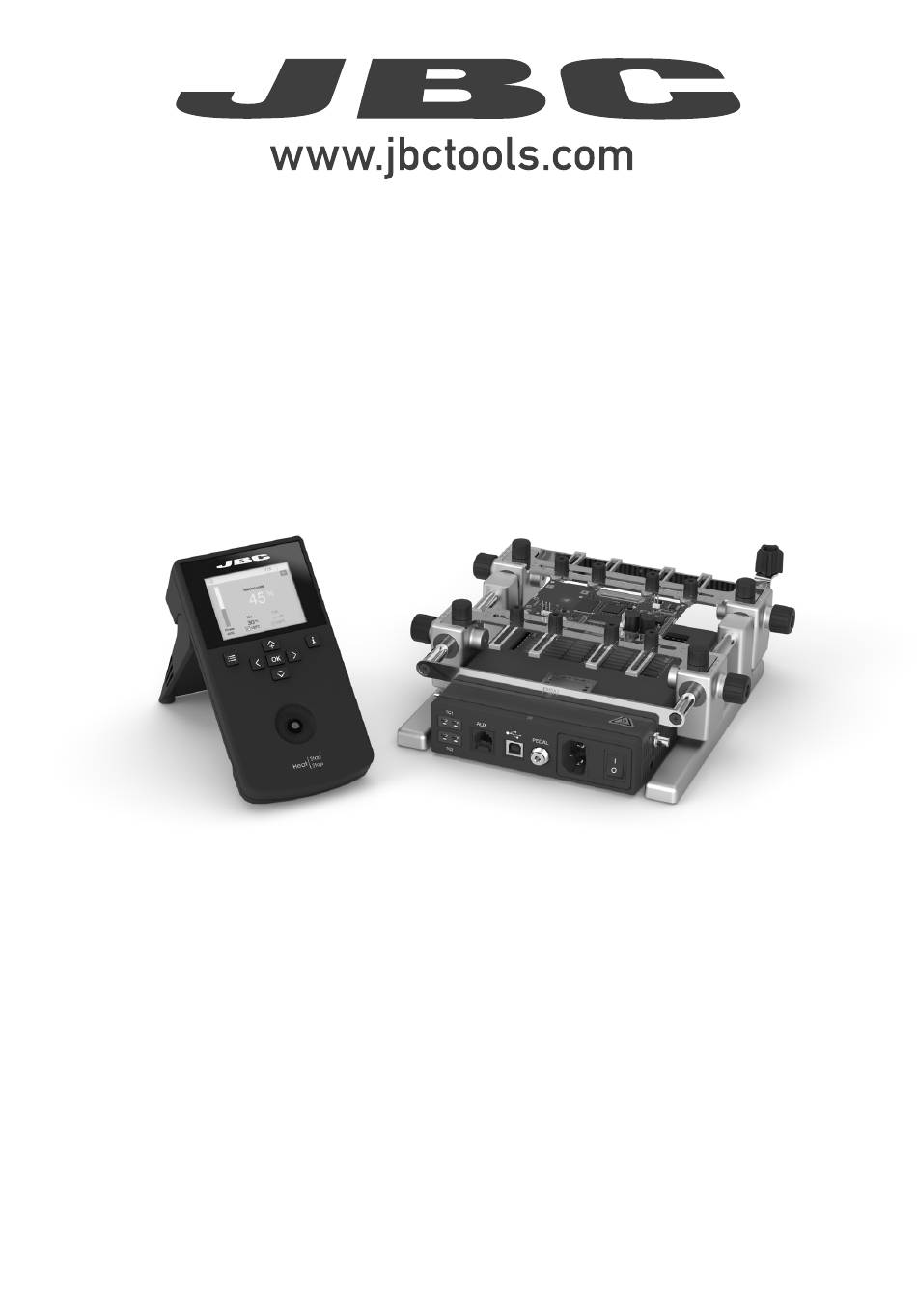

- Page 1 INSTRUCTION MANUAL PHNK Nano Preheater Set...
-
Page 2: Packing List
This manual corresponds to the following references: PHNE-1KA (120V) PHNE-2KA (230V) PHNE-9KA (100V) Packing List The following items are included: Nano Preheater Unit ....... 1 unit Nano PCB Support..,,,,,,,,,,,,,,,,,,,,,,.. 1 unit Ref. PHN-SA Console ......1 unit RJ45 Cable ....1 unit Power Cord .....1 unit Ref. -
Page 3: Features And Connections
w w w.jbctools.com Features and Connections Preheater Unit Heating Area Fixing Brackets for Nano PCB Support Led Status Indicator: ·Blue: Ready to Use ·Green: Working ·Red: System Error Thermocouple Connectors x2 Main Switch (Type K) RJ45 Connector Power Socket to Console USB-B Connector Pedal Connector Button for Foot... -
Page 4: Height Adjustment
Height Adjustment Nano PCB Support allows adjustment for 3 heights between the PCB and the Heating Area of the Preheater Unit. Unscrew these knobs to place the support in the lowest level Low level 22 mm / 0.87 in Medium level 45 mm / 1.77 in Use the fixing brackets to place the support in the... - Page 5 w w w.jbctools.com Fast PCB Replacement Nano PCB Support lets you replace PCBs of the same batch fast and easily. Use the sliding guides to change the PCBs. Removing PCB Loosen one sliding guide, pull back and lift out the PCB. Spring Guide Spring Guide Knob Spring...
-
Page 6: Work Screen
Work Screen The Console offers an intuitive user interface which provides quick access to station parameters. 14:15 Status Indicator 14:15 Max. Rate Status Bar 14:15 º 1.6ºC/s Max. Heating Max. Rate Max. Rate Rate Instant Power º 1.6ºC/s º 1.6ºC/s º... -
Page 7: Recommended Guidelines
w w w.jbctools.com Setting Thermocouples Function Select Thermocouples from the Work mode menu to set them up. The thermocouples (TC) can work in three diferent ways depending on what is needed. · Control: the unit mantains the selected temperature. · Protection: the Heater Unit stops if the TC reaches the selected temperature. ·... -
Page 8: Work Mode
14:15 Work Mode Max. Rate º 1.6ºC/s Temperature Mode: Select Temp. mode from the Work mode menu. In this mode the heater unit maintains the selected Selected 120 º temperature for the TC1 thermocouple as long as the other TC’s do not reach the control/protection temperature limit. - Page 9 14:15 Work Mode Selected power w w w.jbctools.com Temperature Mode: This function allows you to set a maximum value for the temperature increase per second when heating. Select Temp. mode from the Work mode menu. In this mode the heater unit maintains the selected temperature for the TC1 thermocouple as long as the other TC’s do not reach the control/protection The maximum heating rate value can be set between 0.1ºC/s and 2.0ºC/s (2) or “None”...
- Page 10 Profile Modes Select Profile Mode from the Work Mode Menu. In this mode the heater unit regulates the temperature of the TC1 thermocouple according to the selected profile as long as the other TCs do not reach the control/protection temperature limit. 14:15 PROFILE1 Stop...
-
Page 11: Profile Editor
JBC Set Profiles There are 3 profiles predefined by JBC: A, B and C. The difference between them is the number of steps: 2, 3 or 4. The thicker your PCB is and the more layers it contains, the more steps are needed to obtain a gradual warming. -
Page 12: Process Analysis
Process Analysis By pressing Graphics in the main MENU, temperature of TC1 thermocouple and power fi gures in real time are displayed. Graphics 14:15 Power (%) Temperature (ºC) Power [%] Ext. Temp [ºC] Lorem ipsum Switch Y Axis Between Power and Temperature System Notifications The following icons will be displayed on the screen’s status bar. - Page 13 Insert a USB flash drive into the USB-A connector to export / import profiles. Update the Station Software 1. Download the JBC Update File from 2. Insert the USB flash drive to the console. www.jbctools.com/software.html and save The icon is diplayed while updating.
- Page 14 - Only if it is absolutely necessary and if cleaning with isopropyl alcohol (IPA) is not enough, it is recommended to use a scraper to remove dirt in the glass area. - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
-
Page 15: Specifications
- Temperature Range: 50 - 250 °C / 120 - 482 ºF - Temperature Measurement: Thermocouple type K - JBC Set Temperature Profiles: 3 profiles (2, 3 or 4 steps) - User Profiles: 20 (up to 6 steps for each) - Page 16 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
