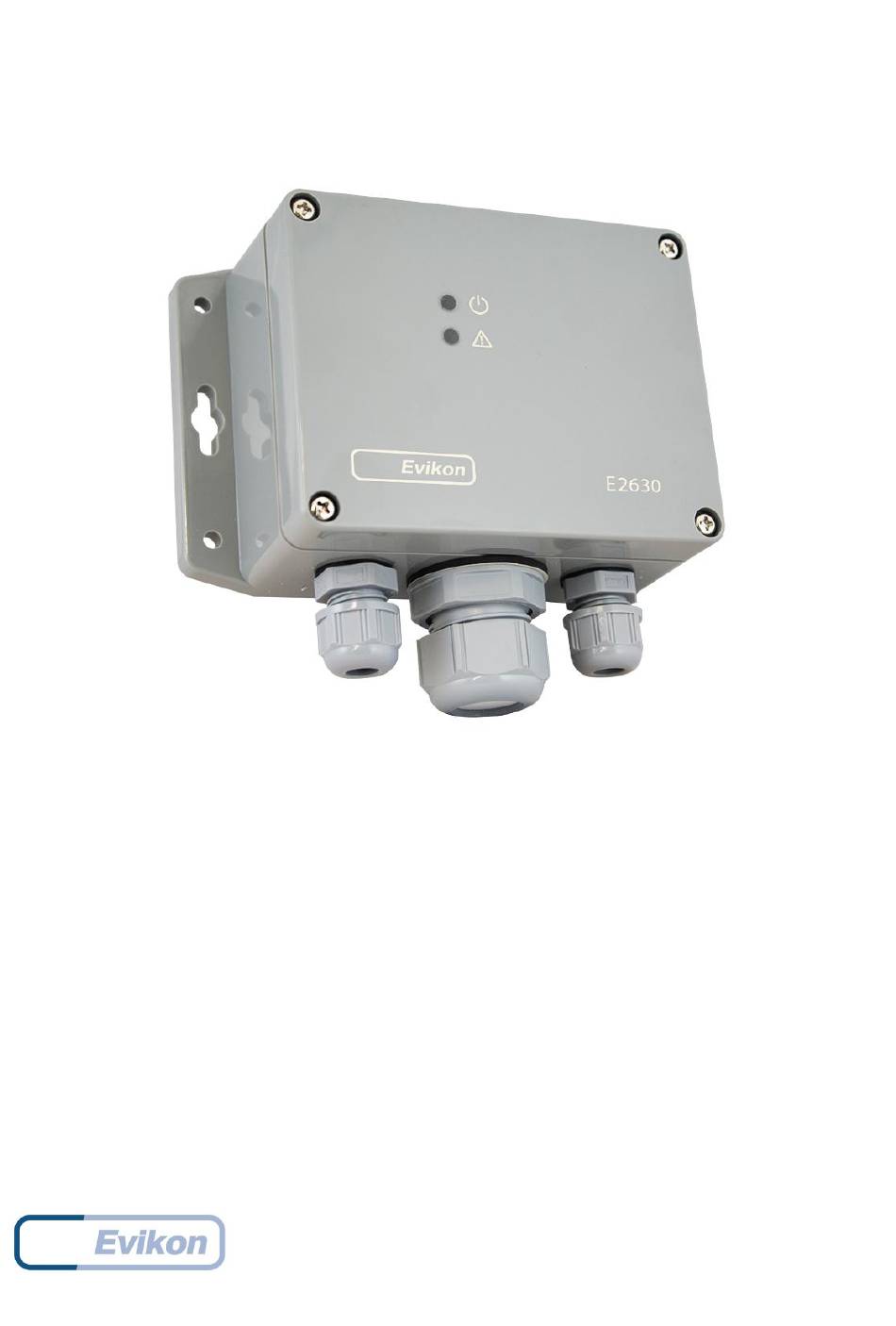

- Page 1 Nitrogen Dioxide Detector E2630-NO2 User Manual...
-
Page 2: Table Of Contents
E2630-NO2 Rev 23.03.2021 Table of contents Nitrogen Dioxide Specifications Product description Safety requirements Operating conditions Installation guidelines Mounting dimensions Connections Operation Sensor probe handling The electrochemical gas sensor replacement procedures Maintenance Calibration Delivery set Order code for E2630-NO2 options Warranty Manufacturer contacts... -
Page 3: Nitrogen Dioxide
E2630-NO2 Rev 23.03.2021 Nitrogen Dioxide A Colorless toxic gas, relatively insoluble in water. When exposed to oxygen (including air), nitric oxide is converted into nitrogen dioxide. Chemical formula Molar weight Relative gas density (to air) 1.59 Conversion 1 ppm = 1.88 mg/m Boiling point 21.2 °C Flammability... -
Page 4: Specifications
E2630-NO2 Rev 23.03.2021 Specifications Sensor type Electrochemical cell Sampling method Diffusion Typical detection range 0...10 ppm Alarm setpoints 2-3-6 ppm NO (release-LOW-HIGH) Response time T90 < 60 seconds Signal update Every 1 second Sensor lifetime > 2 years Calibration interval 6 months Power supply 24 VAC/DC or 90...265 VAC... -
Page 5: Product Description
E2630-NO2 Rev 23.03.2021 Product description E2630 series gas detectors are compact and easy-to-use instruments. The devices utilize novel fully calibrated and temperature compensated gas sensors with excellent repeatability, stability, and long lifetime. Two relays RE1 and RE2 with switching contacts can be used to control alarm sirens, ventilation fans, shut-off valves, or other actuators. -
Page 6: Installation Guidelines
E2630-NO2 Rev 23.03.2021 Installation guidelines There are no precise rules or standards to follow when installing gas detectors. The following points must be taken into account: ● Application (air quality control or leakage detection.) Properties of the space under investigation (room geometry, direction, and ●... -
Page 7: Mounting Dimensions
E2630-NO2 Rev 23.03.2021 Mounting dimensions... -
Page 8: Connections
-24 or to 230 V AC mains if you are using detector version -230 (see diagram below). The terminals on the E2630 series devices are suitable for a wide range of wires with cross-section 0,2...1,5 mm . We recommend to strip the wire end by 5...6 mm and use the wire end sleeves. -
Page 9: Operation
E2630-NO2 Rev 23.03.2021 Operation During the first ca. 60 seconds after powering on E2630 performs a warming-up and self-diagnostic routine, indicated by the flashing of each LED. The upper dual-color LED remains continuously green in normal operation and blinks red in case of device or sensor fault. -
Page 10: Sensor Probe Handling
E2630-NO2 Rev 23.03.2021 Sensor probe handling The sensor probes of all types are equipped with a hydrophobic microporous PTFE filter to protect the sensor from dust, dirt, and water drops. The filter may be replaced if it gets strongly contaminated. To replace the PTFE filter, unscrew the sensor head cap and remove the old filter. -
Page 11: Maintenance
E2630-NO2 Rev 23.03.2021 Maintenance Do not perform any maintenance operation with the power on. Clean the device with a soft damp cloth. Do not use any abrasive cleaning agents. Do not immerse the device in water or any cleaning media. Calibration E2630-NO2 detectors have been calibrated by the Manufacturer with standard gas mixtures before delivery. -
Page 12: Warranty
Manufacturer or damaged by customer error or negligence or if there has been an unauthorized modification. Manufacturer contacts Evikon MCI OÜ Teaduspargi 7/9, Tartu 50411 Estonia info@evikon.eu...
