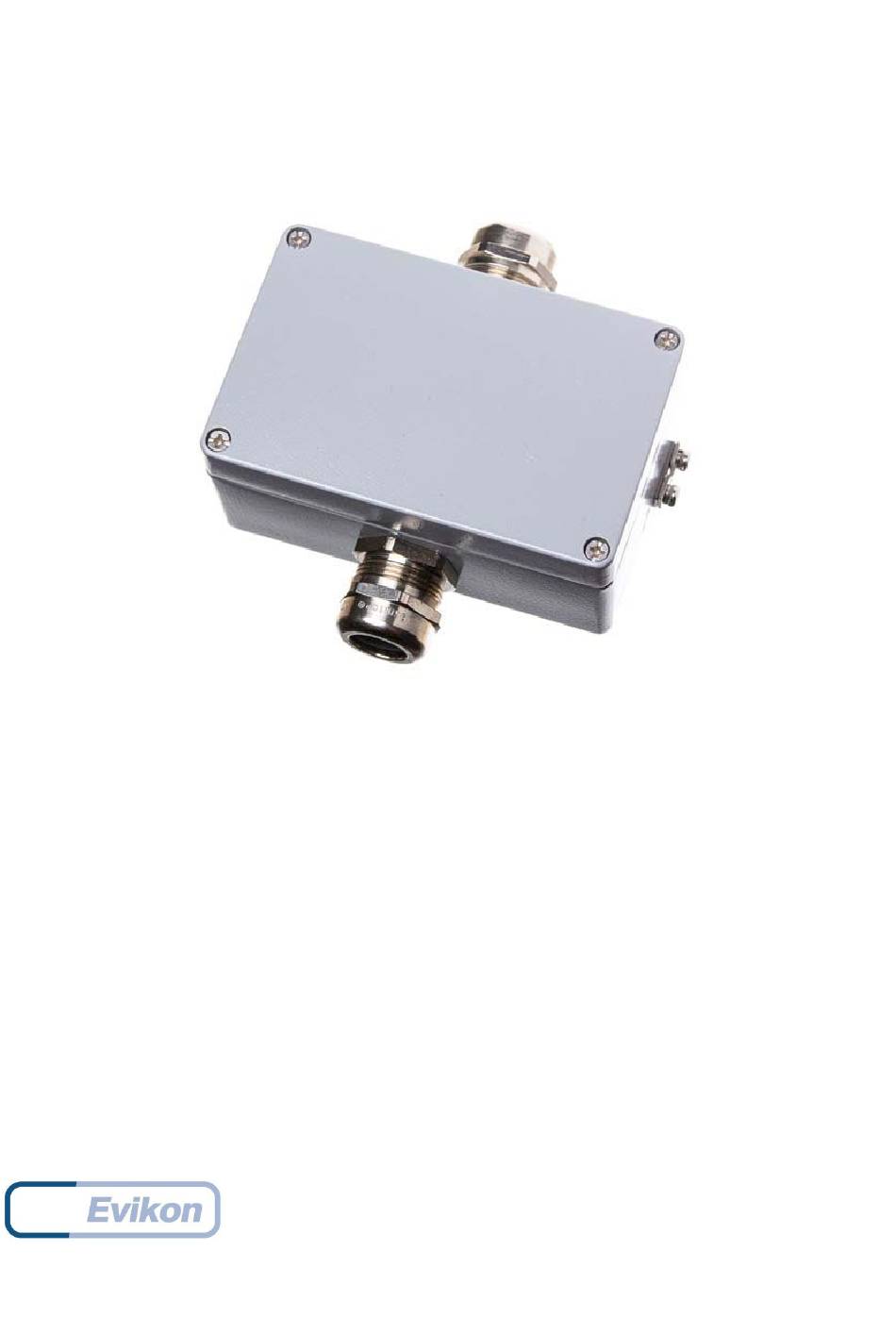

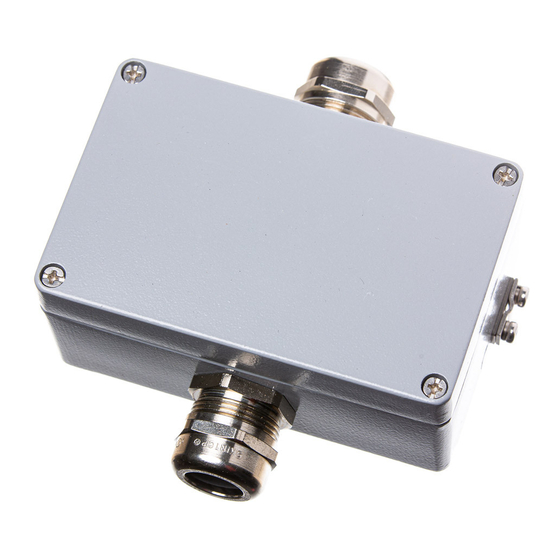

- Page 1 PluraSens ® Ethylene Detector-Transmitter E2658-C2H4 User Manual ...
-
Page 2: Table Of Contents
E2658-C2H4 Rev 12.03.2021 Table of contents Ethylene 3 Specifications 4 Product description 6 Safety requirements 6 Operating conditions 7 Installation guidelines 7 Mounting dimensions 9 Sensor probe handling 10 Gas sensor replacement procedures 10 Electrical connections 11 Operation 13 Maintenance 13 ... -
Page 3: Ethylene
E2658-C2H4 Rev 12.03.2021 Ethylene Extremely flammable colorless gas. Widely used as a raw material in the polymer industry and as a fruit ripener. Chemical formula H C=CH... -
Page 4: Specifications
E2658-C2H4 Rev 12.03.2021 Specifications Sampling method Diffusion Sensor type Electrochemical cell Typical detection range 0...10 ppm 0...200 ppm 0...1500 ppm Max. overload 20 ppm 500 ppm 2000 ppm Resolution / digital unit 0.1% ppm 1 ppm 1 ppm Response time T80 <... - Page 5 E2658-C2H4 Rev 12.03.2021 According to 2014/30/EU and 2014/34/EU, EN 61000-6-3:2020, EN 61326-1:2013 (EMC, Emissions) EN 61000-6-1:2019, EN 61000-6-2:2019, EN 61326-2-1:2013 (EMC, CE marking Immunity) EN 60079-0:2018, EN 60079-1:2014, EN 60079-31:2014, EN 60079-29-1:2016, EN 60079-29-2:2015, EN 60079-29-3:2014 -20...+50°C, up to 100% RH, 0,9...1,1 atm Explosion-safe zones and ATEX Zones 2 and 22 ...
-
Page 6: Product Description
E2658-C2H4 Rev 12.03.2021 Product description E2658 is a series of flameproof gas detectors-transmitters intended for operation in safe zones and ATEX Zones 2 and 22. E2658 series devices are based on PluraSens® ... -
Page 7: Operating Conditions
E2658-C2H4 Rev 12.03.2021 Operating conditions The device should be used in a basic electromagnetic environment, where the latter is defined in EN 61326-1. Avoid strong mechanical shock and vibrations. Although E2658 ... - Page 8 E2658-C2H4 Rev 12.03.2021 The device is fixed on the wall using two fixing holes located outside the sealed area of the device (see dimensional drawing). Unscrew four lid screws and detach the lid from the ...
-
Page 9: Mounting Dimensions
E2658-C2H4 Rev 12.03.2021 Mounting dimensions Front view Bottom view 9 ... -
Page 10: Sensor Probe Handling
E2658-C2H4 Rev 12.03.2021 Sensor probe handling The sensor probes of all types are equipped with a hydrophobic microporous PTFE filter to protect the sensor from dust, dirt, and water drops. The filter should be replaced if it gets ... -
Page 11: Electrical Connections
E2658-C2H4 Rev 12.03.2021 Electrical connections Unscrew four lid screws and detach the lid from the device. Use the M25 cable gland to let ... - Page 12 E2658-C2H4 Rev 12.03.2021 The screwless quick connect spring terminals on the E2658 series devices are suitable for 2 a wide range of wires with cross-section 0,5...1,5 mm ...
-
Page 13: Operation
E2658-C2H4 Rev 12.03.2021 Operation Turn on the power. The instrument warm-up time takes about 1 minute after switching on and the final sensor stabilization time to maximum accuracy takes about 30 minutes, but ... -
Page 14: Delivery Set
E2658-C2H4 Rev 12.03.2021 Delivery set Detector-transmitter E2658 ● ● Mounting accessories: ○ 2 screws with plastic dowels Order code for E2658-C2H4 options E2658 options Order code Integrated 90...265 V mains power supply module E2658-C2H4-230 Integrated 24 VAC power supply module E2658-C2H4-24VAC ... -
Page 15: Configuring
E2658-C2H4 Rev 12.03.2021 Configuring A standard configuration kit includes a USB-RS485 converter, fixed flow regulator, gas tubing with applicators, and a software pack. Please contact your Seller for more ... -
Page 16: Modbus Rtu Communication
E2658-C2H4 Rev 12.03.2021 Modbus RTU Communication RS485 communication interface Databits: 8 Supported Modbus functions: Parity: none / odd / even 03 – Read multiple registers Stop bits: 1 or 2 06 – Write a single register Protocol: Modbus RTU ... - Page 17 E2658-C2H4 Rev 12.03.2021 0x0006 6 / 40007 RW Response delay, ms 1...255 10 1 – No parity bit, 1 stop bit (default after factory reset) 2 – No parity bit, 2 stop bits 3 – Odd parity, 1 stop bit 0x0007 ...
- Page 18 E2658-C2H4 Rev 12.03.2021 0 –none 211 / Parameter tied to relay 2 – gas concentration 2 0x00D3 RW 40212 RE1 9 – control by Modbus control, state set in MHR / 40214 0 – none 2 – gas concentration 212 / Parameter tied to relay ...
- Page 19 E2658-C2H4 Rev 12.03.2021 221 / see 0x00DD RW LOW setpoint for relay RE1 0...65535 (gas units) Specifications 40222 222 / HIGH setpoint for relay see 0x00DE RW 0...65535 (gas units) 40223 RE1 Specifications 223 / see 0x00DF RW LOW setpoint for relay RE2 0...65535 (gas units) Specifications ...
- Page 20 E2658-C2H4 Rev 12.03.2021 bit[11]=0/1 - 1 Hz (50% on, 50% off) LED signal off/on if relay1 turned on bit[12]=0/1 - 2 Hz (50% on, 50% off) LED signal off/on if relay2 turned on 257 / 0x0101 R Raw gas sensor data 0...4095, ADC units ...
-
Page 21: Warranty
unauthorized modification. Manufacturer contacts Evikon MCI OÜ Teaduspargi 7/9, Tartu 50411 Estonia info@evikon.eu www.evikon.eu 21 ...
