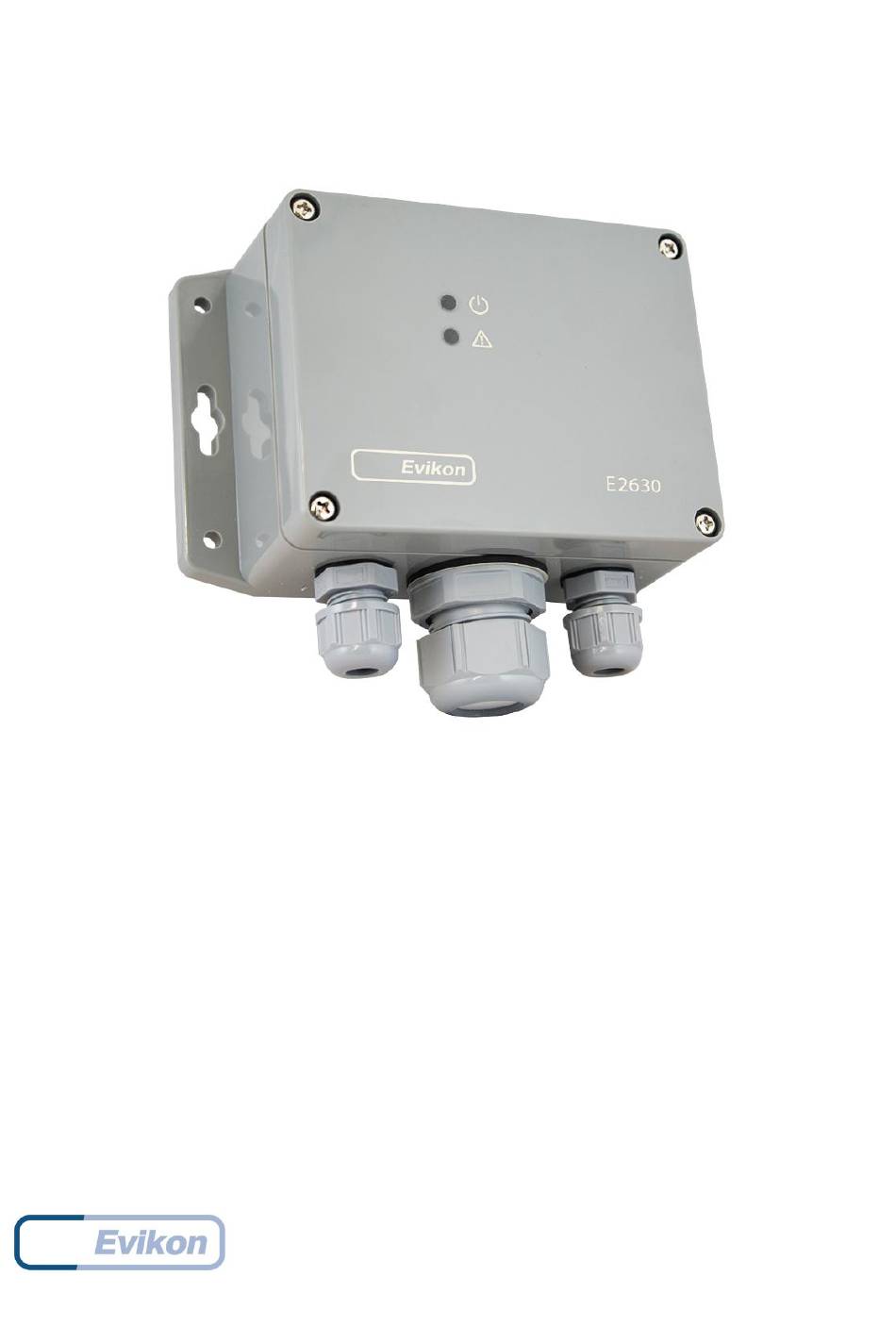

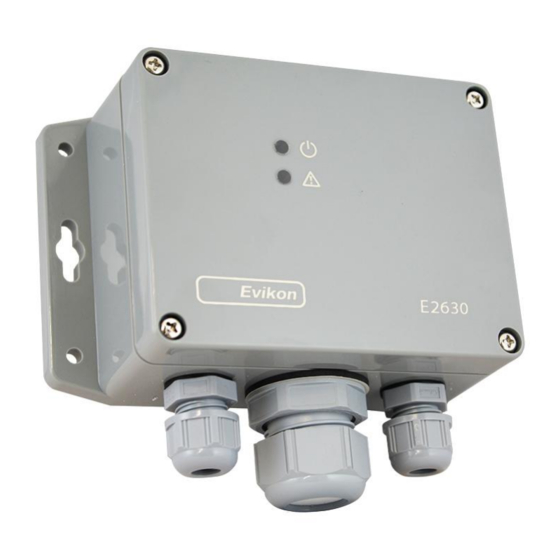

- Page 1 Solvent Vapor Detector E2630-VOC User Manual...
-
Page 2: Table Of Contents
Rev 23.03.2021 Table of contents Acetone Benzene Ethanol Ethyl acetate Toluene Xylene Specifications Product description Safety requirements Operating conditions Installation guidelines Mounting dimensions Connections Operation Sensor probe handling Maintenance Calibration Delivery set Order code for E2630-VOC options Warranty Manufacturer contacts... -
Page 3: Acetone
E2630-VOC Rev 23.03.2021 Acetone A colorless organic solvent with a characteristic pungent odor that is volatile and flammable with the chemical formula (CH Synonyms/Trade Names: Dimethyl ketone, Ketone propane, 2-Propanone. Chemical formula Molar weight Relative gas density (to air) Conversion* 1 ppm = 2.38 mg/m... -
Page 4: Benzene
E2630-VOC Rev 23.03.2021 Benzene A colorless liquid with an aromatic odor that is highly flammable with the molecular formula C Synonyms/Trade Names: Benzol, Phenyl hydride. Chemical formula Molar weight Relative gas density (to air) 2.69 Conversion* 1 ppm = 3.19 mg/m Boiling point 80 °C... -
Page 5: Ethanol
E2630-VOC Rev 23.03.2021 Ethanol A clear colorless liquid with a faintly sweet odor and pungent taste. Synonyms/Trade Names: ethyl, alcohol. Chemical formula Molar weight Relative gas density (to air) 1,59 Conversion* 1 ppm = 1.89 mg/m Boiling point 78.37°C Low explosive limit (LEL), % vol. in air 3 - 3.3... -
Page 6: Ethyl Acetate
E2630-VOC Rev 23.03.2021 Ethyl acetate A colorless organic compound with a sweet pear-like smell that is highly flammable. Synonyms/Trade Names: ethyl ester, acetic ester, EA, EtOAc. Chemical formula Molar weight Conversion* 1 ppm = 3.60 mg/m Boiling point 77.1 °C Low explosive limit (LEL), % vol. -
Page 7: Toluene
E2630-VOC Rev 23.03.2021 Toluene A clear, colorless liquid with a sweet smell that is highly flammable. Synonyms/Trade Names: methylbenzene, phenylmethane. Chemical formula Molar weight Conversion* 1 ppm = 3.77 mg/m Boiling point 110.7°C Low explosive limit (LEL), % vol. 1.1 - 1.27... -
Page 8: Xylene
E2630-VOC Rev 23.03.2021 Xylene A colorless, flammable liquid with a chemical smell. Xylenes are produced by the methylation of toluene and benzene. The term is used for any of three isomers of dimethylbenzene, or a combination thereof. Synonyms/Trade Names: xylol, dimethylbenzene. -
Page 9: Specifications
E2630-VOC Rev 23.03.2021 Specifications Default calibration Toluene Sensor type Metal Oxide Semiconductor Sampling method Diffusion Typical detection range 0...100% LEL 0...500 ppm Alarm setpoints 7 - 10 - 25 %LEL 70 - 100 - 300 ppm (release-LOW-HIGH) Response time < 120 s... -
Page 10: Product Description
E2630-VOC Rev 23.03.2021 Product description E2630 series gas detectors are compact and easy-to-use instruments. The devices utilize novel fully calibrated and temperature compensated gas sensors with excellent repeatability, stability, and long lifetime. Two relays RE1 and RE2 with switching contacts can be used to control alarm sirens, ventilation fans, shut-off valves, or other actuators. -
Page 11: Installation Guidelines
E2630-VOC Rev 23.03.2021 Installation guidelines There are no precise rules or standards to follow when installing gas detectors. The following points must be taken into account: ● Application (air quality control or leakage detection.) Properties of the space under investigation (room geometry, direction, and ●... -
Page 12: Mounting Dimensions
E2630-VOC Rev 23.03.2021 Mounting dimensions... -
Page 13: Connections
E2630-VOC Rev 23.03.2021 Connections 1. Unscrew four lid screws and detach the lid from the device; 2. Attach the device to the wall using provided screws through the side mounting holes or key slots (This step may be done before step 1, consider your convenience). -
Page 14: Operation
E2630-VOC Rev 23.03.2021 Operation During the first ca. 60 seconds after powering on E2630 performs a warming-up and self-diagnostic routine, indicated by the flashing of each LED. The upper dual-color LED remains continuously green in normal operation and blinks red in case of device or sensor fault. -
Page 15: Sensor Probe Handling
E2630-VOC Rev 23.03.2021 Sensor probe handling The sensor probes of all types are equipped with a hydrophobic microporous PTFE filter to protect the sensor from dust, dirt, and water drops. The filter may be replaced if it gets strongly contaminated. To replace the PTFE filter, unscrew the sensor head cap and remove the old filter. -
Page 16: Maintenance
Calibration E2630-VOC detectors have been calibrated by the Manufacturer with standard gas mixtures before delivery. Provided that the sensor is used under moderate conditions, field recalibration is recommended every 12 months Please contact your dealer for more information. -
Page 17: Warranty
Manufacturer or damaged by customer error or negligence or if there has been an unauthorized modification. Manufacturer contacts Evikon MCI OÜ Teaduspargi 7/9, Tartu 50411 Estonia info@evikon.eu...
