Summary of Contents for Evikon PluraSens E2608-LEL

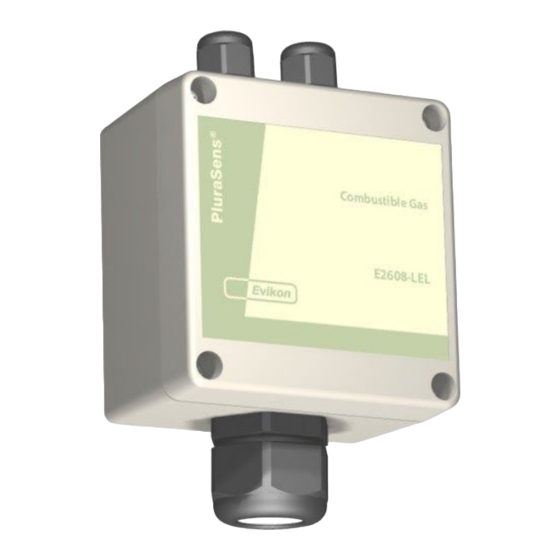

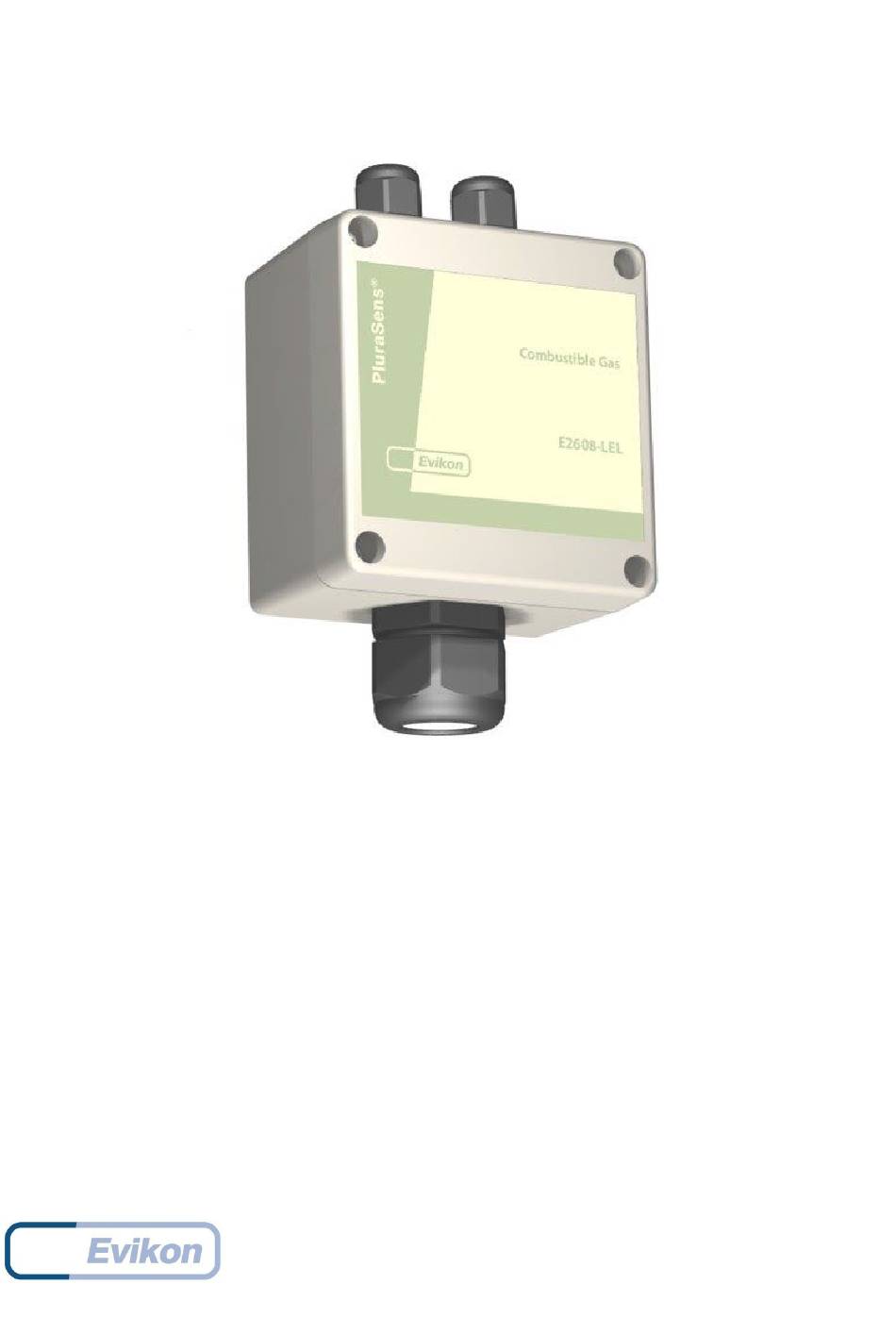

- Page 1 PluraSens ® Combustible Gas Detector-Transmitter E2608-LEL User Manual ...
-
Page 2: Table Of Contents
E2608-LEL Rev 08.01.2021 Table of contents Acetylene 4 Butane 5 Hydrogen 6 Methane 7 Propane 8 Specifications 9 Product description 11 Safety requirements 11 Operating conditions 11 Installation guidelines 12 Wall mount version 12 Duct mount version 12 Mounting dimensions 13 ... - Page 3 E2608-LEL Rev 08.01.2021 Modbus holding registers 19 Warranty 24 Manufacturer contacts 24 3 ...
-
Page 4: Acetylene
E2608-LEL Rev 08.01.2021 Acetylene A colorless flammable gas, lighter than air. Mixtures with air are explosive. It results from the interaction of calcium carbide with water. In industrial production, acetylene is mainly ... -
Page 5: Butane
E2608-LEL Rev 08.01.2021 Butane A colorless flammable gas that is heavier than air. The term “butane” is used for any of two structural isomers (n-butane or iso-butane, with unbranched and branched-chain ... -
Page 6: Hydrogen
E2608-LEL Rev 08.01.2021 Hydrogen A colorless, odorless, flammable gas, that is much lighter than air. Mixtures with air are explosive. Results from the interaction of acids, bases, and water with active metals and ... -
Page 7: Methane
E2608-LEL Rev 08.01.2021 Methane A colorless flammable gas, the main component of natural gas, marsh gases. Methane results from bacterial decomposition of plant and animal matter (landfill gas). Methane is widely used as a fuel and chemical feedstock. ... -
Page 8: Propane
E2608-LEL Rev 08.01.2021 Propane A colorless flammable gas that is heavier than air. it occurs in light petroleum fractions. Propane is used mainly as a fuel and as a feedstock in organic synthesis. It is applied also ... -
Page 9: Specifications
E2608-LEL Rev 08.01.2021 Specifications Detected gases Acetylene, Butane, Hydrogen, Methane, Propane, etc Sampling method Diffusion Sensor type Metal oxide semiconductor Catalytic (pellistor) Typical detection range 0...100% LEL 0...100% LEL Resolution / digital unit 0.1% LEL 1% LEL Response time T90 ca. - Page 10 E2608-LEL Rev 08.01.2021 Dimensions H87 × W82 × D55 mm CE marking According to 2014/30/EU and 2014/35/EU, EN 50491-4-1:2012 EN 61000-6-3:2020, EN 61326-1:2013(EMC, emissions) EN 61000-6-1:2019, EN 61000-6-2:2019(EMC, Immunity) EN 60079-29-1:2016, EN 60079-29-2:2015 and EN 60079-29-3:2014 Other options Protection IP65, default cable length 3.0 m; Remote probe ...
-
Page 11: Product Description
E2608-LEL Rev 08.01.2021 Product description E2608 series detectors-transmitters belong to the PluraSens® family of multifunctional measurement instruments. The instruments utilize gas sensors of various types with ... -
Page 12: Installation Guidelines
E2608-LEL Rev 08.01.2021 Installation guidelines Before proceeding with the installation it is mandatory to read the Safety requirements section and make sure to comply with all listed instructions. Installation standards EN ... -
Page 13: Mounting Dimensions
E2608-LEL Rev 08.01.2021 Mounting dimensions 13 ... -
Page 14: Sensor Probe Handling
E2608-LEL Rev 08.01.2021 Sensor probe handling The wall-mount version of the detector-transmitter is available with a remote probe (see drawing below for dimensions). The remote probe is connected to the main unit with a ... -
Page 15: Electrical Connections
E2608-LEL Rev 08.01.2021 Electrical connections Unscrew four lid screws and detach the lid from the device. Use the M16 cable gland to let ... -
Page 16: Operation
E2608-LEL Rev 08.01.2021 Operation Turn on the power. The instrument warm-up time for both types of sensors takes about 5 minute after switching on and final sensor stabilization time to maximum accuracy takes ... -
Page 17: Delivery Set
E2608-LEL Rev 08.01.2021 Delivery set Detector-transmitter E2608 (wall mount or duct mount version) ● ● Mounting accessories: ○ 4 cross-shaped mounting lug with screws and 4 screws with plastic dowels for wall mount version ... -
Page 18: Configuring
E2608-LEL Rev 08.01.2021 Configuring A standard configuration kit includes a USB-RS485 converter, fixed flow regulator, gas tubing with applicators, and a software pack. Please contact your Seller for more ... -
Page 19: Modbus Rtu Communication
E2608-LEL Rev 08.01.2021 Modbus RTU Communication RS485 communication interface Databits: 8 Supported Modbus functions: Parity: none / odd / even 03 – Read multiple registers Stop bits: 1 or 2 06 – Write a single register Protocol: Modbus RTU ... - Page 20 E2608-LEL Rev 08.01.2021 0x0006 6 / 40007 RW Response delay, ms 1...255 10 1 – No parity bit, 1 stop bit (default after factory reset) 2 – No parity bit, 2 stop bits 3 – Odd parity, 1 stop bit 0x0007 ...
- Page 21 E2608-LEL Rev 08.01.2021 state set in MHR / 40214 0 – none 2 – gas concentration Parameter tied to relay 0x00D4 212 / 40213 RW 9- – control by Modbus 2 RE2 control, state set in MHR / 40215 Forced state for relay 0x00D5 ...
- Page 22 E2608-LEL Rev 08.01.2021 HIGH 222 / see 0x00DE RW 0...65535 (gas units) setpoint for Specifications 40223 relay RE1 LOW 223 / see 0x00DF RW 0...65535 (gas units) setpoint for 40224 Specifications relay RE2 HIGH 224 / see 0x00E0 RW setpoint for 0...65535 (gas units) ...
- Page 23 E2608-LEL Rev 08.01.2021 turned on 257 / 0x0101 R Raw gas sensor data 0...4095, ADC units 40258 259 / Gas concentration, 0x0103 R 0...65535, gas units 40260 gas units 261 / 0% value User 0x0105 RW -32000...+32000, gas units 40262 ...
- Page 24 unauthorized modification. Manufacturer contacts Evikon MCI OÜ Teaduspargi 7/9, Tartu 50411 Estonia info@evikon.eu www.evikon.eu 24 ...
