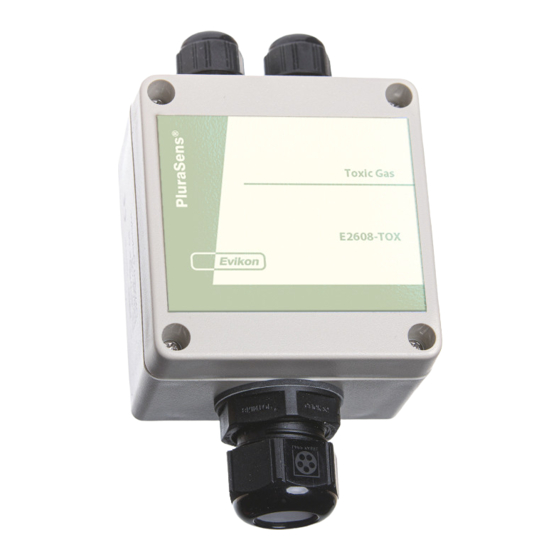

Evikon PluraSens E2608 Series User Manual

Nitric oxide detector-transmitter
Hide thumbs Also See for PluraSens E2608 Series:
Table of Contents

Advertisement

Quick Links

Download this manual










Nitric Oxide Detector-Transmitter

PluraSens​
®

E2608-NO
User Manual




Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PluraSens E2608 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Evikon PluraSens E2608 Series

Summary of Contents for Evikon PluraSens E2608 Series

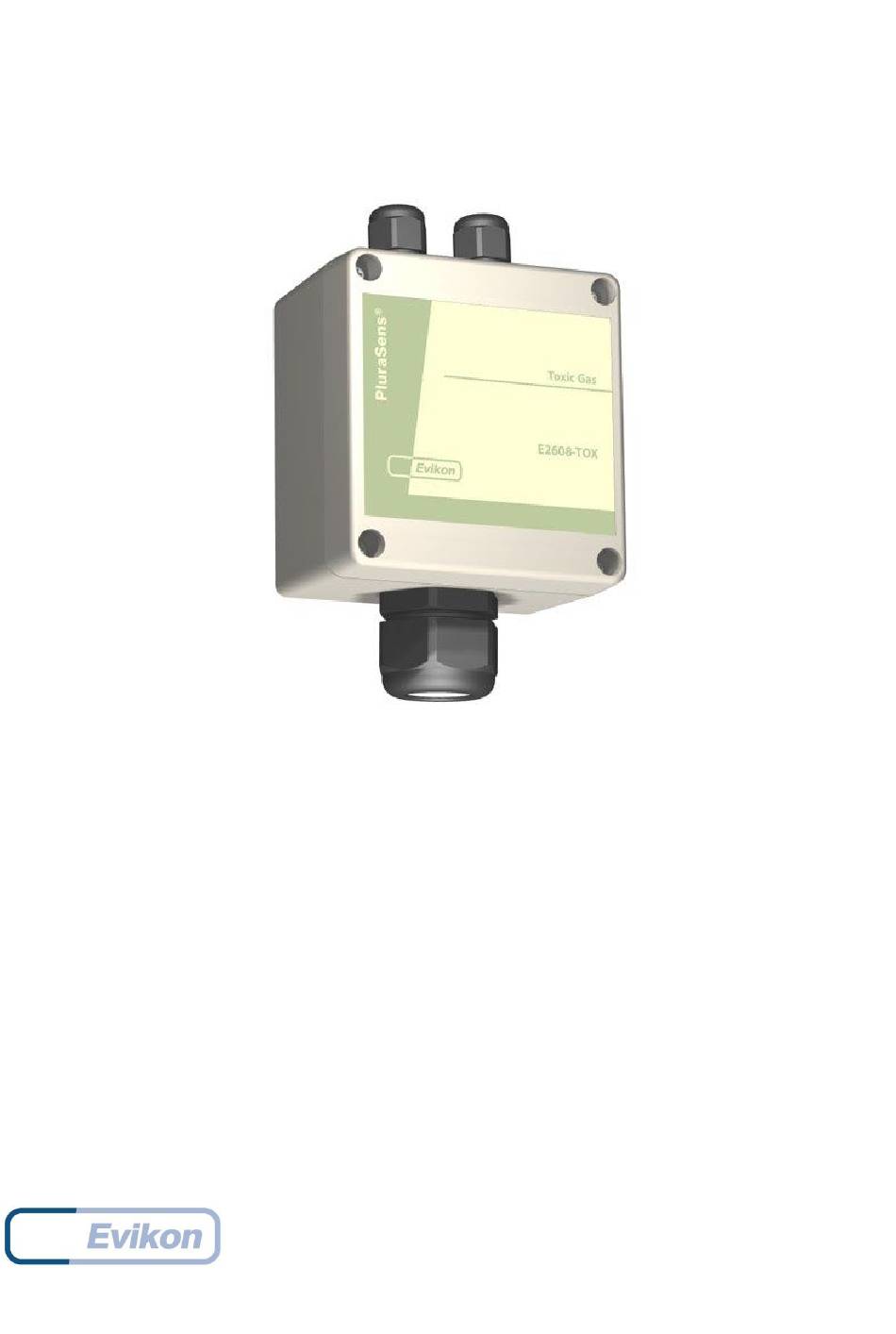

  • Page 1   PluraSens​ ®          Nitric Oxide Detector-Transmitter  E2608-NO       User Manual               ...

  • Page 2: Table Of Contents

    E2608-NO  Rev 05.03.2021  Table of contents  Nitric oxide 3  Specifications 4  Product description 6  Safety requirements 6  Operating conditions 6  Installation guidelines 7  Wall mount version 7  Duct mount version 7  Mounting dimensions 8  Sensor probe handling 9  Gas sensor replacement procedures 9 ...

  • Page 3: Nitric Oxide

    E2608-NO  Rev 05.03.2021  Nitric oxide  A colorless toxic gas, relatively insoluble in water. When exposed to oxygen (including air),                             nitric oxide is converted into nitrogen dioxide. Chemical formula ...

  • Page 4: Specifications

    E2608-NO  Rev 05.03.2021  Specifications    Sensor type  Electrochemical cell  Sampling method  Diffusion  Typical detection  0...250 ppm  range  Maximum overload  1000 ppm  Resolution / digital unit  1 ppm  Response time T90  < 40 s  Sensor lifetime  > 12 months  Calibration interval  6 months ...
  • Page 5 E2608-NO  Rev 05.03.2021  -30...50 °C, 15...90% RH non-condensing, 0,9...1,1 atm   explosion safe indoor areas, non-aggressive atmosphere  Operating conditions  NOTE!​ The sensor may exhibit considerable sensitivity to hydrogen sulfide  and nitrogen dioxide   Other options  Protection IP65, default cable length 3.0 m;   Remote probe ...

  • Page 6: Product Description

    E2608-NO  Rev 05.03.2021  Product description  E2608 series detectors-transmitters belong to the PluraSens® family of multifunctional                     measurement instruments. The instruments utilize gas sensors of various types with          ...

  • Page 7: Installation Guidelines

    E2608-NO  Rev 05.03.2021  Installation guidelines  Before proceeding with the installation it is mandatory to read the Safety requirements                           section and make sure to comply with all listed instructions. Installation standards EN  ...

  • Page 8: Mounting Dimensions

    E2608-NO  Rev 05.03.2021  Mounting dimensions  Wall mount version with mounting lugs  Duct mount version  8 ...

  • Page 9: Sensor Probe Handling

    E2608-NO  Rev 05.03.2021  Sensor probe handling   The wall-mount version of the detector-transmitter is available with a remote probe (see                           drawing below for dimensions). The remote probe is connected to the main unit with a  ...

  • Page 10: Electrical Connections

    E2608-NO  Rev 05.03.2021  Electrical connections  Unscrew four lid screws and detach the lid from the device. Use the M16 cable gland to let                                    ...

  • Page 11: Operation

    E2608-NO  Rev 05.03.2021  Operation  Turn on the power. The instrument warm-up time takes about 30 minutes after switching                             on and the final sensor stabilization time to maximum accuracy takes about 12 hours, but  ...

  • Page 12: Delivery Set

    E2608-NO  Rev 05.03.2021  Delivery set  Detector-transmitter E2608 (wall mount or duct mount version)  ● ● Mounting accessories:  ○ 4 cross-shaped mounting lug with screws and 4 screws with plastic                       dowels for wall mount version ...

  • Page 13: Configuring

    E2608-NO  Rev 05.03.2021  Configuring  A standard configuration kit includes a USB-RS485 converter, fixed flow regulator, gas                         tubing with applicators, and a software pack. Please contact your Seller for more  ...

  • Page 14: Modbus Rtu Communication

    E2608-NO  Rev 05.03.2021  Modbus RTU Communication  RS485 communication interface  Databits: 8    Supported Modbus functions:  Parity: none / odd / even    03 – Read multiple registers   Stop bits: 1 or 2    06 – Write a single register  Protocol: Modbus RTU   ...
  • Page 15 E2608-NO  Rev 05.03.2021  1200, 2400, 4800, 9600, 19200,  0x0005  5 / 40006  RW  Baud rate *  9600  38400, 57600  0x0006  6 / 40007  RW  Response delay, ms  1...255  10  1 – No parity bit, 1 stop bit  (default after factory reset)  2 –...
  • Page 16 E2608-NO  Rev 05.03.2021  0 –none  Parameter tied to relay  2 – gas concentration  2  0x00D3  211 / 40212  RW  RE1  9 – control by Modbus control,  state set in MHR / 40214  0 – none  Parameter tied to relay  2 – gas concentration  0x00D4 ...
  • Page 17 E2608-NO  Rev 05.03.2021  221 /  LOW setpoint for relay  see  0x00DD  RW  0...65535 (gas units)  Specifications  40222  RE1  222 /  HIGH setpoint for relay  see  0x00DE  RW  0...65535 (gas units)  40223  RE1  Specifications  223 /  LOW setpoint for relay  see  0x00DF ...
  • Page 18 E2608-NO  Rev 05.03.2021  257 /  0x0101  R  Raw gas sensor data  0...4095, ADC units    40258  259 /  Gas concentration,   0x0103  R  0...65535, gas units    40260  gas units  261 /  0% value   User  0x0105  RW  -32000...+32000, gas units  40262  for analog output 1 ...

  • Page 19: Warranty

                                  unauthorized modification.        Manufacturer contacts    Evikon MCI OÜ  Teaduspargi 7/9, Tartu  50411 Estonia  info@evikon.eu   www.evikon.eu              19 ...
