Summary of Contents for Evikon E2630-CO

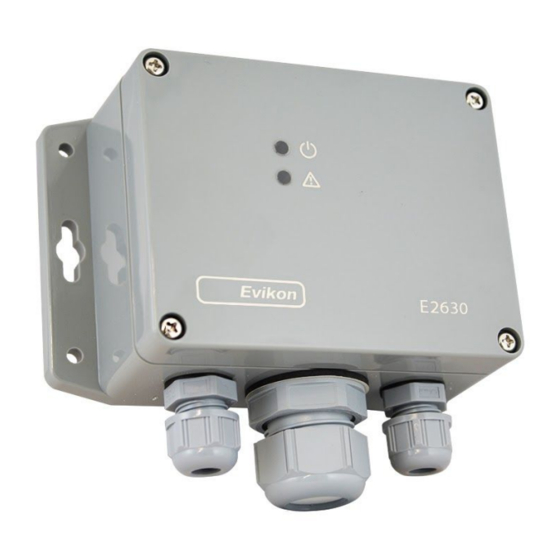

- Page 1 Carbon Monoxide Detector E2630-CO User Manual ...
-
Page 2: Table Of Contents
6 Mounting dimensions 7 Connections 8 Operation 9 Sensor probe handling 10 The electrochemical gas sensor replacement procedures 10 Maintenance 11 Calibration 11 Delivery set 11 Order code for E2630-CO options 11 Warranty 12 Manufacturer contacts 12 2 ... -
Page 3: Carbon Monoxide
E2630-CO Rev 14.12.2020 Carbon Monoxide A Colorless, odorless, and tasteless gas that is highly toxic. Carbon monoxide is formed as a result of incomplete combustion of carbon-containing compounds, e.g. while operating a ... -
Page 4: Specifications
E2630-CO Rev 14.12.2020 Specifications Sensor type Electrochemical cell Sampling method Diffusion Typical detection range 0...200 ppm 0...1000 ppm Alarm setpoints 18 - 25 - 125 ppm 88 - 125 - 250 ppm (release-LOW-HIGH) Response time T90 < 30 seconds Signal update ... -
Page 5: Product Description
E2630-CO Rev 14.12.2020 Product description E2630 series gas detectors are compact and easy-to-use instruments. The devices utilize novel fully calibrated and temperature compensated gas sensors with excellent ... -
Page 6: Installation Guidelines
E2630-CO Rev 14.12.2020 Installation guidelines There are no precise rules or standards to follow when installing gas detectors. The following points must be taken into account: ... -
Page 7: Mounting Dimensions
E2630-CO Rev 14.12.2020 Mounting dimensions 7 ... -
Page 8: Connections
E2630-CO Rev 14.12.2020 Connections 1. Unscrew four lid screws and detach the lid from the device; 2. Attach the device to the wall using provided screws through the side mounting holes or ... -
Page 9: Operation
E2630-CO Rev 14.12.2020 Operation During the first ca. 60 seconds after powering on E2630 performs a warming-up and self-diagnostic routine, indicated by the flashing of each LED. The upper dual-color LED ... -
Page 10: Sensor Probe Handling
E2630-CO Rev 14.12.2020 Sensor probe handling The sensor probes of all types are equipped with a hydrophobic microporous PTFE filter to protect the sensor from dust, dirt, and water drops. The filter may be replaced if it gets ... -
Page 11: Maintenance
immerse the device in water or any cleaning media. Calibration E2630-CO detectors have been calibrated by the Manufacturer with standard gas mixtures ... -
Page 12: Warranty
unauthorized modification. Manufacturer contacts Evikon MCI OÜ Teaduspargi 7/9, Tartu 50411 Estonia info@evikon.eu www.evikon.eu 12 ...
