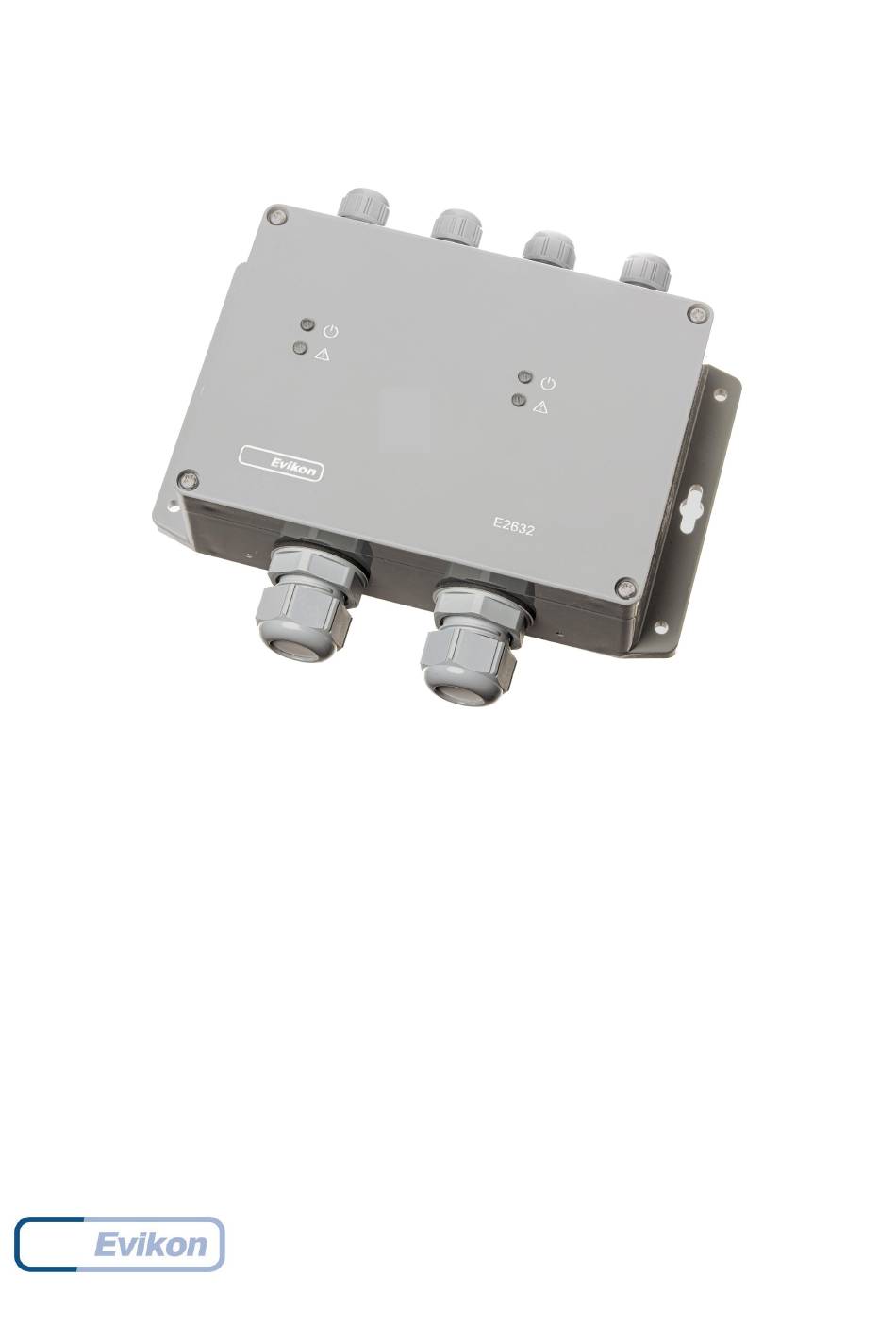

- Page 1 Two Channel Gas Detector E2632 User Manual...
-
Page 2: Table Of Contents
Rev 17.05.2021 Table of contents Gases Specifications Product description Safety requirements Operating conditions Installation guidelines Mounting dimensions Connections Operation Sensor probe handling The electrochemical gas sensor replacement procedures Maintenance Calibration Delivery set Order code for E2632 options Warranty Manufacturer contacts... -
Page 3: Gases
E2632 Rev 17.05.2021 Gases Response Calibration Detection range Sensor type Sensor lifetime time T90 interval Carbon 0-200 ppm Electrochemical >10 years < 30 sec 12 months monoxide 0-1000 ppm Hydrogen sulfide 0-50 ppm Electrochemical >2 years < 25 sec 6 months... -
Page 4: Specifications
E2632 Rev 17.05.2021 Specifications Depends on detected gases Available are: Sensor type Metal oxide sensors, Electrochemical sensors Sampling method Diffusion Signal update Every 1 second 11...30 VDC, Power supply 24 VAC or 90...265 VAC as options Power consumption < 2 VA... -
Page 5: Product Description
E2632 Rev 17.05.2021 Product description E2632 series gas detectors are compact and easy-to-use instruments. The devices utilize novel fully calibrated and temperature compensated gas sensors with excellent repeatability, stability, and long lifetime. Two relays RE1 and RE2 with switching contacts can be used to control alarm sirens, ventilation fans, shut-off valves, or other actuators for each sensor. -
Page 6: Installation Guidelines
E2632 Rev 17.05.2021 Installation guidelines There are no precise rules or standards to follow when installing gas detectors. The following points must be taken into account: ● Application (air quality control or leakage detection.) Properties of the space under investigation (room geometry, direction, and ●... -
Page 7: Mounting Dimensions
E2632 Rev 17.05.2021 Mounting dimensions... -
Page 8: Connections
E2632 Rev 17.05.2021 Connections 1. Unscrew four lid screws and detach the lid from the device; 2. Attach the device to the wall using provided screws through the side mounting holes or key slots (This step may be done before step 1, consider your convenience). -
Page 9: Operation
E2632 Rev 17.05.2021 The terminals on the E2632 series devices are suitable for a wide range of wires with cross-section 0,2...1,5 mm . We recommend to strip the wire end by 5...6 mm and use the wire end sleeves. To connect the wire, loosen the screw, insert the wire end into the terminal hole and tighten the screw. -
Page 10: Sensor Probe Handling
E2632 Rev 17.05.2021 If the gas concentration for each sensor exceeds the LOW alarm setpoint, the bottom red LED of that sensor starts flashing at a rate of 1 Hz, and the relay RE1 switches over. The first alarm stops automatically if the gas concentration drops below 80% of the LOW alarm setpoint. -
Page 11: Maintenance
Calibration E2632 detectors have been calibrated by the Manufacturer with standard gas mixtures before delivery. Provided that the sensor is used under moderate conditions, field recalibration is recommended every few months. The calibration intervals are stated in the gases table. -
Page 12: Warranty
Manufacturer or damaged by customer error or negligence or if there has been an unauthorized modification. Manufacturer contacts Evikon MCI OÜ Teaduspargi 7/9, Tartu 50411 Estonia info@evikon.eu...
