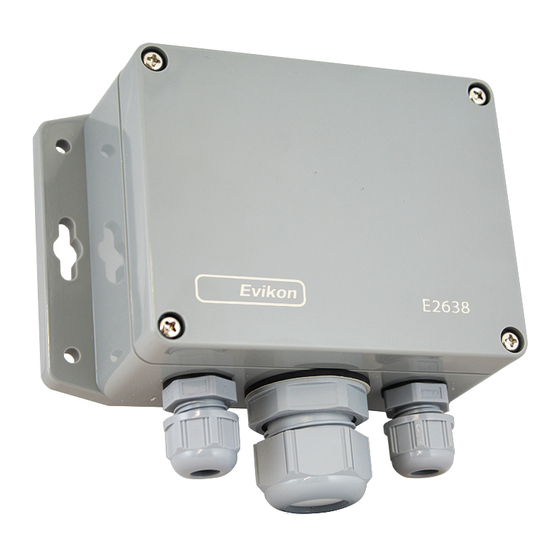

Evikon PluraSens E2638 Series User Manual

Nitrogen dioxide detector-transmitter
Hide thumbs Also See for PluraSens E2638 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
®
PluraSens
Nitrogen Dioxide Detector-Transmitter
E2638-NO2
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PluraSens E2638 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Evikon PluraSens E2638 Series

Summary of Contents for Evikon PluraSens E2638 Series

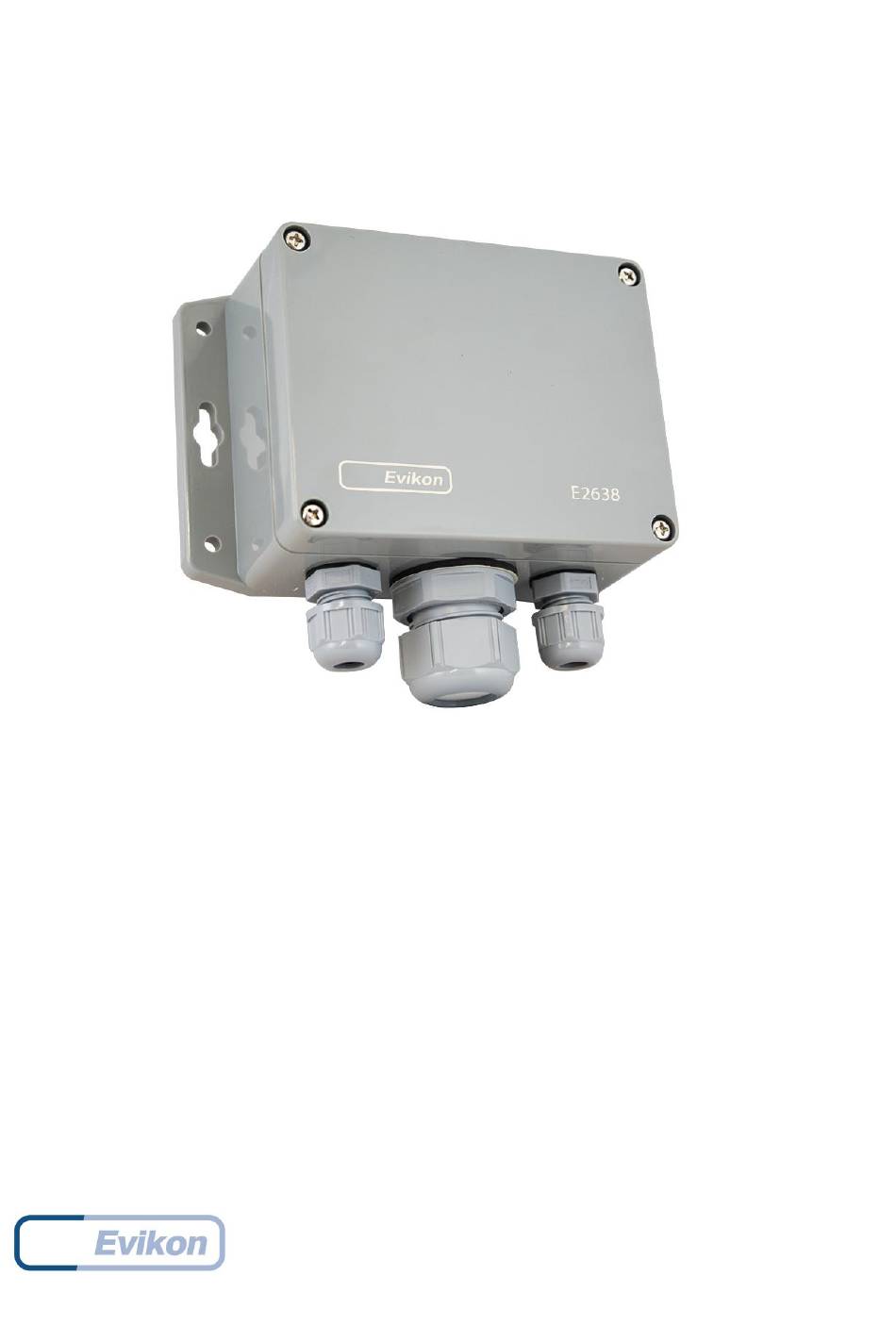

  • Page 1 ® PluraSens Nitrogen Dioxide Detector-Transmitter E2638-NO2 User Manual...

  • Page 2: Table Of Contents

    E2638-NO2 Rev 10.03.2021 Table of contents Nitrogen Dioxide Specifications Product description Safety requirements Operating conditions Installation guidelines Mounting dimensions Sensor probe handling Gas sensor replacement procedures Electrical connections Operation Maintenance Calibration Delivery set Order code for E2638-NO2 options Configuring Return to default settings Modbus RTU Communication RS485 communication interface Communication parameters...

  • Page 3: Nitrogen Dioxide

    E2638-NO2 Rev 10.03.2021 Nitrogen Dioxide A Colorless toxic gas, relatively insoluble in water. When exposed to oxygen (including air), nitric oxide is converted into nitrogen dioxide. Chemical formula Molar weight Relative gas density (to air) 1.59 Conversion 1 ppm = 1.88 mg/m Boiling point 21.2 °C Flammability...

  • Page 4: Specifications

    E2638-NO2 Rev 10.03.2021 Specifications Sensor type Electrochemical cell Sampling method Diffusion Typical detection range 0...20 ppm 0...200 ppm Maximum overload 100 ppm 1000 ppm Resolution / digital unit 0.1 ppm 1 ppm Response time T90 < 60 s <40 s -30...50 °C -20...50 °C 15...90% RH non-condensing, 0,9...1,1 atm...
  • Page 5 E2638-NO2 Rev 10.03.2021 Relay option 2 × SPST relays (closing contact), Output relays 250 VAC / 30 VDC, 5 A max Default alarm setpoints RE1 (LOW): 3 /2.4 ppm Determined by user (set/release) RE2 (HIGH): 6 / 4.8 ppm within 5-95% of the range Signalling options Visual Red and green LEDs...

  • Page 6: Product Description

    E2638-NO2 Rev 10.03.2021 Product description E2638 series detectors-transmitters belong to the PluraSens® family of multifunctional measurement instruments. The instruments utilize gas sensors of various types with excellent repeatability, stability, and long lifetime. E2638 series provides two independent analog outputs OUT1 and OUT2, user-selectable to 4-20 mA or 0-10 V, proportional to gas concentrations.

  • Page 7: Operating Conditions

    E2638-NO2 Rev 10.03.2021 Operating conditions The device should be used both in a non-hazardous area and in a basic electromagnetic environment, where the latter is defined in EN 61326-1. Avoid strong mechanical shock and vibrations. Avoid corrosive atmosphere and areas highly contaminated with dust, oil mist, etc.

  • Page 8: Mounting Dimensions

    E2638-NO2 Rev 10.03.2021 Mounting dimensions Front view Bottom view...

  • Page 9: Sensor Probe Handling

    E2638-NO2 Rev 10.03.2021 Sensor probe handling The E2638 series devices are available with a remote probe. The remote probe is connected to the main unit with a shielded cable. The default remote probe cable length is 3 m. Wall mount remote probe with fixing clamp (default version), Remote probe with rubber flange and three self-tapping screws (on request) The sensor probes of all types are equipped with a hydrophobic microporous PTFE filter to protect the sensor from dust, dirt, and water drops.

  • Page 10: Electrical Connections

    E2638-NO2 Rev 10.03.2021 Electrical connections Unscrew four lid screws and detach the lid from the device. Use two M16 cable glands to let in the cables of the power supply and of the external devices. Without turning on the power, plug the power cable, and connect the analog/relay outputs and/or digital interface terminals to the necessary devices according to the relevant connection diagram.
  • Page 11 E2638-NO2 Rev 10.03.2021 The screwless quick connect spring terminals on the E2638 series devices are suitable for a wide range of wires with a cross-section of 0.2...1.5 mm . We recommend to strip the wire end by 8...9 mm and use wire end sleeves. To connect the wire, insert the wire end into the terminal hole.

  • Page 12: Operation

    E2638-NO2 Rev 10.03.2021 Operation Turn on the power. The instrument warm-up time takes about 1 minute after switching on and the final sensor stabilization time to maximum accuracy takes about 30 minutes. The operating status is indicated by the LED on the PCB of the device. The control LED (red) response to different processes is presented in the following table: Mode LED mode...

  • Page 13: Delivery Set

    E2638-NO2 Rev 10.03.2021 Delivery set Detector-transmitter E2638 ● Mounting accessories: ● 4 screws with plastic dowels ○ Fixing clamp for remote probe version ○ Order code for E2638-NO2 options E2638 options Order code Remote probe, 3 m cable E2638-NO2-RP33-3 Remote probe, 10 m cable E2638-NO2-RP33-10 Duct mount option, stem Ø35×L230 mm E2638-NO2-DM...

  • Page 14: Configuring

    E2638-NO2 Rev 10.03.2021 Configuring A standard configuration kit includes a USB-RS485 converter, fixed flow regulator, gas tubing with applicators, and a software pack. Please contact your Seller for more information. Detectors-transmitters E2638 share all functionalities of the PluraSens® multifunctional platform. The features and options include: ●...

  • Page 15: Modbus Rtu Communication

    E2638-NO2 Rev 10.03.2021 Modbus RTU Communication RS485 communication interface Databits: 8 Supported Modbus functions: Parity: none / odd / even 03 – Read multiple registers Stop bits: 1 or 2 06 – Write a single register Protocol: Modbus RTU Communication parameters Parameter Permitted values Default...
  • Page 16 E2638-NO2 Rev 10.03.2021 1200, 2400, 4800, 9600, 19200, 0x0005 5 / 40006 RW Baud rate * 9600 38400, 57600 0x0006 6 / 40007 RW Response delay, ms 1...255 1 – No parity bit, 1 stop bit (default after factory reset) 2 –...
  • Page 17 E2638-NO2 Rev 10.03.2021 0 –none 2 – gas concentration 211 / Parameter tied to relay 0x00D3 9 – control by Modbus 40212 control, state set in MHR / 40214 0 – none 2 – gas concentration 212 / Parameter tied to relay 0x00D4 9- –...
  • Page 18 E2638-NO2 Rev 10.03.2021 0 – none 220 / 0x00DC RW Control logic for relay RE2 1 – relay on at high values 40221 2 – relay on at low values 3 – relay on at values within the range 4 – relay on for the values out of the range 221 / LOW setpoint for relay...
  • Page 19 E2638-NO2 Rev 10.03.2021 bit[8]=0/1 – LED deactivated/activated bit[9]=0/1 – buzzer deactivated/activated bit[10]=0/1 - LED is on/off in normal condition bit[11]=0/1 - 1 Hz (50% on, 50% off) LED signal off/on if relay1 turned on bit[12]=0/1 - 2 Hz (50% on, 50% off) LED signal off/on if relay2 turned on 257 /...

  • Page 20: Warranty

    Manufacturer or damaged by customer error or negligence or if there has been an unauthorized modification. Manufacturer contacts Evikon MCI OÜ Teaduspargi 7/9, Tartu 50411 Estonia info@evikon.eu...
