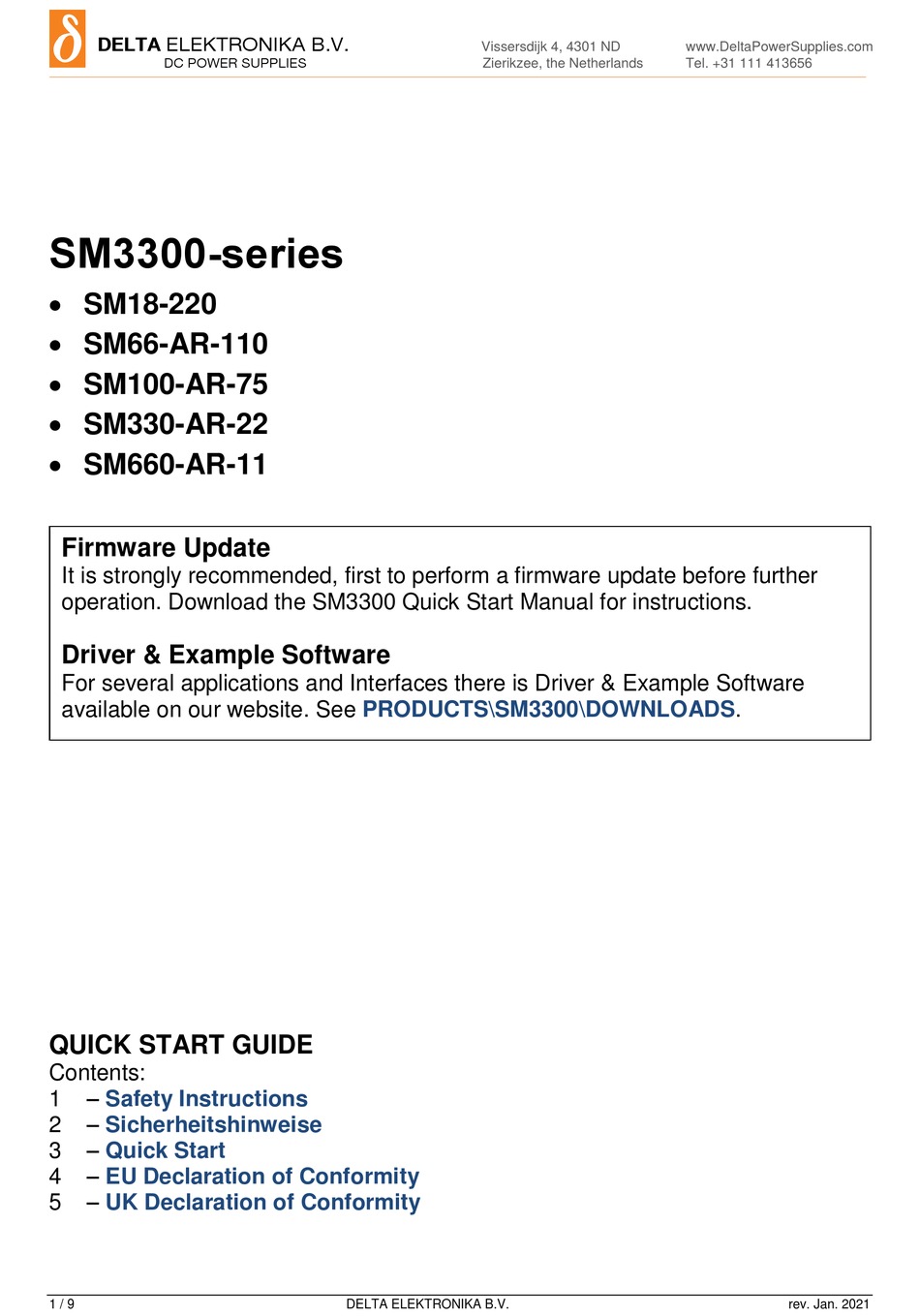

DELTA ELEKTRONIKA B.V.

DC POWER SUPPLIES

SM3300-series

 SM18-220

 SM66-AR-110

 SM100-AR-75

 SM330-AR-22

 SM660-AR-11

Firmware Update

It is strongly recommended, first to perform a firmware update before further

operation. Download the SM3300 Quick Start Manual for instructions.

Driver & Example Software

For several applications and Interfaces there is Driver & Example Software

available on our website. See PRODUCTS\SM3300\DOWNLOADS.

QUICK START GUIDE

Contents:

–

Safety Instructions

–

Sicherheitshinweise

–

Quick Start

–

EU Declaration of Conformity

–

UK Declaration of Conformity

1 / 9

Vissersdijk 4, 4301 ND

Zierikzee, the Netherlands

DELTA ELEKTRONIKA B.V.

www.DeltaPowerSupplies.com

Tel. +31 111 413656

rev. Jan. 2021

Need help?

Do you have a question about the SM3300 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Delta Elektronika SM3300 Series

Page 1 DELTA ELEKTRONIKA B.V. Vissersdijk 4, 4301 ND www.DeltaPowerSupplies.com DC POWER SUPPLIES Zierikzee, the Netherlands Tel. +31 111 413656 SM3300-series  SM18-220  SM66-AR-110  SM100-AR-75  SM330-AR-22  SM660-AR-11 Firmware Update It is strongly recommended, first to perform a firmware update before further operation.
Page 2 Failure to comply with the safety precautions or warnings in this document violates safety standards of design, manufacture and intended use of this equipment and may impair the built-in protections. Delta Elektronika shall not be liable for user’s failure to comply with these requirements.
Page 3 Warning! High currents can run through the DC power terminals. These currents cause strong magnetic fields. Do not come near if you have an electro medical device such as a pacemaker. 1.15 Environmental Conditions  The Delta Elektronika power supplies safety approval applies to the following operating conditions:  Usage : Indoor use only.
Page 4 Die Nichteinhaltung der Sicherheitsvorkehrungen oder Warnungen in diesem Dokument verstößt gegen die Sicherheitsstandards im Hinblick auf Bauart, Produktion und vorgesehene Nutzung dieses Geräts und kann die eingebauten Schutzvorrichtungen beschädigen. Delta Elektronika haftet nicht dafür, wenn der Nutzer diesen Anforderungen nicht nachkommt.
Page 5 Warnung! Hohe Ströme können durch die DC-Anschlussklemmen laufen. Diese Ströme verursachen starke Magnet- felder. Kommen Sie nicht in die Nähe, wenn Sie ein elektromedizinisches Gerät wie einen Herzschrittmacher haben. 2.15 Umgebungsbedingungen Die Stromversorgungssicherheitszulassung von Delta Elektronika gilt für die folgenden Betriebsbedingungen:  Gebrauch : Nur Innengebrauch.
Page 6  In the web interface, go to Administration > Firmware.  Select "Choose File" and browse to the downloaded package, enter password and "Start Update". *Note: when DHCP is enabled, the IP-address can change, for example after a power cycle. 6 / 9 DELTA ELEKTRONIKA B.V. rev. Jan. 2021...
Page 7 Products > SM3300 > Downloads. Note: It is strongly recommended to regularly check for updates for additional functionality and improvements. fig 3 - 6 Regularly check for new versions of user manual and firmware. 7 / 9 DELTA ELEKTRONIKA B.V. rev. Jan. 2021...
Page 8: Dc Power Supplies
EU DECLARATION SM3300 DELTA ELEKTRONIKA B.V. Vissersdijk 4, 4301 ND www.DeltaPowerSupplies.com DC POWER SUPPLIES Zierikzee, the Netherlands Tel. +31 111 413656 EU Declaration of Conformity – SM3300-series Delta Elektronika Vissersdijk 4 4301 ND ZIERIKZEE The Netherlands Declare under sole responsibility that the following Power Supplies:...
Page 9 UK DECLARATION SM3300 DELTA ELEKTRONIKA B.V. Vissersdijk 4, 4301 ND www.DeltaPowerSupplies.com DC POWER SUPPLIES Zierikzee, the Netherlands Tel. +31 111 413656 UK Declaration of Conformity – SM3300-series Product: SM3300 Power Supply Series Model Numbers: SM18-220, SM66-AR-110, SM100-AR-75, SM330-AR-22, SM660-AR-11. Manufacturer: Name: Delta Elektronika B.V.
