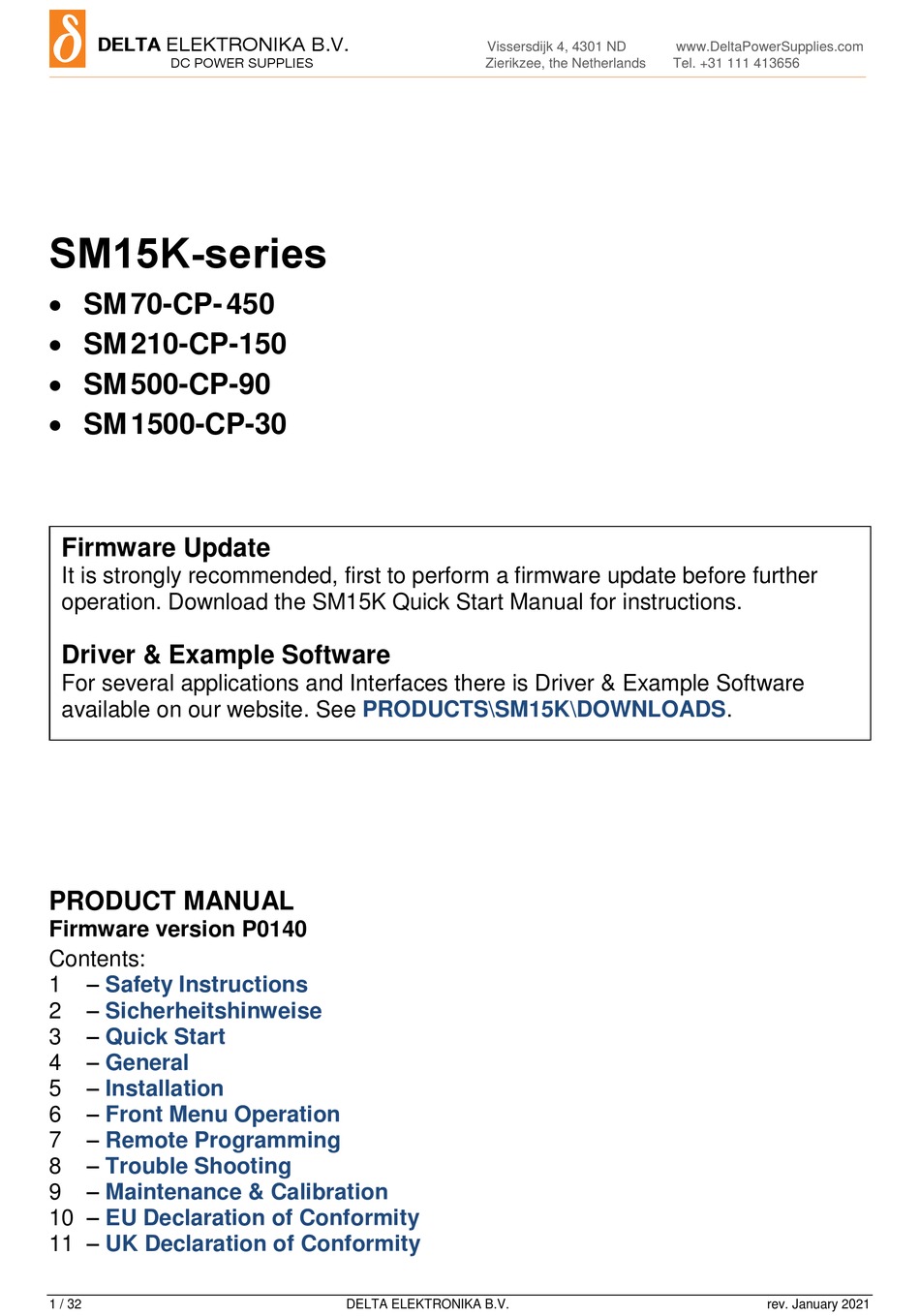

DELTA ELEKTRONIKA B.V.

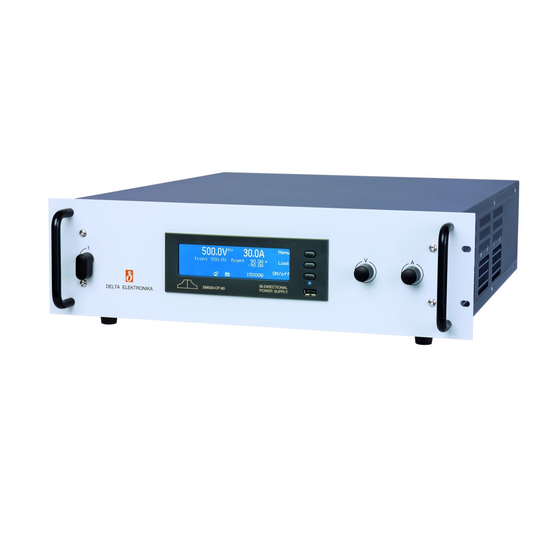

DC POWER SUPPLIES
SM15K-series
 SM 70-CP- 450
 SM 210-CP-150
 SM 500-CP-90
 SM 1500-CP-30
Firmware Update
It is strongly recommended, first to perform a firmware update before further
operation. Download the SM15K Quick Start Manual for instructions.
Driver & Example Software
For several applications and Interfaces there is Driver & Example Software
available on our website. See PRODUCTS\SM15K\DOWNLOADS.
PRODUCT MANUAL
Firmware version P0140
Contents:
–
1
Safety Instructions
–
2
Sicherheitshinweise
–
3
Quick Start
–
4
General
–
5
Installation
–
6
Front Menu Operation
–
7
Remote Programming
–
8
Trouble Shooting
–
9
Maintenance & Calibration
10 –
EU Declaration of Conformity
11 –
UK Declaration of Conformity
1 / 32
Vissersdijk 4, 4301 ND
Zierikzee, the Netherlands
DELTA ELEKTRONIKA B.V.
www.DeltaPowerSupplies.com
Tel. +31 111 413656
rev. January 2021
