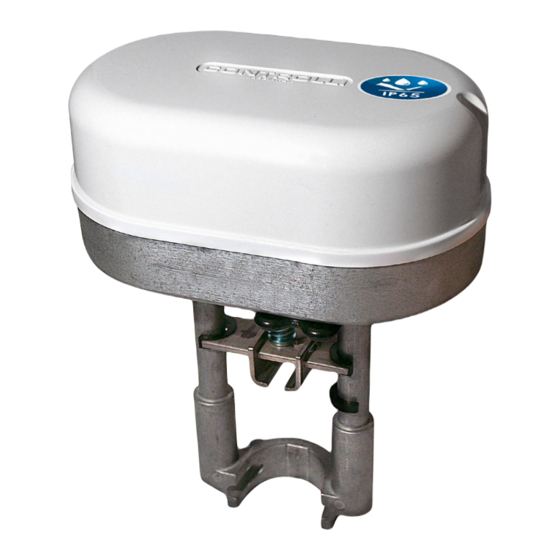

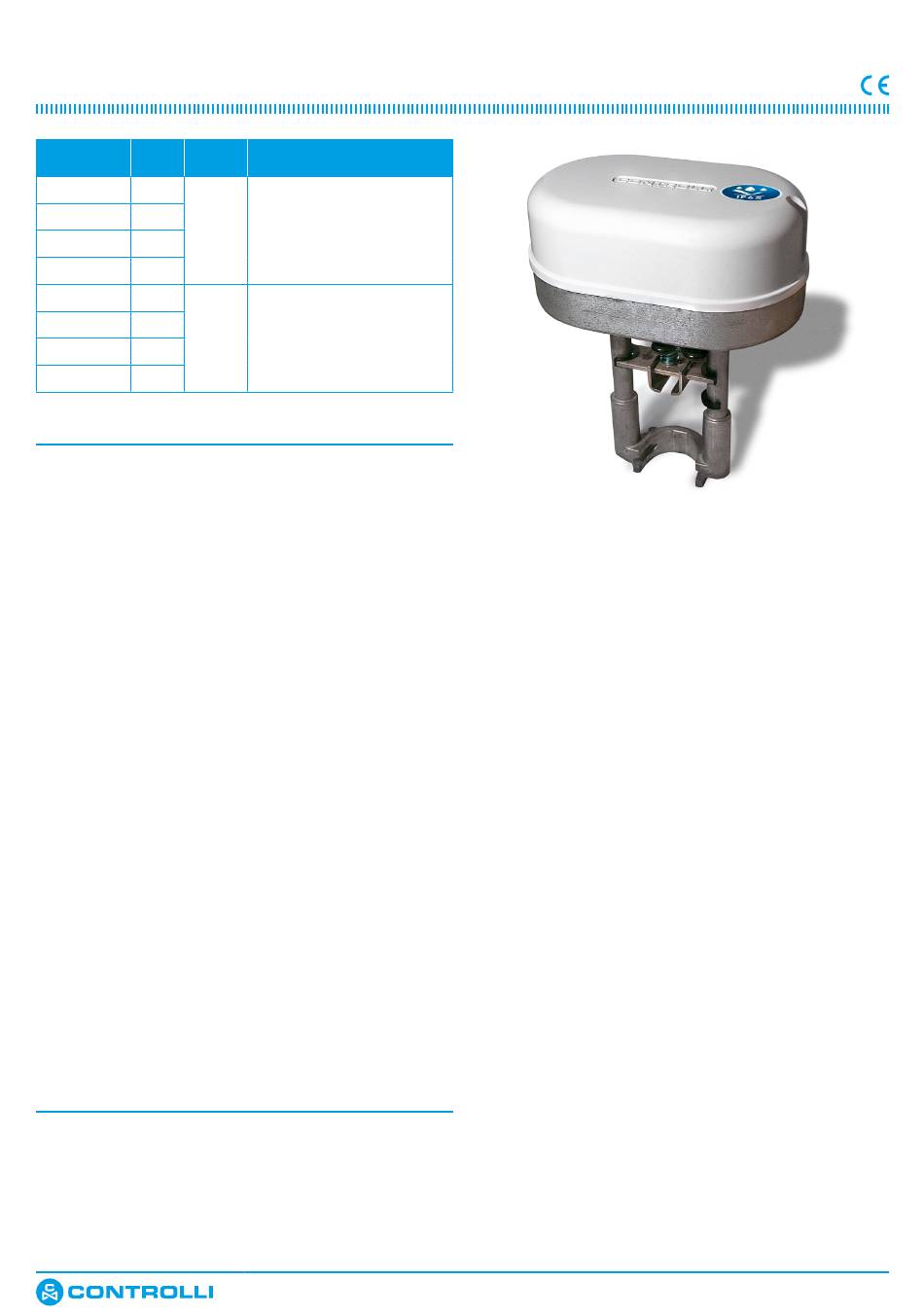

Controlli MVE2 R-65 Series Manual

IP65 Globe Valves Actuators
with Emergency Fail Safe Function
FORCE POWER
MODEL
[N] SUPPLY
MVE204R-65 400
MVE206R-65 600
230Vac
MVE210R-65 1000
MVE215R-65 1500
MVE204SR-65 400
MVE206SR-65 600
230Vac
MVE210SR-65 1000
MVE215SR-65 1500
APPLICATION AND USE
MVE2xxR-65 is a flexible electro-mechanical actuator equipped with
electronic fail safe function device for the control of two-way and
three-way globe valves in:
• Heating and cooling systems;
• Air Handling Units;
• District heating plants;
• Industrial temperature control systems.
The actuator is endowed with an electronic emergency return func-
tion which operates through the use of ultracapacitors whose life is
about 10 years if the actuator operates within the operation limits
declared in this data sheet.
The emergency position (retracted or extended stem) is set through
the use of a jumper which can be easily reached (look at paragraph
"DIP switches and jumper settings").
The actuator is supplied with totally discharged ultracapacitors and
at its first start a pre-charge phase of 130s max will be necessary.
N.B.: in this condition during the first 20-30s no LED signal on the ult-
racapacitors upper control board will be revealed; when this inter-
val has elapsed the RED LED will power on (ultracapacitors charging
phase, look at table on page 7).
During this phase all the functions of the actuator are inhibited and
the charge status of the ultracapacitors is signalled through 2 LEDs
(look at paragraph "Standard LEDs").
MVE2xxR-65 can be controlled either by a proportional (modulating)
signal or by an increase/decrease (floating) signal.
It is easy to mount and connect the actuator. Direct mounting is pos-
sible to any CONTROLLI flanged valve. Linkage kits are available for
CONTROLLI threaded valves as well as for valves of other manufac-
turers. The actuator has a fine resolution (500 steps on the full stroke
range) for accurate fluid control and it is able to self-calibrate on a
different stroke without the need of any user action (this function is
DIP switch selectable on the field).
MVE2xxR-65 has intelligent behaviour and alarm functionality in case
of unexpected operation, feedback of alarms to the user is provided
by LEDs (GREEN and RED) on the actuator inferior control board.
N.B.: do not use the actuator if not coupled with its relating valve.
MVE2xxR-65 is suitable for harsh environment requiring IP65 protec-
tion degree.
OPERATION
The actuator is endowed with an emergency fail safe function which,
in case of power failure, allows to close (or to open) the valve and to
Controlli S.p.A.
16010 Sant'Olcese (GE)
Tel. 010 73 06 1
Fax. 010 73 06 870/871
www.controlli.eu
DESCRIPTION
long yoke, modulating/
floating control with position
emergency return with
totally open or closed valve
selectable through jumper,
IP65
short yoke, modulating/
floating control with position
emergency return with
totally open or closed valve
selectable through jumper,
IP65
1 Issue rev. c
st
MVE2xxR-65
go back to the set position through the jumper.
The actuator commutes the control signal (modulating or 3-point
floating) from the controller into a valve position. A modern brushless
DC motor in the actuator drives a gear train and a worm gear –
screw jack mechanism convert the motor revolutions into accurate
and repeatable linear movements.
Control Signal
MVE2xxR-65 can be controlled by one of 2 main control types.
• 3-point floating ;
• modulating (or proportional) signal with filed selectable range
(e.g., 0-10Vdc, 2-10Vdc, 0-5/2-6Vdc, 5-10/6-10Vdc and 4-20mA).
Manual Override
There is a manual operation handle on the actuator. When it is low-
ered (manual override ON), the power supply to the motor power
stage circuitry is cut and the motor stops. The actuator can be oper-
ated manually and the valve positioned accordingly.
The manual override lever stays in position until it is raised again, then
board and motor will be powered again. At the end of this opera-
tion, the actuator moves to initial position (on the basis of DIP n. 1 set-
ting), then it follows the control signal. When the manual override is
engaged the GREEN and the RED LED on the lower electronic board
are ON.
Manual operation handle can also be used to modify any DIP switch
setting or as re-set function after any alarm occurrence.
The actuator is supplied with the manual override lowered (ON). It
is not necessary to remove power supply to modify DIP switches set-
ting, but, in this case, pay attention to 230V high voltage presence.
Position Feedback
The actuator provides a feedback signal of:
• 2-10Vdc in direct or reverse action (look at DIP n. 1 settings)
• 1Vdc during the emergency return phase
Calibration
The actuator has both auto and manual stroke calibration. The ac-
tuator is delivered with DIP n. 7 set to auto. Manual calibration is not
necessary unless maintenance is required on the valve or certain
alarm functions are desired.
End Point Auxiliary Switches (with accessory DMVE)
End point switches change over when the valve is fully open or
closed. They are free contacts with 24Vac/dc, 4A max voltage on
terminals. End point switches can be utilized to indicate valve stroke
04/2018 DBL563e Page 1
