VIDEOKIT

VRVK SERIES

"6 Wire" bus one way, two way vandal resistant videokit

VRVK

Rev.0.2

VRVKC

66250693-EN - V5.1 - 30/09/20

Rev.0.3

Installation handbook

6256

We recommend

This equipment is installed by a

Competent Electrician, Security or

Communications Engineer.

Table of Contents

Need help?

Do you have a question about the VRVK Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Videx VRVK Series

Page 1 VIDEOKIT VRVK SERIES “6 Wire” bus one way, two way vandal resistant videokit VRVK Rev.0.2 VRVKC Rev.0.3 6256 Installation handbook We recommend 66250693-EN - V5.1 - 30/09/20 This equipment is installed by a Competent Electrician, Security or Communications Engineer.
Page 2: Table Of Contents
This manual has been written and revised carefully. The instructions and the descriptions which are included in it are referred to VIDEX parts and are correct at the time of print. However, subsequent VIDEX parts and manuals, can be subject to changes without notice.
Page 3: System Components And Available Versions
VRVK/6256 Series “6 wire Bus” Vandal Resistant videokit System components and available versions VRVK/6256 Colour videokit. OUTDOOR INDOOR STATION STATION 135,0 45,0 15,70 43,0 Videophone Art. 6256 pag. 17 Camera unit Art. VR4KCM pag. 7 ACCESSORIES Power supply Speaker unit Art.
Page 4 VRVK/6256 Series “6 wire Bus” Vandal Resistant videokit System components and available versions VRVKC/6256 Colour videokit plus a codelock module. OUTDOOR INDOOR 135,0 45,0 15,70 43,0 STATION STATION Videophone Art. 6256 Camera unit pag. 17 Art. VR4KCM pag. 7 Speaker unit ACCESSORIES Art.
Page 5: General Directions For Installation
VRVK/6256 Series “6 wire Bus” Vandal Resistant videokit General directions for installation CONNECTION TO MAINS The system must be installed according to national rules in force, in particular we recommend to: • Connect the system to the mains through an all-pole circuit breaker which shall have contact separation of at least 3mm in each pole and shall disconnect all poles simultaneously;...
Page 6: Troubleshooting Guide
VRVK/6256 Series “6 wire Bus” Vandal Resistant videokit Troubleshooting guide In case of system failure, try the following preliminary checks: • Check that the cables are connected as shown in the installation diagram and that the cables are rmly xed into the relevant terminals; •...
Page 7 VRVK/6256 Series “6 wire Bus” Vandal Resistant videokit Art. VR4KCMC Camera module Rev.0.2 Art.130 = Active low camera enable = Heater- = Ground = Video Sig. Sync+ = Heater+ = Video Sig. Sync- +20 = +20Vdc power supply = Video Sig. Coax +12 = +12Vdc power supply Fig.
Page 8: Art. Vr4Kcm Camera Module
VRVK/6256 Series “6 wire Bus” Vandal Resistant videokit Art. VR4KCMC Camera module CONNECTION TERMINALS SIGNALS TECHNICAL SPECIFICATION Working voltage: 12Vdc/24Vdc Active low input to enable the camera lightning (the Power consumption while operating: 100mA jumper JP2 must be moved in SL position) Working Temperature: -10 +50°C Heater ground input...
Page 9 VRVK/6256 Series “6 wire Bus” Vandal Resistant videokit Art. VR4KAMK Speaker unit Art.140 Amplifier for VR4KV Series Videokits P1 = Red / Rosso P2 = White / Bianco – = Blue / Blu Made in Italy NO NC C PTE SL BS 2 1 +12 +20 P1 = Red P2 = White –...
Page 10: Art. Vr4Kamk Speaker Unit
VRVK/6256 Series “6 wire Bus” Vandal Resistant videokit Art. VR4KAMK Speaker unit SETTINGS DIP SWITCH & JUMPERS 4 WAY DIP SWITCH JUMPERS J1, J2 First two switches are used to set the speaker unit address: the J1 Position Call tone reassurance volume speaker unit address is required for camera recall operation on Right High...
Page 11 VRVK/6256 Series “6 wire Bus” Vandal Resistant videokit Art. VR4KAMK Speaker unit NAME PLATE HOLDER AND LED MODULE INSTALLATION NAME PLATE HOLDER INSTALLATION FIG. 5 1. Insert the name plate holder 2. Insert the name plate support 3. Insert the screws LED MODULE INSTALLATION FIG.
Page 12 In order to achieve the best results from the schematics de- • 3 Programmable secret codes (one for each relay); scribed it is necessary to install only original VIDEX equipment, • Each relay can be set to be activated for a speci c time (01 to strictly keeping to the items indicated on each schematic and 99 seconds) or to work as latch;...
Page 13 VRVK/6256 Series “6 wire Bus” Vandal Resistant videokit Art. VR4901 Digital codelock module LOCK RELEASE BACK EMF PROTECTION A varistor must be tted across the ter- VARISTOR MOV DIODE 1N4002 minals on AC lock release (Fig. 3) and a diode must be tted across the ter- minals on a DC lock release (Fig.
Page 14 VRVK/6256 Series “6 wire Bus” Vandal Resistant videokit Art. VR4901 Digital codelock module PROGRAMMING • Enter the ENGINEER’S CODE: rst time type six times 1 (111111 First time six times ENTER THE factory preset) and press ENTER (The red LED will illuminate); 1 “111111”...
Page 15 VRVK/6256 Series “6 wire Bus” Vandal Resistant videokit 4000 Series Surface and ush mounting door station installation EXAMPLE: INSTALLING A FOUR MODULE OUTDOOR STATION g. 1 g. 2 g. 3 g. 4 g. 5 g. 6 g. 7 g. 8 g.
Page 16: 4000 Series Surface And Ush Mounting Door Station Installation
VRVK/6256 Series “6 wire Bus” Vandal Resistant videokit 4000 Series Surface and ush mounting door station installation INSTALLING A SURFACE MOUNT DOOR STATION 1. Place the surface box against the wall (165-170cm between the top of the box and the oor level as shown in Fig. 1) and mark the xing holes for the wall plugs and the hole for the cables ( g.

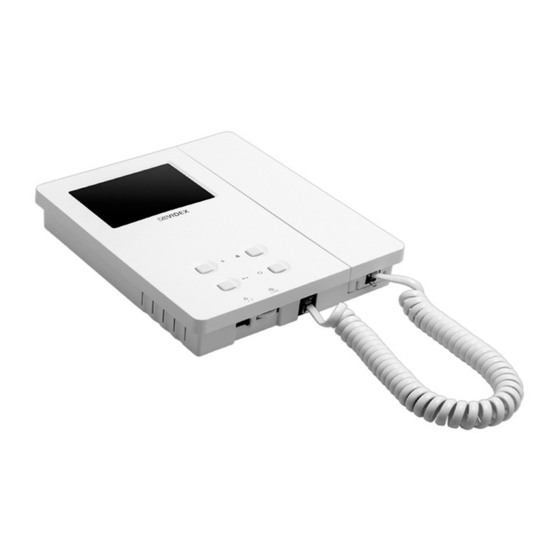

Page 17 VRVK/6256 Series “6 wire Bus” Vandal Resistant videokit Art. 6256 3.5" colour videophone 27 mm 144 mm PT3 PT2 Fig. 1 Fig. 2 DESCRIPTION LEGEND Surface mount videophone incorporating a 3.5” Hi-Res full Connection terminals colour active matrix LCD monitor speci c for “6 wire” videokit 8 Way dip switch bank (VK4K, VRVK and VK8K range).
Page 18: Art. 6256 3.5" Colour Videophone
VRVK/6256 Series “6 wire Bus” Vandal Resistant videokit Art. 6256 3.5" colour videophone LEDS CONTROLS Call tone volume switch Door open LED (3 levels). Can be used to indicate the status of a door or gate. It re- Brightness control quires a switched 12Vdc connection to terminal “LD”.
Page 19 VRVK/6256 Series “6 wire Bus” Vandal Resistant videokit 6200 Series Videophone wall mounting instructions Fig. 1 Fig. 2 Fig. 3 Fig. 5 Fig. 4 Fig. 6 Fig. 7 1. In order to install the videophone, it is necessary to remove the cover, which contains all the electronics, from the base: rstly disconnect the handset from the videophone (by removing its plug from the videophone) then insert a 5.5mm at screw driv- er into the clip then rotate clockwise until you listen a “CLICK!”.
Page 20 VRVK/6256 Series “6 wire Bus” Vandal Resistant videokit Art. 316 - Art. 316N 4 Way video distributor for system with balanced video signal DESCRIPTION ART. 316 4 Way video distributor for systems with balanced video signal. In white plastic ABS box 11x70x30mm surface mount. ART.
Page 21 Art.140 Art.140 Title: Data creazione: Foglio 22/10/2015 Titolo: Data modifica: 01/12/2015 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto )FM) Note: Cod.File: Phone: +39 0734 631669 - Fax +39 0734 631669 vrvk62h-001.dwg www.videx.it - info@videx.it - 21 - 66250693-EN - V5.1 - 30/09/20...
Page 22 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 01/12/2015 01/12/2015 Marco Rongoni vrvk62h-002.dwg - 22 - 66250693-EN - V5.1 - 30/09/20...
Page 23 - 23 - 66250693-EN - V5.1 - 30/09/20...
Page 24 - 24 - 66250693-EN - V5.1 - 30/09/20...
Page 25 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 01/12/2015 01/12/2015 Marco Rongoni vrvk62h-005.dwg - 25 - 66250693-EN - V5.1 - 30/09/20...
Page 26 Art.140 Art.140 Title: Data creazione: Foglio 29/10/2015 Titolo: Data modifica: 29/10/2015 Videx Electronics S.p.A. Notes: Autore: Marco Rongoni Via del Lavoro 1, 63846 Monte Giberto )FM) Note: Cod.File: Phone: +39 0734 631669 - Fax +39 0734 631669 v vk-1-001-2e.d www.videx.it - info@videx.it - 26 - 66250693-EN - V5.1 - 30/09/20...
Page 27 DISPOSAL In accordance with the Legislative Decree no. 49 of 14 March 2014 “Implementation of the Directive 2012/19/EU on waste electrical and electronic equipment (WEEE)”. The crossed-out bin symbol on the equipment or on the packaging indicates that when the product reaches the end of its lifetime, it must be collected separately from mixed municipal waste.
Page 28 MANUFACTURER VIDEX ELECTRONICS S.P.A. FABBRICANTE Via del Lavoro, 1 FABRICANT 63846 Monte Giberto (FM) Italy FABRICANTE Tel (+39) 0734 631669 FABRIKANT Fax (+39) 0734 632475 www.videx.it - info@videx.it CUSTOMER SUPPORT VIDEX ELECTRONICS S.P.A. UK Customers only: SUPPORTO CLIENTI www.videx.it - technical@videx.it...
