- Page 1 Actuator LA10 system User manual LINAK.COM/HOMELINE Page 1 of 22...
-
Page 2: Table Of Contents
® Warranty ........................10 Maintenance ....................... 10 System overview ....................11 Description of the HOMELINE LA10 Standard system ..........12 ® How to pair ........................ 12 Mounting the locking device ..................13 Disposal of LINAK products................... 14 Main groups of disposal ....................14 Disposal of batteries.................... -
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Valid For
Valid for This User Manual is valid for the following products: (See the first 3 - 5 characters on the label) Actuators: LA10 Power supply: SMPS001, SMPS002 or SMPS006 Controls: HC05 Wireless, HC10 Wireless, HB10 Wireless or BP12 Accessories: BLE2DC, CP001, CP002, CP003 or USB2DC... -
Page 5: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 6: Safety Issues
Assure free space for movement of application in both directions to avoid blockade. The appliance is only to be used with the power supply unit provided with the appliance. Safety issues The builder of the equipment shall ensure that the use of the component complies with relevant standards –... -
Page 7: Before Installation, Re-Installation, Or Troubleshooting
• Make sure that the voltage of the actuator system/SMPS is correct before the system is connected to the mains. • System connection. The individual parts must be connected before the actuator system/SMPS is connected to the mains. See the User Manual for LINAK actuators, if necessary. During operation •... -
Page 8: Only For Eu Markets
Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 9: Repairs
Products under warranty must also be returned to authorised LINAK service centres. Further information on the LINAK warranty can be found on the LINAK website [LINK]. -
Page 10: Misc. On The Homeline ® System
® Warranty This HOMELINE product is subject to warranty pursuant to the terms of LINAK HOMELINE Warranty Paper, available on the LINAK website [link]. Maintenance Clean dust and dirt on the outside of the system at appropriate intervals and inspect for damage and breaks. -
Page 11: System Overview
System overview The LA10 system is connected to the mains via an SMPS001/002/006 and controlled by a Bluetooth hand control or the ® mobile App. Page 11 of 22... -

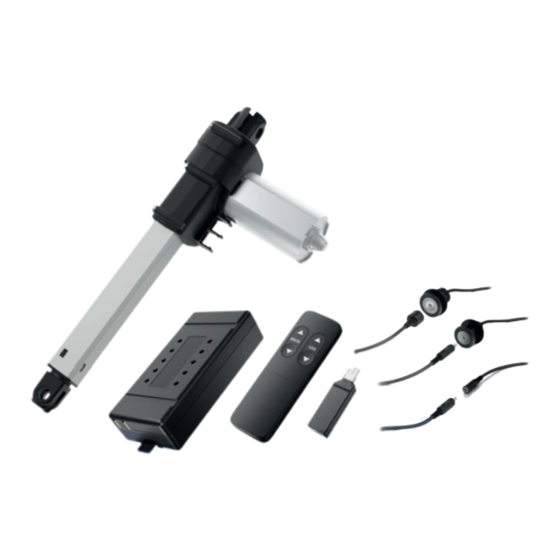

Page 12: Description Of The Homeline ® La10 Standard System
• Connect the actuators in the system in series. • Connect the SMPS unit to one of the LA10 linear actuators via a DC port and switch on the mains. • Finally set up the wireless control unit to the system, by pressing the two top buttons on the control unit within the first 3 minutes after connecting the system to the mains. -
Page 13: Mounting The Locking Device
Mounting the locking device To ensure optimal cable relief on the SMPS001/002 a locking device (0705889) should be used. Follow the guide below on how to fix the locking device on the SMPS. 1. Take the SMPS 2. Plug the 2-poled DC cable in the SMPS 3. -
Page 14: Disposal Of Linak Products
Disposal of LINAK products As LINAK customers often ask us how our products can be disposed of or scrapped, we have prepared this guidance that enables a classification to different waste fractions for recycling or combustion. Guidance We recommend our products be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 15: Labels
Labels Label for LA10 Label for BLE2DC Label for BP12 Label for SMPS001 Label for SMPS002 Label for SMPS006 Page 15 of 22... - Page 16 Label for HB10 Wireless Label for HC05 Wireless Label for HC10 Wireless FCC warning Page 16 of 22...
-
Page 17: Drawing Appendix
IC warning Drawing appendix LA10 Page 17 of 22... - Page 18 SMPS001 SMPS002 Page 18 of 22...
- Page 19 SMPS006 BP12 Page 19 of 22...
- Page 20 HC05 Wireless HC10 Wireless Page 20 of 22...
- Page 21 LINAK customer using any LINAK product. LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question.
-
Page 22: Addresses
While LINAK uses its best efforts to fulfil orders, LINAK cannot, for the same reasons as mentioned above, guarantee the availability of any particular product. Therefore, LINAK reserves the right to discontinue the sale of any product displayed on its website or listed in its catalogues or other written material drawn up by LINAK.
