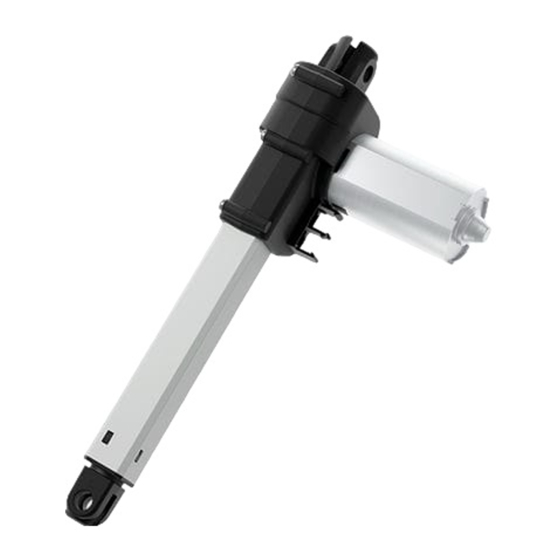

Summary of Contents for Linak Homeline LA10
- Page 1 Actuator LA10 system User manual LINAK.COM/HOMELINE Page 1 of 24...
-
Page 2: Table Of Contents
Mounting the BP12 bracket ......................16 Initialising the system ......................... 17 Pairing the remote ........................17 Re-initialising the system ......................17 Disposal of LINAK’s products ..................... 18 Main groups of disposal ......................18 Disposal of batteries ........................18 Labels.............................. 19 Drawings ............................ -
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Valid For
Valid for: This User Manual is valid for the following products: (See the first 3 - 5 characters on the label) Actuators: LA10 Controls: BLE2DC, BP12 Charging Point: CP001, CP002 Page 4 of 24... -
Page 5: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 6: Safety Issues
The appliance is only to be used with the power supply unit provided with the appliance. Furthermore take care about the connecting wires from the power supply to the LA10 System, don’t damage this by overrun. Assure free space for movement of application in both directions to avoid blockade. -
Page 7: Before Installation, Re-Installation Or Troubleshooting
• Make sure that the voltage of the control box/SMPS is correct before the system is connected to the mains. • System connection. The individual parts must be connected before the control box /SMPS is connected to the mains. See the User Manual for LINAK actuators, if necessary. During operation •... -
Page 8: Only For Eu Markets
Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 9: Manufacturer's Declaration
Page 9 of 24... -
Page 10: Declaration Of Conformity
Smedevænget 8 DK - 6430 Nordborg hereby declares that LINAK Actuator System composed of: Linear Actuator: 10aaabbb00000000-cccde0ffgghij, (Where - aaa can be 040 or 060; bbb can be between 25 and 150; ccc can be between 153 and 278; d can be 1, 2, 3 or 4; e can be 1, 2, 3 or X; f can be 0 or 1; gg can be any character;... -
Page 11: Misc. On The Homeline ® System
Misc. on the HOMELINE system ® Maintenance Clean dust and dirt on the outside of the system at appropriate intervals and inspect for damage and breaks. Inspect the connections, cables, and plugs and check for correct functioning as well as fixing points. The cleaners and disinfectants must not be highly alkaline or acidic (pH value 6-8). -
Page 12: Description Of The Homeline ® La10 System
• BP12 control unit • Bracket for BP12 • Charging point CP001/CP002 The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by LINAK A/S is under license. ® ® Page 12 of 24... -
Page 13: Installation
Installation Connecting the LA10 system Recommended cable length between the SMPS and the actuator: • Min. 1.8 m • Max. 5 m Shorter cable: The system may not work correctly, or it may behave in an unexpected way. Longer cable: Voltage drop causing the system to run slower. - Page 14 3. Connect the actuators using the connection cable. 4. Connect the Charging Point CP001/002 to one of the actuators and connect the power cable. (To mount the system into the recliner, simply take the power cable out of the charging point.) Page 14 of 24...
-
Page 15: Mounting The Charging Point Cp002
5. Connect the power cable to the power supply. Mounting the Charging Point CP002 No screws are needed to mount the charging point. 1. From the front, simply push the charging point through a hole in the fabric. From the back, click the ring on and tighten until the charging point is properly fixed. -
Page 16: Mounting The Bp12 Bracket
Mounting the BP12 bracket The bracket consists of four parts. A screwdriver and four screws are needed for mounting the bracket. Screw specifications: Countersunk 45°, flat head, max. ø3.5 mm. 1. Use four screws to mount the main part of the bracket on the recliner. 2. -
Page 17: Initialising The System
Pairing the remote When connecting the system to power, it will automatically be in pairing mode for three minutes. The pairing mode stops when a paired remote sends a command. 1. Press the two upper buttons of the control unit to pair it with the system. If you need to get the system into pairing mode, unplug the system, wait for 10 seconds, and plug the power cable back in. -
Page 18: Disposal Of Linak's Products
Disposal of LINAK’s products As LINAK’s customers often ask us how our products can be disposed of or scrapped we have prepared this guidance that enables a classification to different waste fractions for recycling or combustion. Guidance We recommend that our products be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 19: Labels
Labels Label for LA10 Label for BP12 Label for BLE2DC Page 19 of 24... -
Page 20: Drawings
DRAWING APPENDIX Linear Actuator LA10 Page 20 of 24... - Page 21 Bluetooth dongle BLE2DC ® 67.5 11.4 Control Unit BP12 Page 21 of 24...
- Page 22 Bracket for BP12 Page 22 of 24...
- Page 23 LINAK customer using any LINAK product. LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question.
-
Page 24: Addresses
® without prior notice. LINAK cannot guarantee product availability and reserves the right to discontinue the sale of any product. The user is responsible for determining the suitability of LINAK products for a specific application. All sales are subject to the ‘Standard Terms of Sale and Delivery’, available on LINAK websites.
