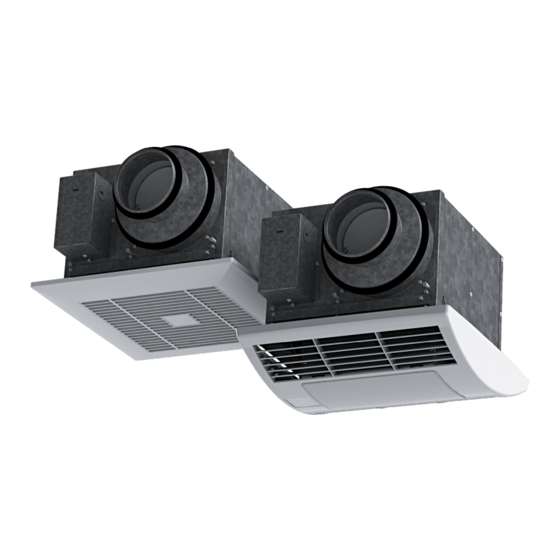

Centrifugal ceiling fan

Advertisement

Quick Links

Centrifugal Ceiling fan
Ceileo DC 110 Т/H/IR
Ceileo DC 110 Light Т/H/IR
Ceileo DC 150 Т/H/IR
Ceileo DC 150 Light Т/H/IR
EN
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ceileo DC 110 T and is the answer not in the manual?

Questions and answers

Summary of Contents for BLAUBERG Ventilatoren Ceileo DC 110 T

  • Page 1 Centrifugal Ceiling fan Ceileo DC 110 Т/H/IR Ceileo DC 110 Light Т/H/IR Ceileo DC 150 Т/H/IR Ceileo DC 150 Light Т/H/IR USER’S MANUAL...
  • Page 2: Table Of Contents

    Ceileo DC www.blaubergventilatoren.de CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Design and operating principle ............................6 Mounting and set-up .................................. 7 Connection to power mains ..............................10 Control .........................................
  • Page 3 Ceileo DC www.blaubergventilatoren.de Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it. The information in this user’s manual was correct at the time of the document’s preparation.
  • Page 4: Purpose

    Ceileo DC www.blaubergventilatoren.de PURPOSE The centrifugal ceiling extract fan Ceileo DC is designed for extract ventilation of small to medium-sized premises. The unit is rated for continuous operation. Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials, coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust, pathogenic germs).
  • Page 5: Technical Data

    Ceileo DC www.blaubergventilatoren.de TECHNICAL DATA The unit is designed for indoor application at ambient temperature from +1 °C up to +40 °C. Ingress protection rating against access to hazardous parts and water ingress is IP2X. The unit is rated as a class I electric appliance. The unit design is constantly being improved, so some models may be slightly different from those ones described in this manual.
  • Page 6: Design And Operating Principle

    Ceileo DC www.blaubergventilatoren.de TECHNICAL DATA Ceileo 110 DC T/H/IR Ceileo 150 DC T/H/IR PARAMETER Ceileo 110 DC Light T/H/IR Ceileo 150 DC Light T/H/IR Frequency [Hz] 50/60 50/60 Supply voltage, [V] 100-240 100-240 Fan power consumption [W] Lamp power [W]* 2 х...
  • Page 7: Mounting And Set-Up

    Ceileo DC www.blaubergventilatoren.de The fan casing is made of galvanized steel. The fan casing includes an exhaust spigot with a back draft damper to prevent back air flow. The terminal box comprises the terminals for wiring of the fan and is attached to the fan casing. The decorative grille is fixed to the casing via the springs inserted to the holders.
  • Page 8 Ceileo DC www.blaubergventilatoren.de MOUNTING STEPS 1. Attach the fan to the interjoist using the screws. 2. Connect the fan of a required diameter. 3. Connect the LED lamps (included in the delivery set) for the Light models. Option: connect the humidity sensor or the motion sensor (specially ordered accessory). For the Light models: connect the power socket of the LED lamp and the respective sockets in the terminal box.
  • Page 9 Ceileo DC www.blaubergventilatoren.de BASIC FAN INSTALLATION OPTIONS Installation Side fixation Fixation between between the ceiling joists to one of the ceiling joists the ceiling joists using the mounting brackets Additional fastening holes in the fan casing may be used for mounting purposes...
  • Page 10: Connection To Power Mains

    Ceileo DC www.blaubergventilatoren.de CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL.
  • Page 11: Control

    Ceileo DC www.blaubergventilatoren.de CONTROL MICROPROCESSOR CONTROL UNIT WITH INDICATION The DC fan motor is operated by the microprocessor control unit. The front panel of the control unit comprises a light indicator, control buttons and two sockets for connection of the humidity sensor and motion sensor. Indicator Buttons Connection...
  • Page 12: Technical Maintenance

    Ceileo DC www.blaubergventilatoren.de SETUP OF THE OPERATION MODES : the fan is turned off. “60”, “70”, “80”, “90”, “100”, “110”, “120”, “130”, “140”, “150”: the fan runs to keep permanent air flow with set air capacity settings. The settings are displayed in CFM. The maximum air flow value is limited to 110 or 150 CFM, depending on the fan model.
  • Page 13 Ceileo DC www.blaubergventilatoren.de LAMP REPLACEMENT DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! MAKE SURE THE UNIT IS DISCONNECTED FROM POWER MAINS BEFORE REMOVING THE PROTECTION 1. Remove the decorative grille: • Pull the grille to release the springs from the holders on the casing. •...
  • Page 14: Storage And Transportation Regulations

    Ceileo DC www.blaubergventilatoren.de TROUBLES AND TROUBLESHOOTING TROUBLE POSSIBLE REASONS TROUBLESHOOTING Check the electric connections and the operation status of the No power supply. circuit breaker. The fan does not get started. Turn the fan off. Troubleshoot clogging of the impeller. Restart Motor jam.
  • Page 15: Manufacturer's Warranty

    Ceileo DC www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC.
  • Page 16 Ceileo DC www.blaubergventilatoren.de...
  • Page 17 Ceileo DC www.blaubergventilatoren.de...
  • Page 18 Ceileo DC www.blaubergventilatoren.de...
  • Page 19: Certificate Of Acceptance

    Ceileo DC www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Centrifugal ceiling fan Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 20 www.blaubergventilatoren.de B166EN-02...

This manual is also suitable for:

Ceileo dc 110 hCeileo dc 110 irCeileo dc 110 light tCeileo dc 110 light hCeileo dc 110 light irCeileo dc 150 t ... Show all
