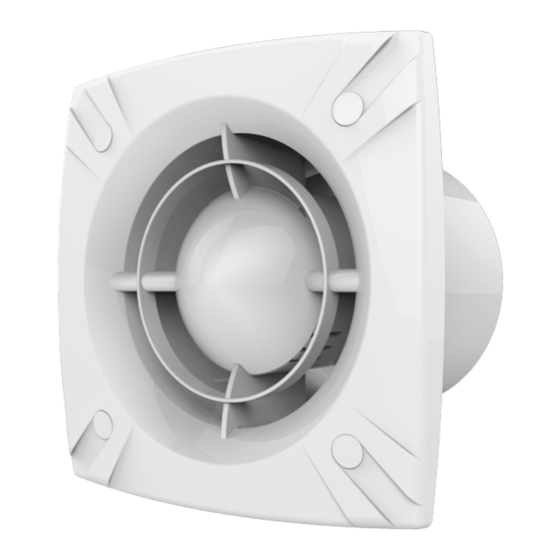

- Page 1 AXIAL FAN Slim USER’S MANUAL...
-
Page 2: Table Of Contents
CONTENTS Delivery set ................................................6 Brief description ..............................................6 Operation guidelines ............................................6 Designation key ..............................................7 Installation and set-up............................................. 8 Electronics operation algorithm ......................................8 Fan setup ................................................. 9 Technical maintenance ........................................... 10 Storage and transportation regulations ....................................10 Manufacturer’s warranty .......................................... - Page 3 This user’s manual is a main operating document intended for technical, maintenance, and operating staff. The manual contains information about purpose, technical details, operating principle, design, and installation of the Slim unit and all its modifications. Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country.
- Page 4 FOLLOW THE USER’S MANUAL REQUIREMENTS TO ENSURE DURABLE AND TROUBLE-FREE OPERATION OF THE UNIT. Disconnect the unit from power supply prior to any connection, servicing, maintenance, and repair operations. Only qualified electricians with a work permit for electrical units up to 1000 V are allowed for installation and maintenance.
- Page 5 equipment to prevent back drafting. Transported air must not contain any dust or other solid impurities, sticky substances, or fibrous materials. • Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. • Do not close or block the intake or extract vents in order to ensure the efficient air flow. •...
-
Page 6: Delivery Set
DELIVERY SET - 1 pc. Screws with dowels - 4 pcs. Plastic screwdriver - 1 pc. (only for the models with a timer) User’s manual - 1 pc. Packing box - 1 pc. BRIEF DESCRIPTION The unit described herein is an axial fan for exhaust ventilation of small to medium-sized premises heated during winter. It is designed for wall or ceiling mounting (Fig. -
Page 7: Designation Key
DESIGNATION KEY Slim Voltage: 12: motor with 12 V/50 Hz rated voltage Differences from the base model: e2: the motor is equipped with rolling bearings. without check valve Additional options: S: pull cord switch T: turn-on and turn-off delay timer... -
Page 8: Installation And Set-Up
INSTALLATION AND SET-UP The fan is designed for wall or ceiling mounting with direct air exhaust to the ventilation shaft or into the round air duct of matching diameter (Fig. 2). Fan installation sequence: step 1. Cut off power supply and make sure electricity has been turned off (Fig. 6). step 2. -
Page 9: Fan Setup
THE TIMER CIRCUIT IS LIVE. MAKE SURE THE FAN IS DISCONNECTED FROM POWER SUPPLY. FAN SETUP — to adjust the humidity set point, turn the control knob H clockwise to increase and counter-clockwise to decrease the humidity sensor set point, adjustable from 60 % up to 90 %. —... -
Page 10: Technical Maintenance
TECHNICAL MAINTENANCE The fan maintenance periodicity is at least once per 6 months. Maintenance steps: • Disconnect the fan from power supply and make sure electricity has been turned off (Fig. 17). • Remove the front and the decorative panels, wipe the fan with a dry cloth or a brush (Fig. 18). •... -
Page 11: Manufacturer's Warranty
MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/EU and CE-marking Directive 93/68/EEC. This certificate is issued following test carried out on samples of the product referred to above. - Page 12 • Replacement and use of any assemblies, parts and components not approved by the manufacturer. • Unit misuse. • Violation of the unit installation regulations by the user. • Violation of the unit control regulations by the user. • Unit connection to power mains with a voltage different from the one stated in the user's manual. •...
- Page 13 Dimensions [mm] Weight Model [kg] Slim100 150 120 111 100 15.7 0.53 Slim 125 176 140 115 125 14.5 Slim 150 205 165 165 150 0.85...
- Page 16 Fan does not run Contact of the S switch or the pull cord switch is CLOSED Fan runs Slim 100/125/150 S Contact of the S switch or the pull cord switch is OPENED Slim 100/125/150 T Fan does not run...
- Page 17 Slim 100/125/150 H Slim 100/125/150 SH Fan does not run Contact of the S switch or the pull cord switch is CLOSED Humidity exceeds set point Fan runs Contact of the S switch or the pull cord switch is OPENED...
- Page 19 Quality Inspector’s Stamp Sold by (name and stamp of the seller) Manufacture Date Purchase Date...
- Page 20 Slim www.blaubergventilatoren.de B174-1EN-01 Slim...
