Summary of Contents for Digitus DN-10190

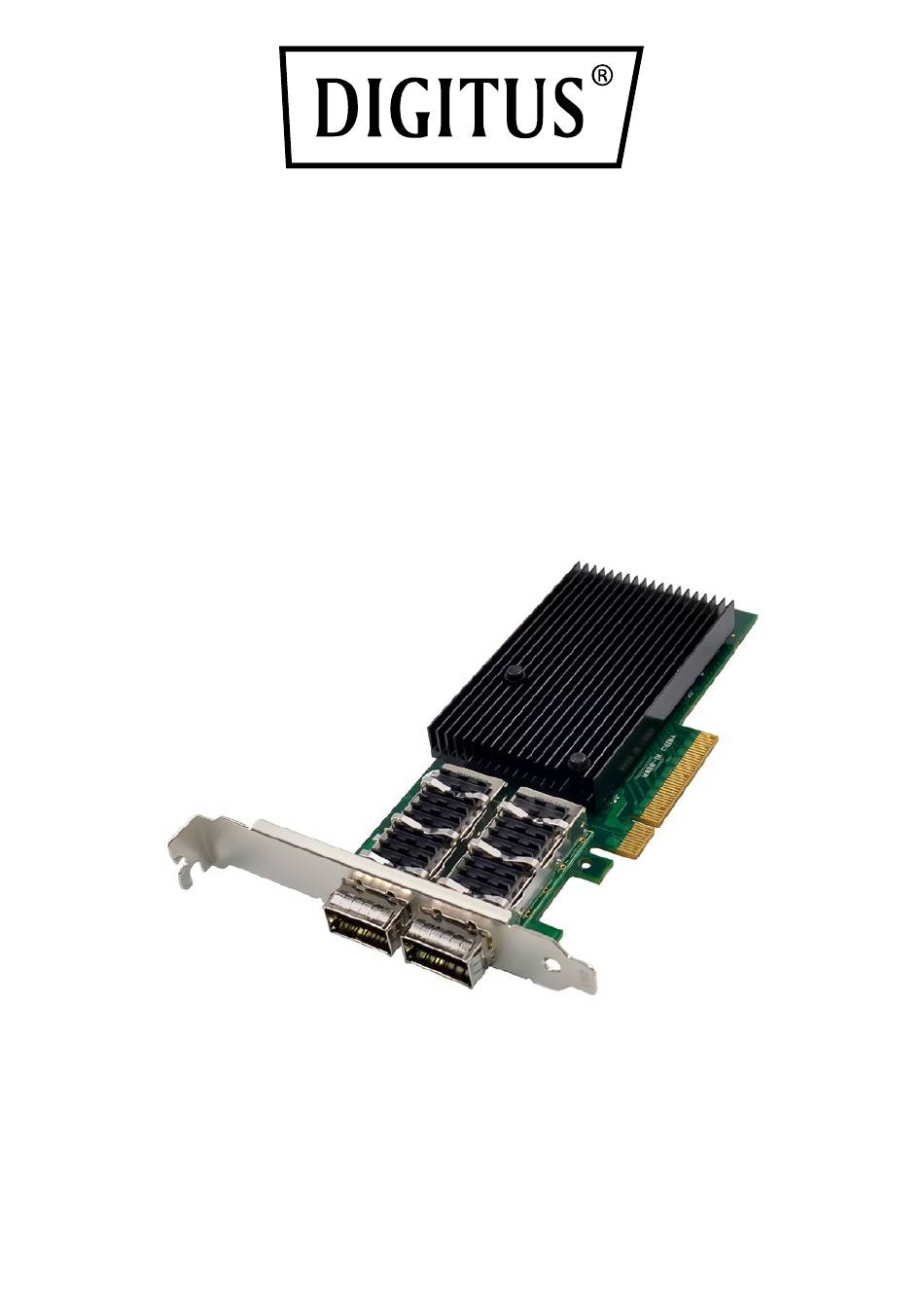

- Page 1 Dual-Port 40G QSFP Adapter Quick Installation Guide DN-10190...
-
Page 2: Table Of Contents
5. Hardware Installation ............5 6. Install Drivers and Software ..........5 1. Introduction The DN-10190 Dual-Port 40G QSFP adapter with PCI Express 3.0 and x8 Mellanox Connectx-3 technic delivers high-bandwidth and industry-leading Ethernet connectivity and is compliant with PCIe2.0 and 1.1. -
Page 3: Package Contents
win8.1/ win10 32 or 64bit. It also supports CORE-Direct○,R application off-load, GPUDirect application off-load, RDMA over converged Ethernet (RoCE), end-to-end QoS and congestion control, TCP/UDP/IP stateless off-load, Ethernet encapsulation (EoIB), SR-IOV support (16 virtual functions supported by KVM and Hyper-V(OS dependant) up to a maximum 127 virtual functions supported by the adapter), and traffic steering across multiple cores, making it a versatile adapter suitable for a wide range of applications. -
Page 4: System Requirements
GPU Direct application off-load. • RDMA over converged Ethernet (RoCE) • End-to-End QoS and congestion control • TCP/UDP/IP stateless off-load. • Ethernet encapsulation (EoIB) • SR-IOV support;16 virtual functions supported by KVM and • Hyper-V (OS dependant) up to a maximum 127 virtual functions supports by the adapter. -
Page 5: Hardware Installation
5. Hardware Installation 1. Turn Off the power to your computer. 2. Unplug the power cord and remove your computer’s cover. 3. Remove the slot bracket from an available PCIe x4/x8/X16 slot. 4. To install the card, carefully align the card’s bus connector with the selected PCIe slot on the motherboard. - Page 6 Function controller MELLANOX ConnectX-3 10Gbase-cx4, 10Gbase-R, Fibre Media and 1000Base-R, 40Gbase-R4 10Gbase-cx4, 10Gbase-R, Fiber type and 1000Base-R, 40Gbase-R4 Connect type PCIE3.0 X8 Windows8.1 Windows10（1909,1809,1607） Windows Server2003/2003 R2 Windows Server2008/2008 R2 Windows Server2012/R2 Windows Server2016/R2 Ubuntu 14.04 or later Sles12 sp2 or later REHL/CentOS7.2 or later Oracle Linux 7.8 or later KYLIN 10...
- Page 7 IEEE 802.3ae 10 GbE IEEE 802.3ba 40 GbE (all three FDR adapters) IEEE 802.3ad Link Aggregation IEEE 802.3az Energy Efficient Ethernet IEEE 802.1Q, .1P VLAN tags and priority IEEE 802.1Qbg standards IEEE P802.1Qaz D0.2 Enhanced Transmission Selection (ETS) IEEE P802.1Qbb D1.0 Priority-based Flow Control IEEE 1588v2 Precision Clock Synchronization...
- Page 8 Hereby ASSMANN Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
