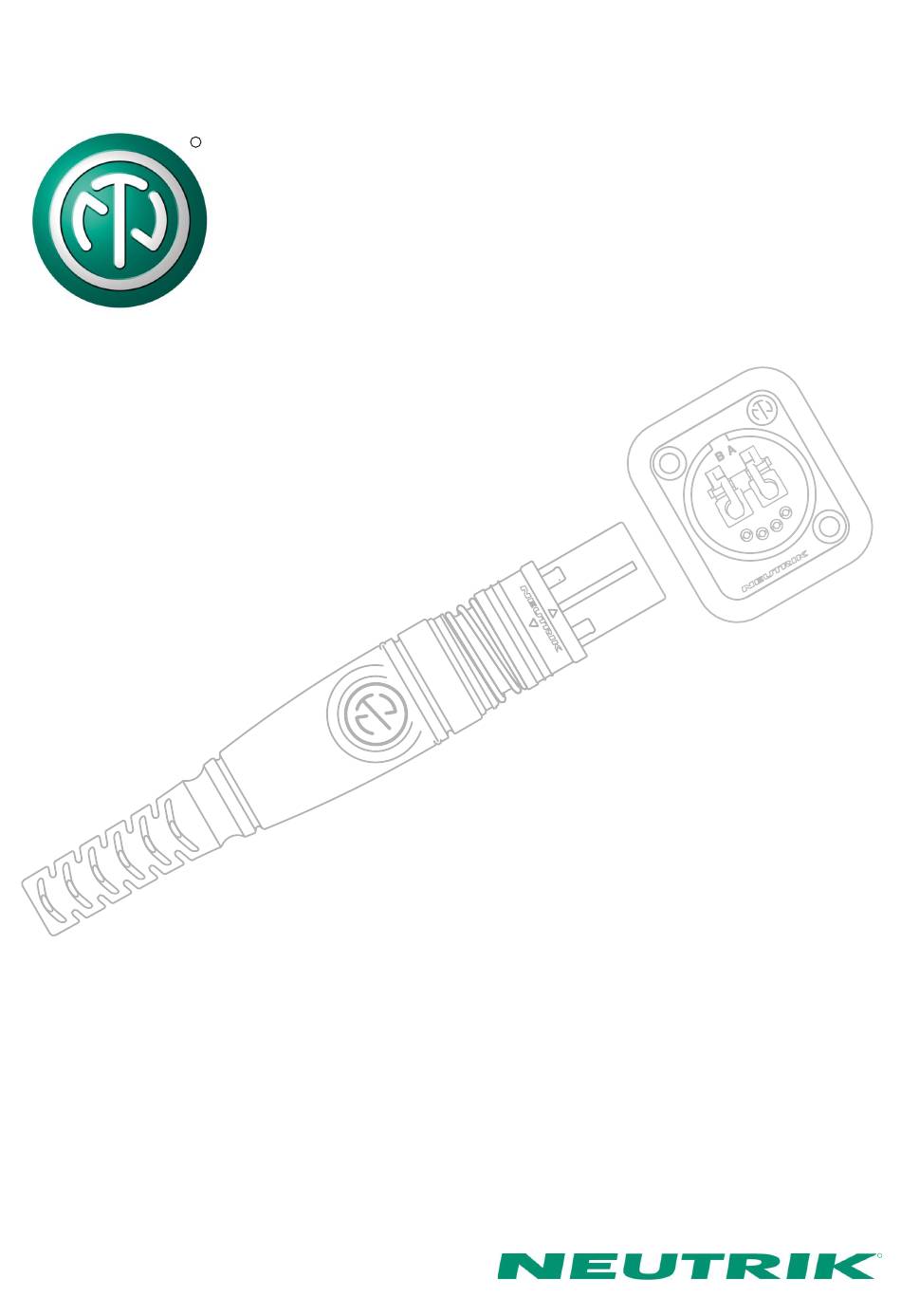

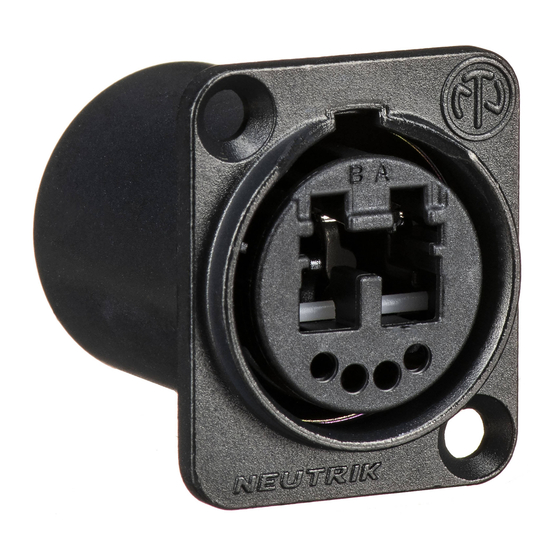

- Page 1 HANDLING INSTRUCTION opticalCON DUO ® Maintenance www.neutrik.com BDA 520...
-
Page 2: Handling Instruction
Do not stare into beams or view directly with optical instruments. Remove dust cap from the connector (A) and mount NEUTRIK FOCD-STD inspection tool on it until it is locked (B). Service tool (FOCD-STD) LC tip Prepare the optical fiber video probe with the correlate tip (C). - Page 3 DUO ® HANDLING INSTRUCTION Insert the video probe tool into our NEUTRIK FOCD- STD service tool (D). To inspect the LC ferrule surface focus the video probe by rotating the focus wheel (E). Clean the LC surface with the Dry Cleaner 1.25 mm over the NEUTRIK DUO service tool.
- Page 4 DUO ® HANDLING INSTRUCTION After the cleaning procedure unlock the NEUTRIK inspection tool (G). Wet cleaning using lint-free wipes Press forward the twist prevention and untight the connector bushing and remove carefully the insert of the connector housing. Inspect the LC connectors with a video probe tool.
- Page 5 F: +91 / 22 26163 540 Draft. Nr.: BDA 520 V2 Update: 2020-01-07 Data subject to change without prior notice. © 2020 NEUTRIK . NEUTRIK are registered trademark of Neutrik AG. ALL RIGHTS RESERVED. ® ® www.neutrik.com - 5 -...
