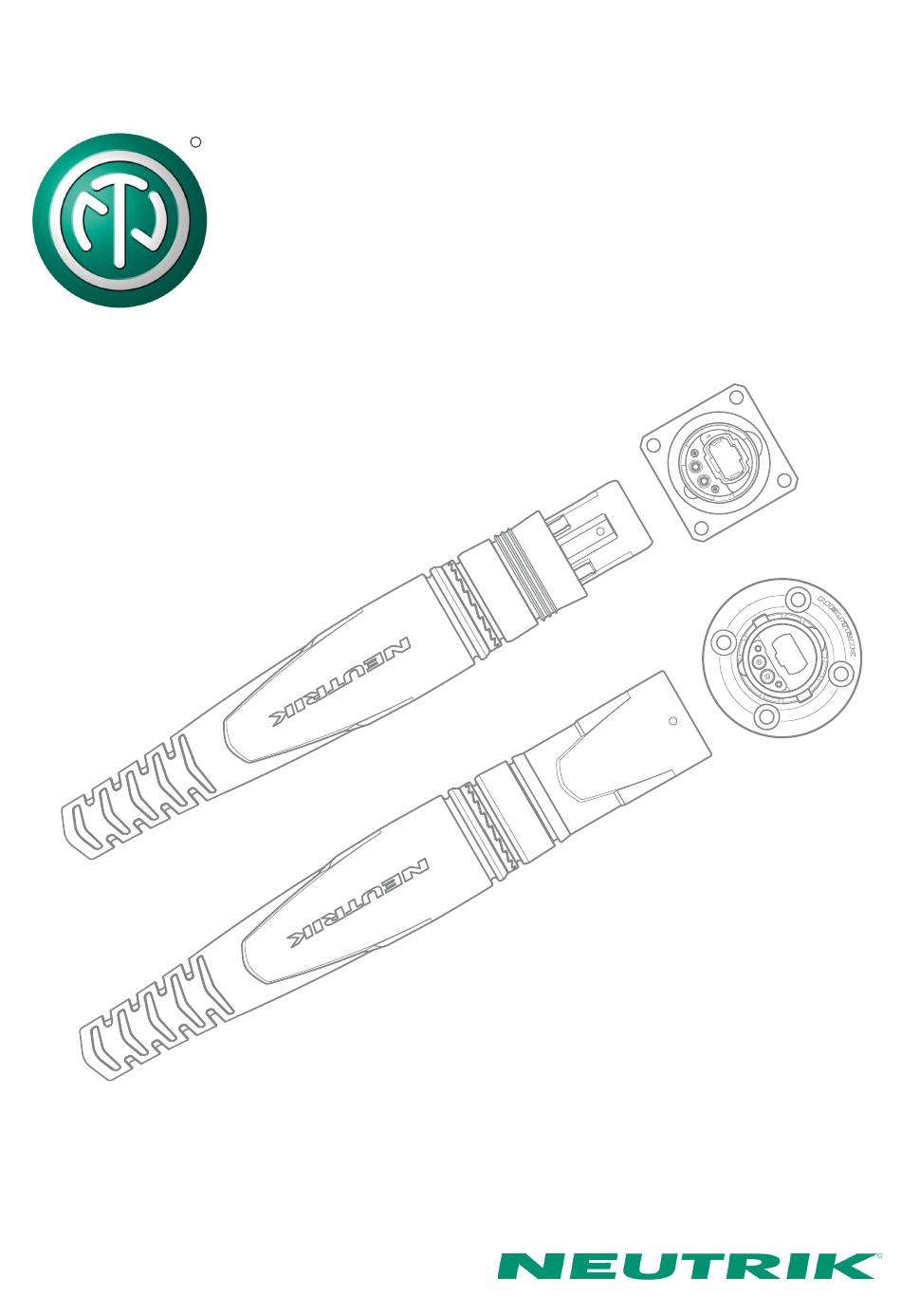

- Page 1 HANDLING INSTRUCTION opticalCON DRAGONFLY ® Chassis Connector www.neutrik.com BDA 567...
- Page 2 DRAGONFLY ® HANDLING INSTRUCTION CAUTION: Laser radiation, do not look directly into beam of light! CAUTION: To avoid the risk of electric shock. Always disconnect the connector from the power source. Chassis Connector Preparation Male Chassis Pull of the strain relief boot of the XB2 connector and slide it slightly to the back.
- Page 3 DRAGONFLY ® HANDLING INSTRUCTION Female Chassis Connect the XB2 female connector from the back into the female chassis. Attention! Check the correct keying position. KEY UP Chassis Connector Cleaning / Inspection Ÿ Tools: 99% isopropyl alcohol (IPA) or cleaning fluid (FOCD-CF) or distilled water Ÿ...
- Page 4 T: +91 / 982 05 43 424 F: +91 / 22 26163 540 Draft. Nr.: BDA 567 Update: 30.07.2019 Data subject to change without prior notice. © 2019 NEUTRIK . NEUTRIK are registered trademark of NEUTRI AG. ALL RIGHTS RESERVED. ® ® www.neutrik.com Page 4...
