INSTALLING THE INDOOR UNIT

1.1

DESCRIPTION OF THE PRODUCT.

Magis Combo 4-6-9 Plus V2 is a hybrid heat pump consisting of:
- Magis Combo Plus V2 indoor unit;
- Audax Pro 4-6-9 V2 outdoor condensing unit.
Magis Combo 4-6-9 Plus V2 is perfectly operational only if the
two units are correctly powered and interconnected.
The Magis Combo Plus V2 indoor unit was designed solely for
wall mounted installation for heating and air conditioning and to
produce domestic hot water for domestic use and similar purpos-
es (if paired with an outdoor storage tank).
For normal operation is must be paired with the following out-
door units:
- Audax Pro 4 V2 outdoor condensing unit;
- Audax Pro 6 V2 outdoor condensing unit;
- Audax Pro 9 V2 outdoor condensing unit;
Accordingly it is necessary to comply with all of the rules regard-
ing safety and the use of both appliances.
1.2

INSTALLATION WARNINGS

Operators who install and service the ap-
pliance must wear the personal protec-
tive equipment required by applicable
law.
The place of installation of the appliance and relative
Immergas accessories must have suitable features (tech-
nical and structural), such as to allow for (always in safe,
efficient and comfortable conditions):
- installation (according to the provisions of technical
legislation and technical regulations);
- maintenance operations (including scheduled, peri-
odic, routine and special maintenance);
- removal (to outdoors in the place for loading and
transporting the appliances and components) as well
as the eventual replacement of those with appliances
and/or equivalent components.
By varying the type of installation the classification of
the indoor unit also varies, precisely:
- Type B o B indoor unit if installed using the rele-
23 53
vant terminal for air intake directly from the room in
which the boiler has been installed.
- Type C indoor unit if installed using concentric pipes
or other types of pipes envisioned for the sealed cham-
ber boiler for intake of air and expulsion of flue gas.
Only a professionally enabled company is authorised to
install Immergas appliances.

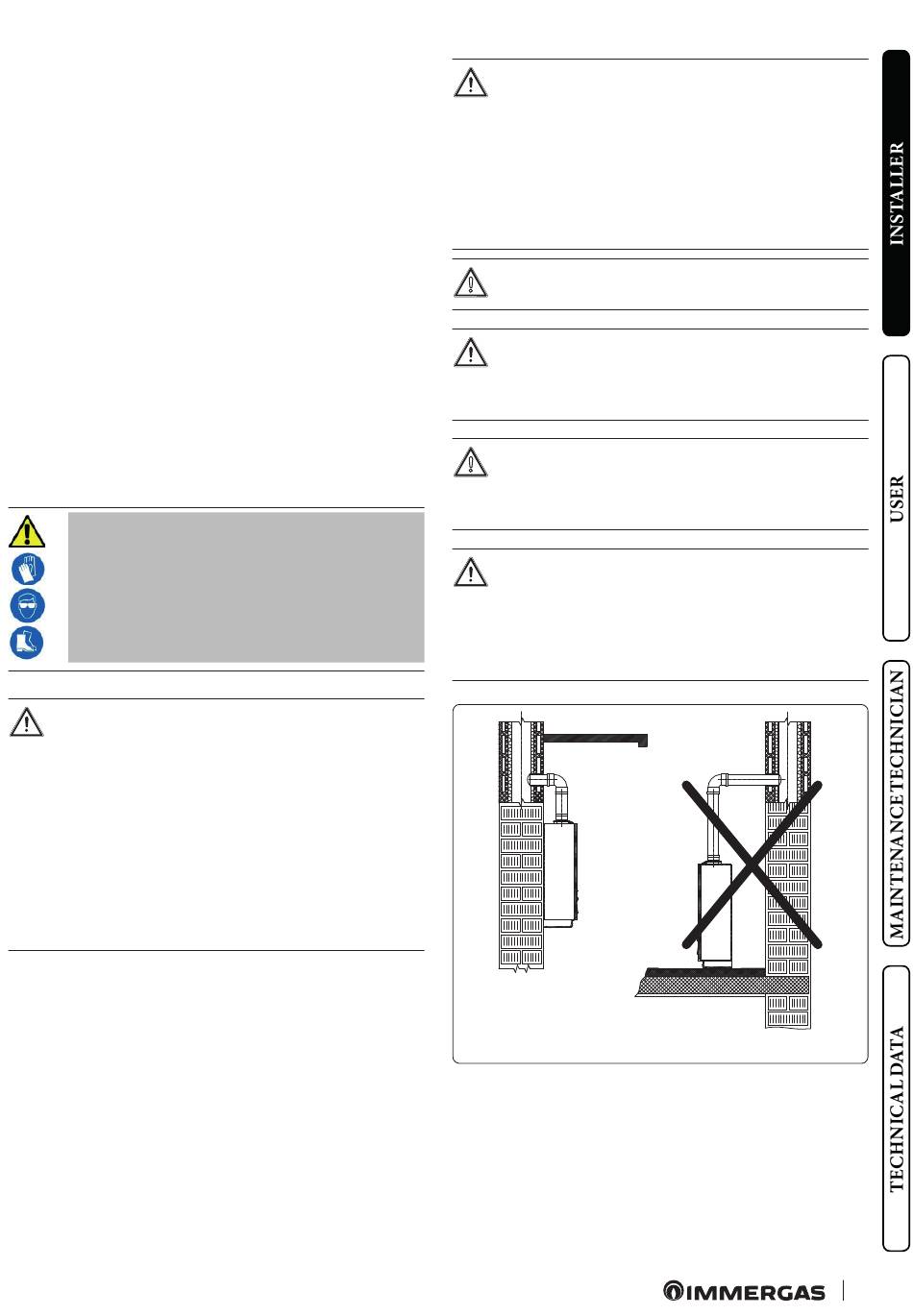

The wall surface must be smooth, without any protru-
sions or recesses enabling access to the rear part. They
are not designed to be installed on plinths or floors
(Fig. 1).
Installation must be carried out according to regulation
standards, current legislation and in compliance with
local technical regulations and the required technical
procedures.
It is forbidden to install appliances removed from other
systems.
The manufacturer declines all liability in the event of
damage caused by appliances removed from other sys-
tems or for any non-conformities with such equipment.
OK
