1.6 INSTALLATION INSIDE THE RECESSED
FRAME (OPTIONAL)
The Magis Combo Plus indoor unit is set-up for installation inside
the following optional kits:
- Solar Container Combo
- Super Trio Container
- Domus Container Super trio
The necessary parts for this type of installation (brackets) must
also be purchased separately as optional kit.
The images referring to the procedure are relative to the
Solar Container Combo kit but the illustrated procedure
is also identical for Container Super Trio and Domus
Container Super Trio.

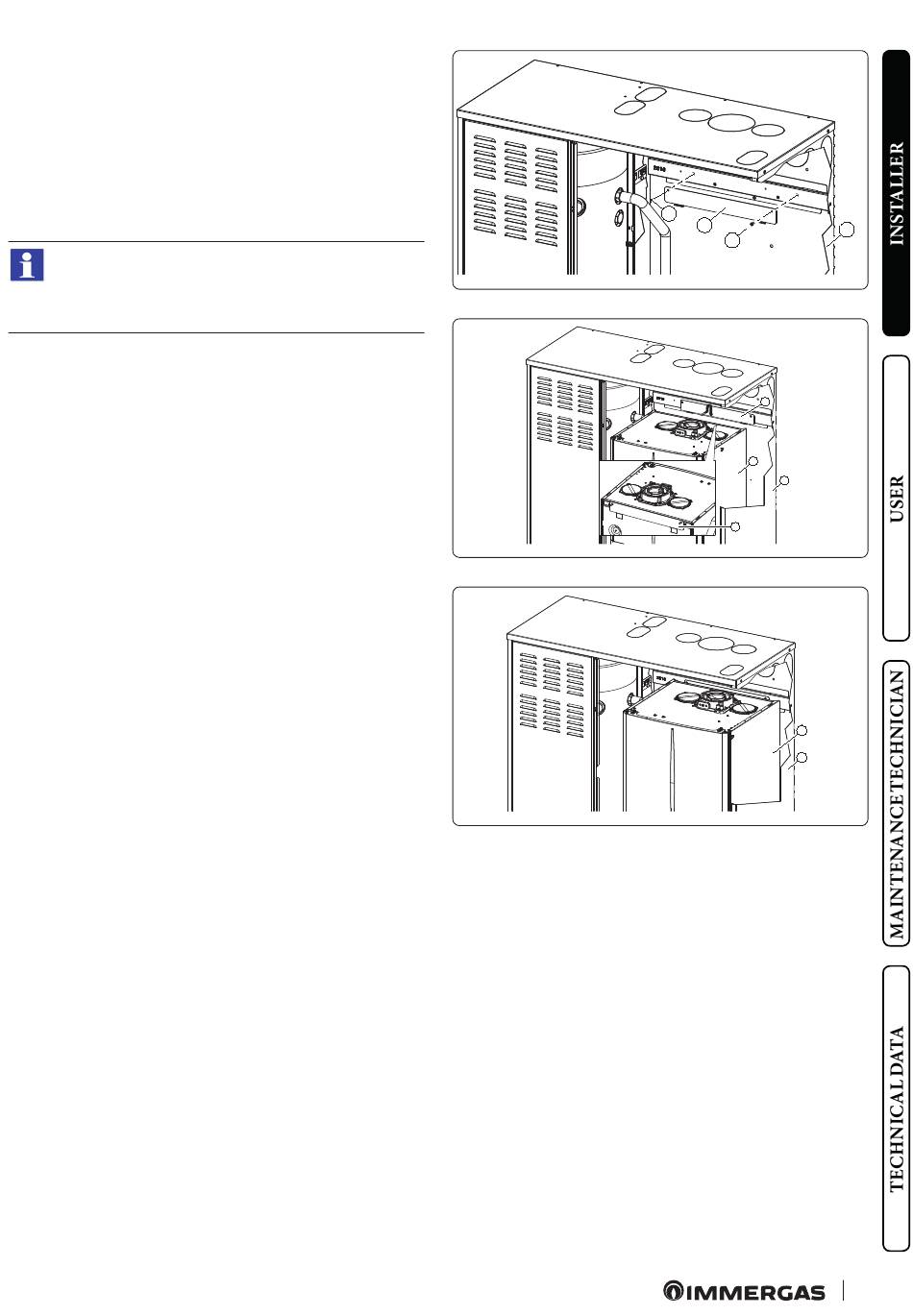

To install proceed as follows:
1. Install the bracket (2) inside the recessed frame fixing it with
the screws (3) in the pre-drilled holes (Fig. 4);
2. Hang the indoor unit (4) from the bracket (2) (Fig. 5);
3. The indoor unit (4) is thus installed inside the recessed frame
(1) (Fig. 6).
3
2
3
2
4
1
2
4
1
1
4
5
6
