Extensions for separator kit Ø 80/80
The maximum vertical straight length (without bends) that can be
used for Ø 80 intake and exhaust pipes is 41 metres, regardless
from whether they are used for intake or exhaust.
The maximum horizontal straight length (with bend in suction
and in exhaust) that can be used for Ø 80 intake and exhaust pipes
is 36 metres, regardless from whether they are used for intake or
exhaust.
Please note the type of installation C
draught flue.
To favour the removal of possible condensate forming in
the exhaust pipe, tilt the pipes towards the indoor unit
with a minimum slope of 1.5% (Fig. 36)

1.25 C9 ADAPTOR KIT INSTALLATION

This kit allows an Immergas indoor unit to be installed in "C
configuration, with combustion air intake directly from the shaft
where the flue gas exhaust is, obtained by means of a ducting sys-
tem.
System composition
The system must be combined with the following components
(sold separately) to be functional and complete:
- kit C Ø 100 or Ø 125 version;
93
- rigid ducting Ø 60 and Ø 80 and flexible Ø 50 and Ø 80 kit;
- flue exhaust kit Ø 60/100 or Ø 80/125 configured according to
the installation and type of indoor unit.
C
34
must be done with a natural
43
93
S
Mounting the C adapter kit (Fig. 38)
9
(Version Ø 125 only) before assembly check the gaskets
are in the right position.
In the event component lubrication (already carried out
by the manufacturer) is not sufficient, remove the resid-
ual lubricant using a dry cloth, then to ease fitting coat
the parts with common or industrial talc.
To favour the removal of possible condensate forming in
the exhaust pipe, tilt the pipes towards the indoor unit
with a minimum slope of 1.5% (Fig. 36)
1. Mount the components of kit "C
ing system (Fig. 38).
2. (Version Ø 125 only) mount the flanged adaptor (11) interpos-
ing the concentric gasket (10) on the indoor unit, fitting it with
the screws (12).
"
3. Mount the ducting system as described in the relative instruc-
tions sheet.
4. Calculate the distances between the indoor unit drain and the
bend of the ducting system.
5. Prepare the boiler flue system, making sure that the internal
pipe of the concentric kit is fitted up to the end stop in the duct-
ing system curve (Height "X" Fig. 39), whereas the external
pipe must reach the end stop of the adapter (1).
6. Mount the cover (A) complete with adaptor (1) and caps (6) on
the wall.
7. Assemble the flue system to the ducting system.
Once all components have been assembled properly, the exhaust
fumes will be expelled via the ducting system; the combustion air
for normal indoor unit operation will be aspirated directly by the
shaft (Fig. 39).
A
" on the door (A) of the duct-
9

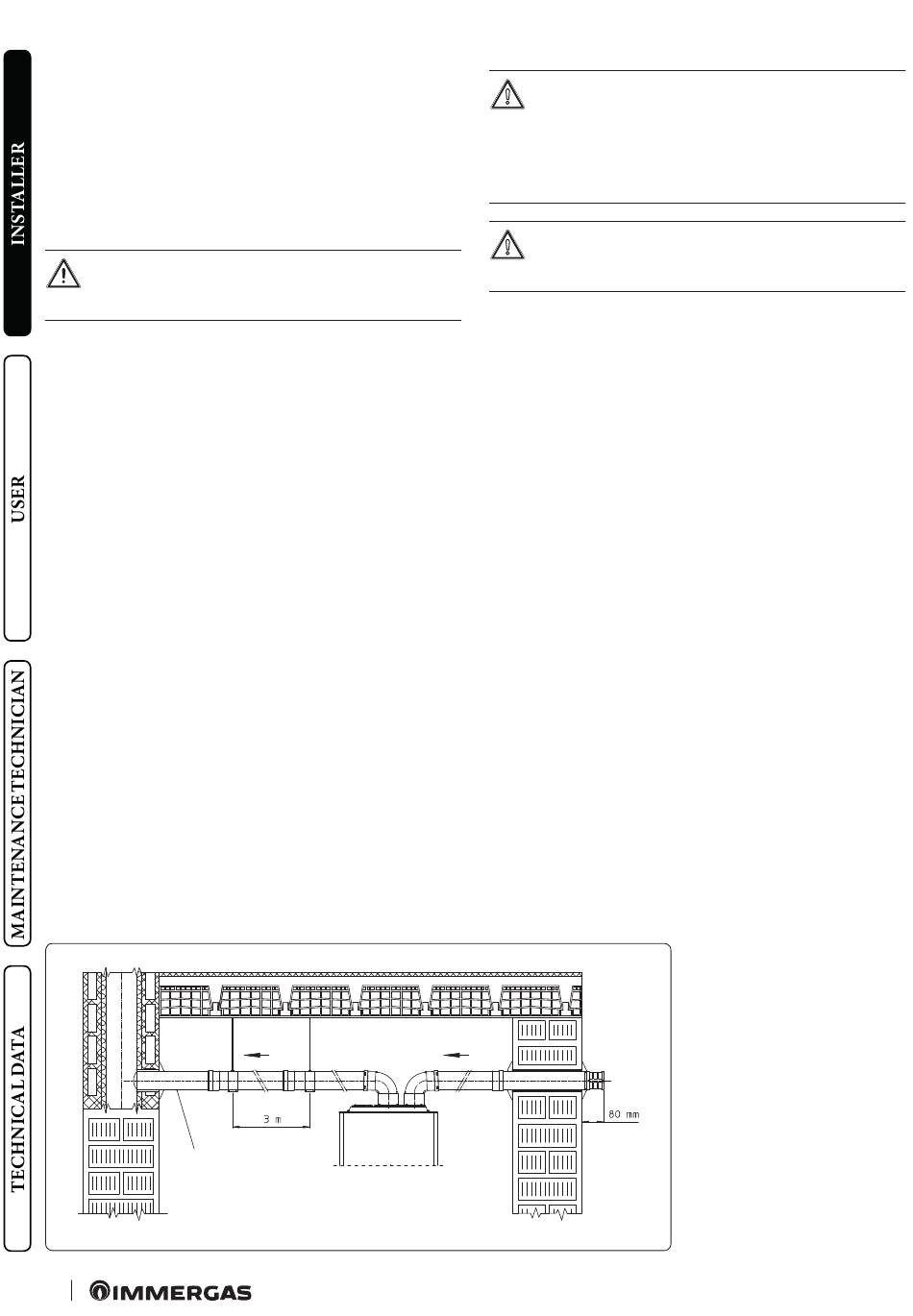

Key (Fig. 36):
C
83
A - Intake
C - Minimum slope 1.5%
S - Exhaust
36
