3.31 CASING REMOVAL

To facilitate indoor unit maintenance the casing can be complete-
ly removed as follows:

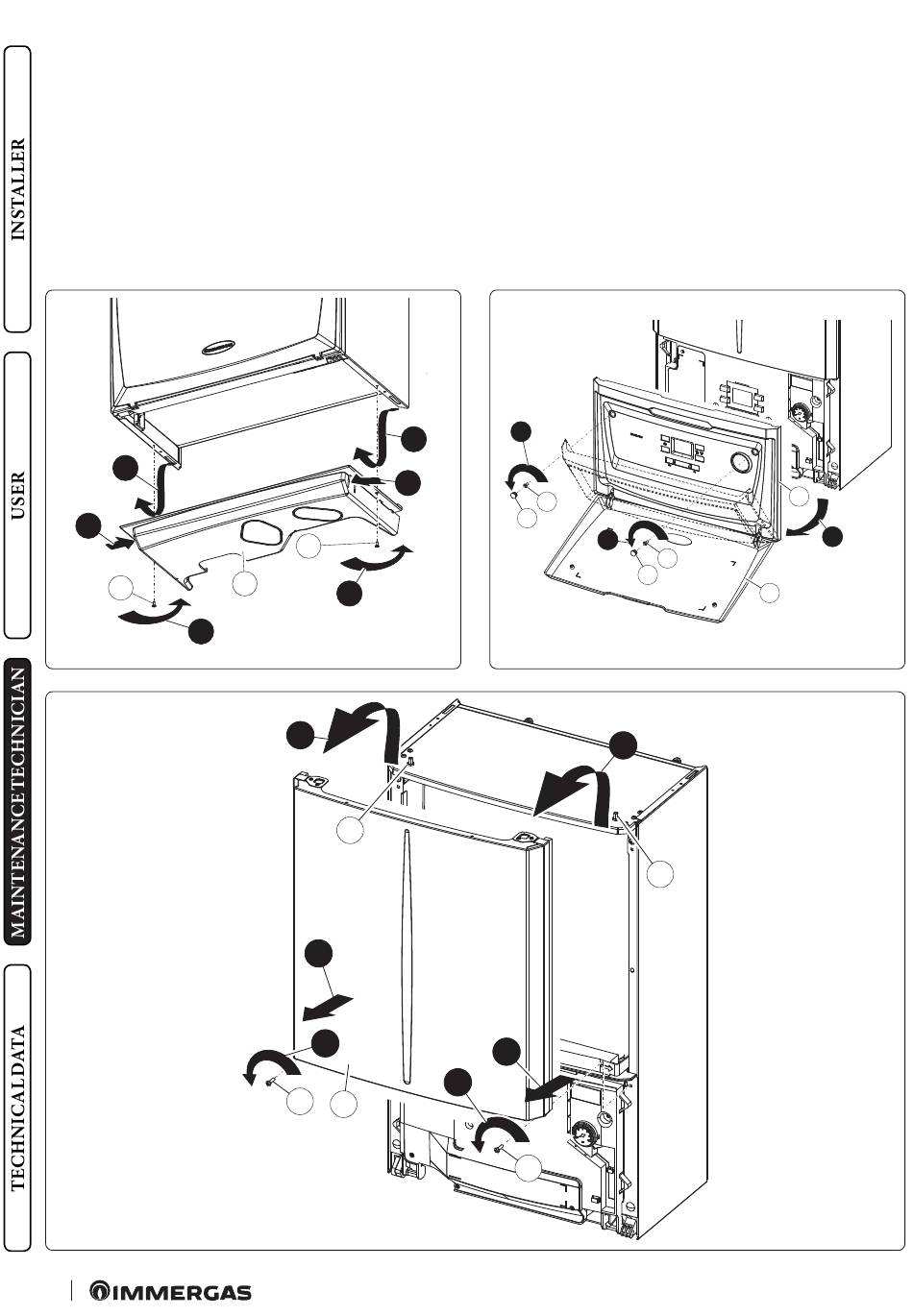

Lower grid (Fig. 69)
- Loosen the two screws (a).
- Press the hooks inwards, which block the lower grid (b).
- Remove the grid (b).
3
2
a
1
88
3
2
a
b
1
8
h
7
6
g
f
Front panel (Fig. 70)
- Open the protection door (e1) pulling it towards you.
- Remove the cover caps (c) and loosen screws (d).
- Pull the front panel (e) towards you and release it from its lower
seat.
Front (Fig. 71)
- Loosen the two screws (g).
- Pull the front (f) slightly towards you.
- Release front (f) from pins (h) pulling it towards you while
pushing it upwards at the same time.
