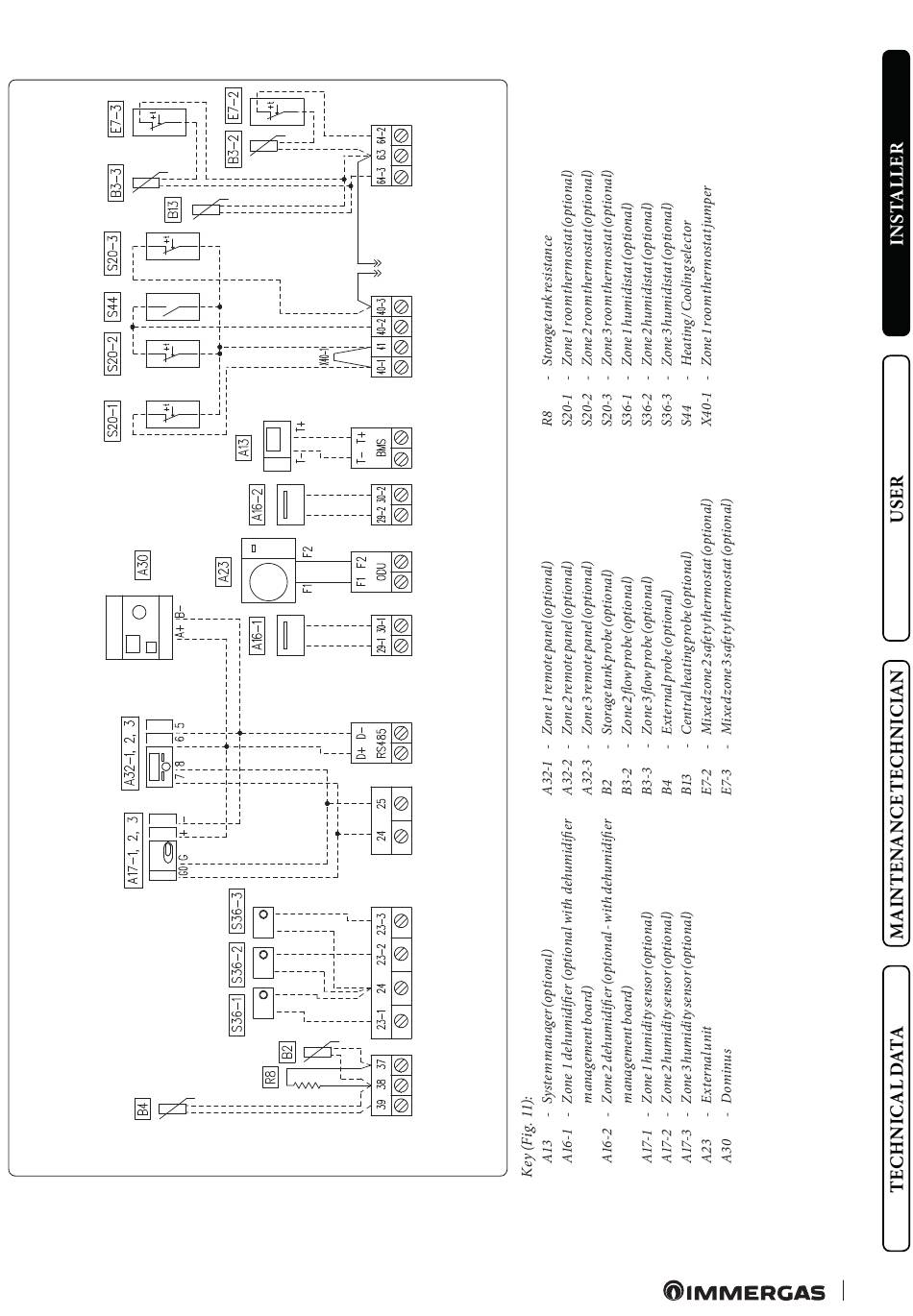

Electrical connection diagram (very low voltage).

A16-1 and A16-2 dehumidifiers can be connected only after in-

stalling 2-relay board (optional).

Remove jumper X40-1 before the electrical connection of the

room thermostat zone 1.
