Installation of Ceiling Sensor (ICS-55)
The ideal mounting location is in the center of the room's ceiling. The ideal installation is flush mounted on
a white, reflective ceiling like the acoustic drop-down style. This will ensure 360º coverage and will
minimize the transmission distance for more reliable performance.

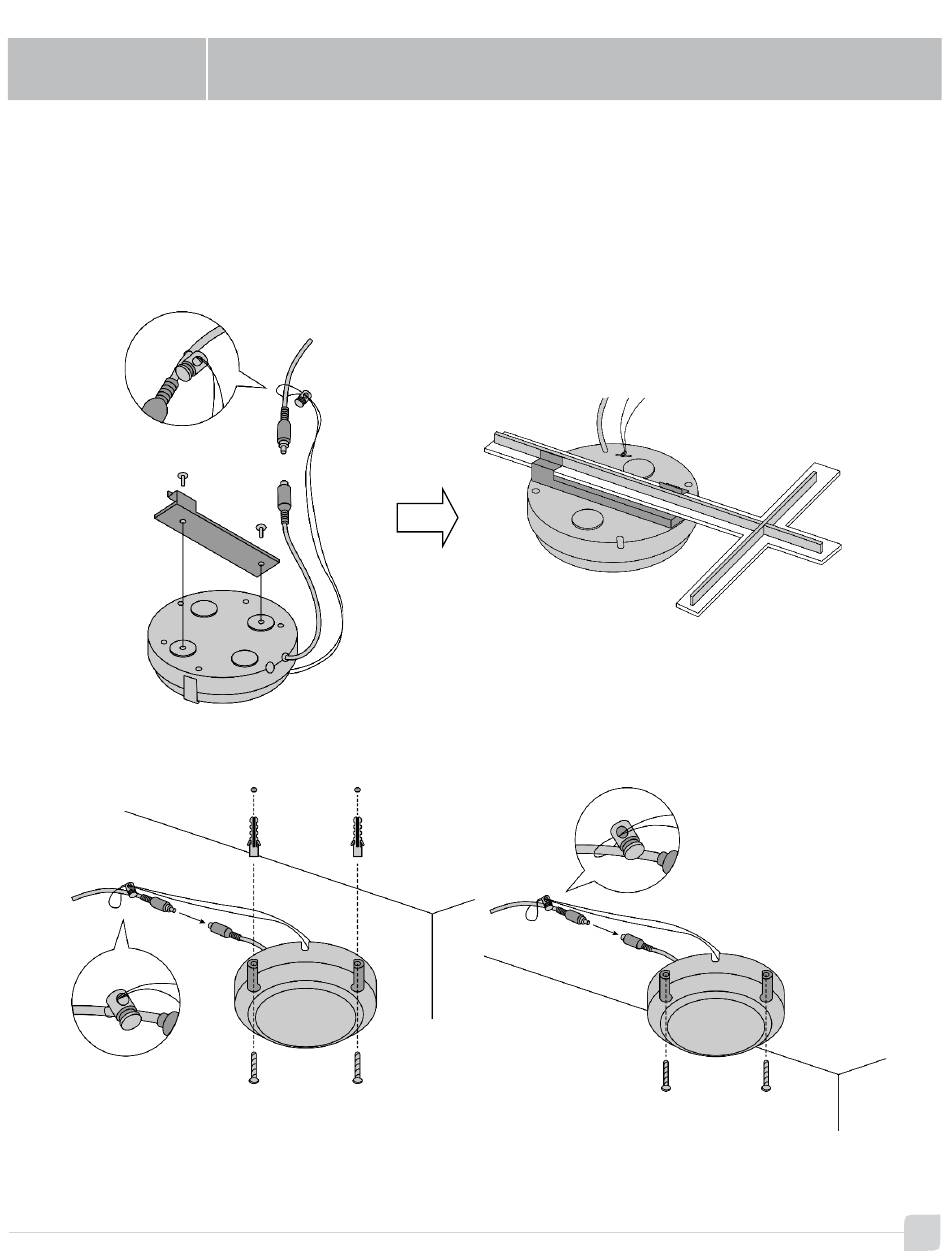

Installation 1 – Attach to T-bar tail
Installation 2 – Concrete or Drywall Surface
Installation 3 – Wood Surface
FINAL STEP: Route sensor cable to amplifier and plug into one of the amplifier's two sensor inputs. An
illuminated green LED will indicate that the sensor is receiving power from the amplifier.
