Connection of speakers
The IMA-520 has two channels of amplified audio, rated for a minimum 4-ohm speaker load (two 8-ohm
speakers each). There are two blue phoenix style speaker connectors on the back panel, each providing
two pairs of speaker terminals. The top connector provides connection to both channels as does the

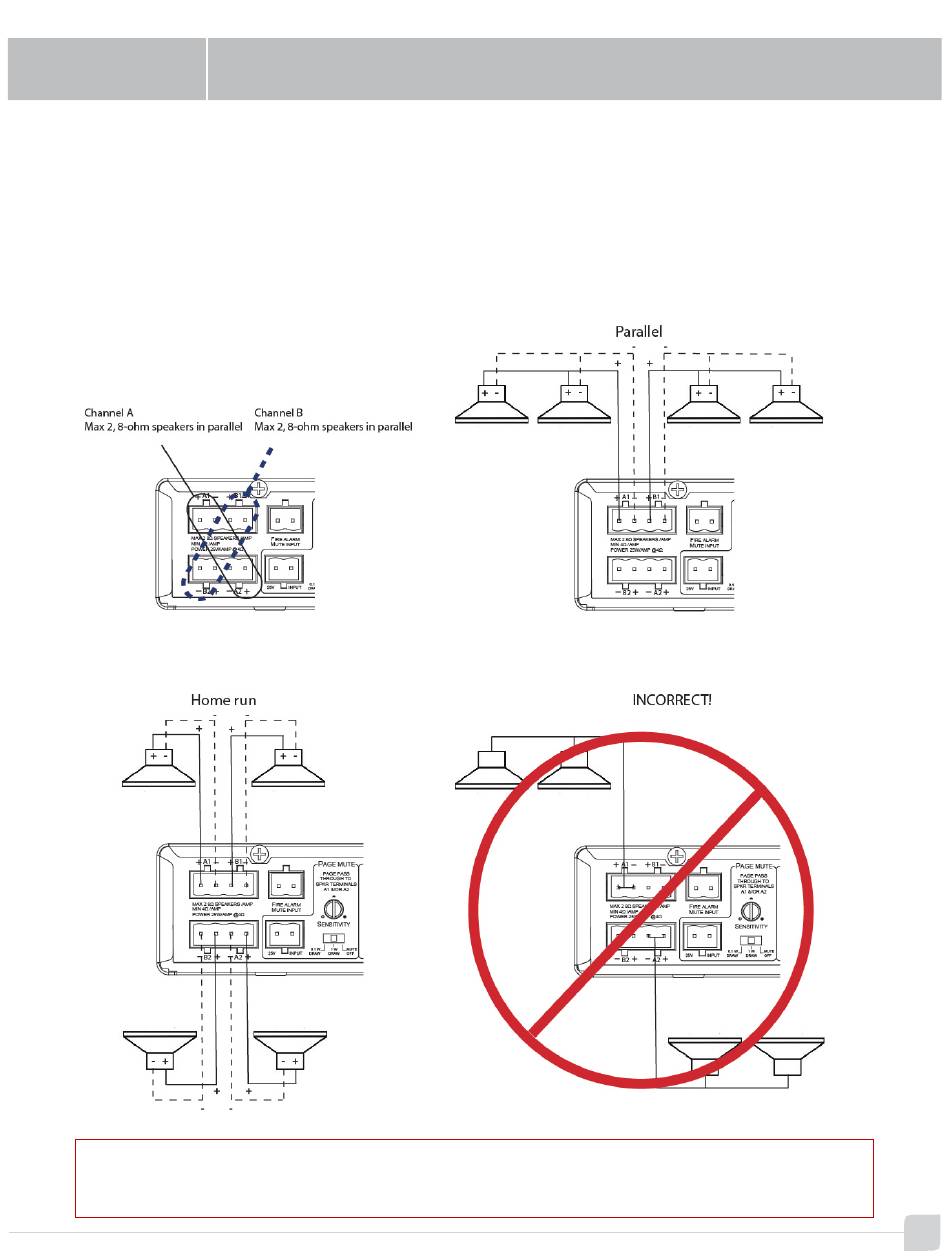

bottom connector. Each is wired in parallel to the other as shown below. These are the acceptable wiring
methods. For speaker installation instructions, please refer to the installation manual included in the
speaker packaging.
ADVISORY: The speaker terminals A1 and A2 are internally wired in parallel. DO NOT connect more than two
8-ohm speakers to either or both terminals such that the total load is less than 4 ohms. The same hold true for
B1 and B2.
