Installation of Infrared (IR) Ceiling Sensor (ICS-55)
The ideal mounting location is in the center of the room's ceiling. The ideal installation is flush mounted on
a white, reflective ceiling like suspended acoustic ceiling tiles. This will ensure 360º coverage and will
minimize the transmission distance for more reliable performance.
For additional coverage, or in large rooms, a second IR sensor may be placed on ceiling or a wall and
connected to the second sensor input. As many as three sensors may be powered by the amplifier (use a
wye adapter for two of them to connect to one input). The max cable length is 100 ft.

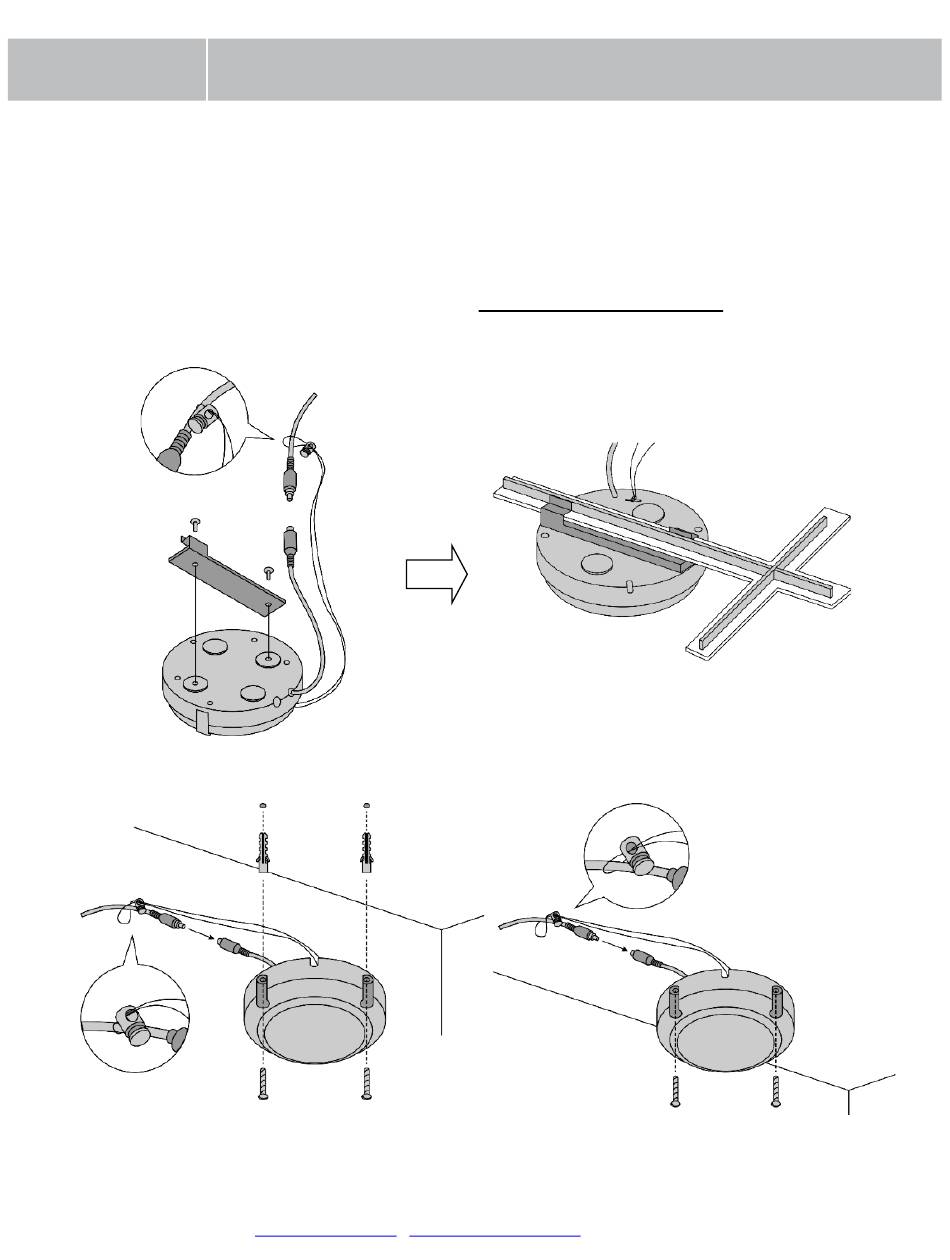

Installation 1 – Attach to T-bar rail
Installation 2 – Concrete or Drywall Surface
FINAL STEP: Route sensor cable to amplifier and plug into one of the amplifier's two sensor inputs. An
illuminated green LED will indicate that the sensor is receiving power from the amplifier.
Ceiling Sensor Installation
www.teachlogic.com | support@teachlogic.com
Installation 3 – Wood Surface
