Fire Alarm Mute Input

Maxim

III

™

Fire Alarm Mute Input

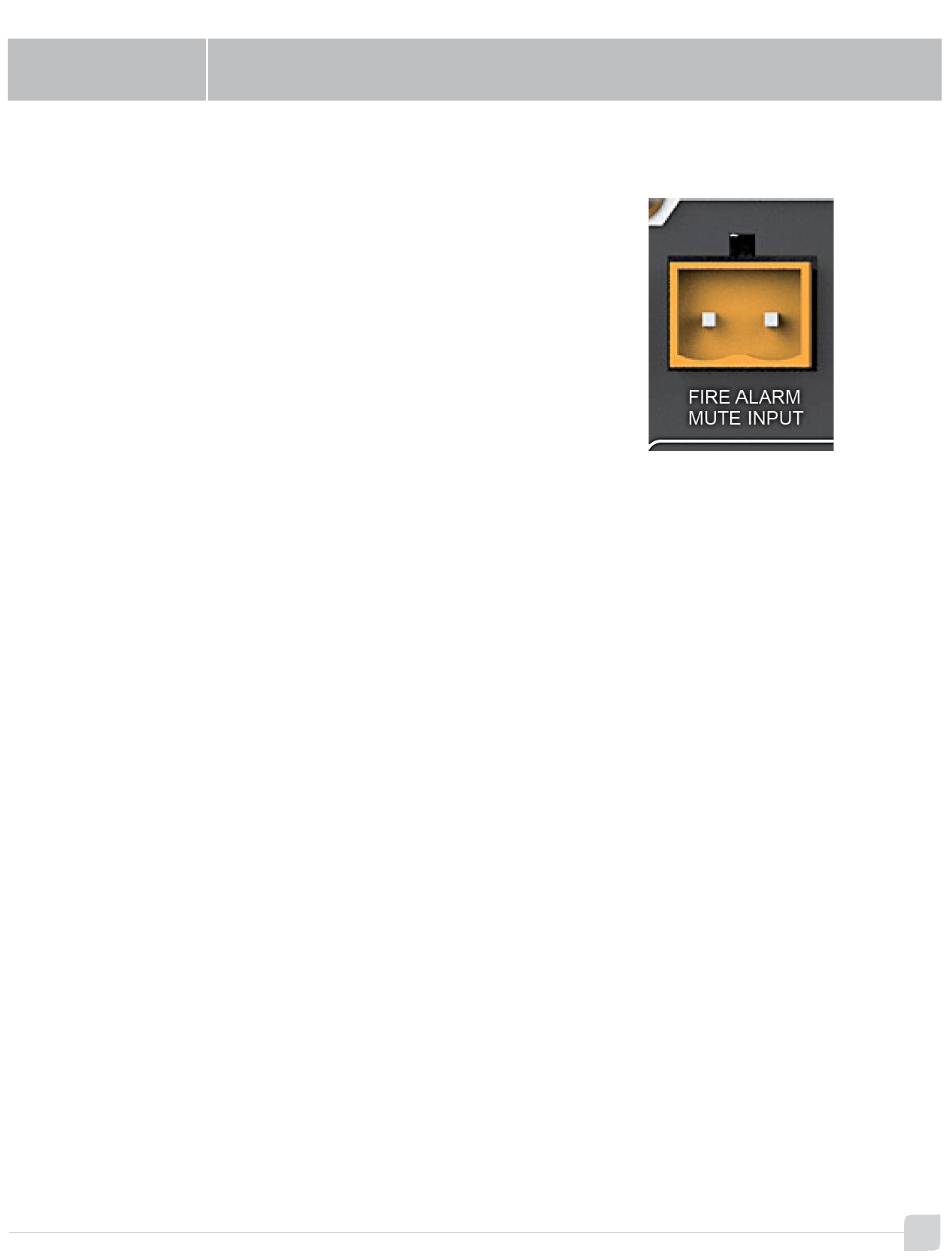

The 2-pin orange Phoenix connector labelled Fire Alarm

provides an emergency mute of the TeachLogic amplifier.

When interfaced to the fire alarm panel relay contact output,

all audio inputs (microphones, DVD, etc.) will MUTE. In the

event of a fire, this will help to lower the overall decibel levels

and help students and staff hear the audible fire alarm tones/

instruction within the classroom.

This feature requires a contact closure from the Fire Alarm

Panel and the TeachLogic terminal is for a normally open

connection.

When there is continuity between the terminals (closed

condition) muting will occur and will continue for 10-15

seconds after contacts are open.
